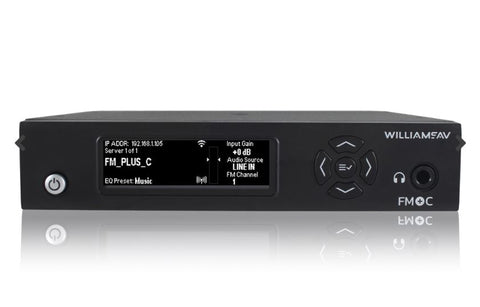

Williams Sound FM T55CD-00 FM+ C Assistive Listening System with Dante

Williams Sound FM T55CD-00 FM+ C Assistive Listening System with Dante

Name: Williams Sound FM T55CD-00 FM+ C Assistive Listening System with Dante
Brand: Williams Sound
SKU: FM T55CD-00
Price: 1725.00 USD
Availability: InStock

Vendor: Williams Sound

Williams Sound FM T55CD-00 FM+ C Assistive Listening System with Dante The FM+ C with Dante is a groundbreaking transmitter, combining FM and Wi-Fi audio broadcasting from a single input source. Ideal for...

$1,725.00

Subtotal:

Quantity

Description

Williams Sound FM T55CD-00 FM+ C Assistive Listening System with Dante

The FM+ C with Dante is a groundbreaking transmitter, combining FM and Wi-Fi audio broadcasting from a single input source. Ideal for assistive listening, language interpretation, or audio description, its dual broadcast technology allows users to tune in using an FM receiver or stream real-time audio on their smartphone or tablet via the free WaveCAST app (available for iOS and Android). With integrated support for Telnet commands through its Ethernet port, the FM+ C enables AV professionals to seamlessly control and monitor the system using third-party room control platforms. This version further enhances functionality with Dante compatibility, ensuring robust and flexible audio networking capabilities.

NOTE: The FCC requires this device to be used with approved, FCC 15.203 compliant antennas and be professionally installed. For compliant antennas for this product, refer to Williams AV’s Antenna Selection Install Guide.

Specifications

Dimensions

8.45″ W x 8.25″ D x 1.72″H (21.5 cm x 21 cm x 4.4 cm)

Weight

Transmitter: 3.2 lbs (1.45 kg)

Color

Black

Rack Mount

Standard 19” Rack, one EIA rack space high, 1/2 space wide
1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits

Power Supply

Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector

Power ON Indicator

Push On/Push Off latching power button with backlight. Green backlight indicates power ON, backlight off indicates power OFF.

Temperature Range

Operating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C)

User Interface

1. 3.12” High Resolution OLED display with selections via buttons. 2. Hosted Web page. 3. Telnet commands over ethernet (see our WaveCAST and FM+ Programmers Guide” for available commands and protocol).

Dante

(1x) RJ-45 jack. Only available on FM T55C D

Ethernet

RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address. RJ-45 jack used for web page and streaming audio out. An external Router/DHCP Server is required to stream audio to receiving devices.

RF Section

Operating Frequencies

72.1-75.9 MHz , 17 wideband channels (selectable)

Frequency Accuracy

± 2 ppm stability, 0-50˚ C

Deviation

± 75 kHz maximum

Pre-Emphasis

75 microsec

RF Field Strength

Does not exceed 80 mV/m at 3 m

Compatible Antennas

ANT 005, ANT 021, ANT 024, ANT 025, ANT 028, ANT 029, ANT 034

Refer to Williams AV’s Antenna Selection Install Guide for FCC-compliant antennas for this product.

Transmission Range

Up to 1000 ft (304 m) with ANT 005 coaxial antenna mounted on rear chassis F-connector

RF Outputs

(1x) #10-32 stud connector in center of unit (pcb mounted)
(1x) F-connector on rear chassis

RF Transmit (RF) Power Indicator

1 OLED On Air Indicator with 4 states indicating power level Off, Low, Medium, and Full Power.

RF Time Out (sleep mode)

30 min. duration, 4 hr. duration, or Always On; selected via web page. When audio drops below -18dB, the selected duration begins, and when it expires the unit stops transmitting and goes into a low-power (“sleep”) mode. Any button press or resumption of audio above -18dB “awakens” the unit and it begins transmitting again.

Audio Section

Audio Inputs

(1x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power. Optional RJ-45 Dante Input (“D” models only).

Audio Processor Functions

DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control, Music, Voice, and Hearing Assistance Audio Presets

Frequency Response

31-16000 Hz, ±3 dB (re: 1 kHz) (“Music” Audio Preset)

Signal-to-Noise Ratio

64 dB (typical) Transmitted RF @ 1kHz

Total Harmonic Distortion

Less than 0.25% @ 1 kHz (RF output)

Common Mode Rejection

Greater than 57 dB @ 1 kHz, Mic or Line mode

Audio Input Gain Adjust

Adjustable from +24dB to -60 dB, in 1dB steps from front screen or web page

Phantom Power

14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4″ TRS jack

Audio Level Display

Front screen bar graph display, each segment representing 3dB. It ranges from -18 (1 segment lit) to +12dB (10 segments lit). Over-range warning is indicated by ‘OLVD’ and flashing empty bar.

Headphone Output

1/4″ TRS stereo jack, mono signal, 7.8 mW total power with 33 Ω.

Dante Output

(1x) RJ-45 jack

Input Level (Bal or Unbal) (at Audio Input Gain = 0dB)

Nominal (@7th Segment Lit)

Overload Warning (Displayed on Screen)

Absolute Max. Rating*

Microphone

-45 dBV (5.6 mV RMS)

-20 dBV (100 mV RMS)

+20 dBV (10.0 V RMS)

Line

-8.4 dBV (380 mV RMS)

+16 dBV (6.5 V RMS)

+20 dBV (10.0 V RMS)

Approvals

FCC, RoHS3, WEEE, Industry Canada

Warranty

2-year warranty against component failure and manufacturing defects. See the Full Warranty statement on the website for details.* Stresses above these ratings may cause permanent damage or degrade reliability.
