Williams Sound IR M1 IR+ Control Center

Name: Williams Sound IR M1 IR+ Control Center
Brand: Williams Sound
SKU: IR M1
Price: 2945.00 USD
Availability: InStock

Vendor: Williams Sound

Williams Sound IR M1 IR+ Control Center The IR+ Control Center delivers a flexible dual-audio solution, enabling venues to transmit audio via either Wi-Fi or Infrared. Its scalable design supports a distributed infrared...

$2,945.00

Subtotal:

Quantity

Description

Williams Sound IR M1 IR+ Control Center

The IR+ Control Center delivers a flexible dual-audio solution, enabling venues to transmit audio via either Wi-Fi or Infrared. Its scalable design supports a distributed infrared emitter array architecture, accommodating up to four emitters. These emitters can be stacked to create large room arrays or strategically positioned throughout the venue to address diverse layouts, such as wings, balconies, or other concealed spaces, ensuring comprehensive coverage and optimal audio delivery.

Specifications

Dimensions:	19” (W) x 1.75” (H) x 8.2” (D) (48.3 cm x 4.5 cm x 20.8 cm)
Weight:	5.2lb. (2.4 kg)
Color:	Black
Rack Mount:	Single Rack Unit
Power Supply:	International Desktop Supply Input: 36 W, 110-240 VAC 50-60 Hz Output: +48VDC, 0.75A center-positive
Power Switch:	Rocker switch with LED
Signal to Noise Ratio:	67 dB (typical)
Modulation:	FM Wideband, +50kHz deviation, 50uS pre-emphasis
Carrier Frequency:	Selectable, 2.3/2.8 or 3.3/3.8MHz
Frequency Response:	40 to 16,000Hz, +1 dB, -3dB, electrical response
Total Harmonic Distortion:	Less than 2%, electrical response
Audio Processor Functions:	DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
Auto Carrier Shut-Off:	Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.

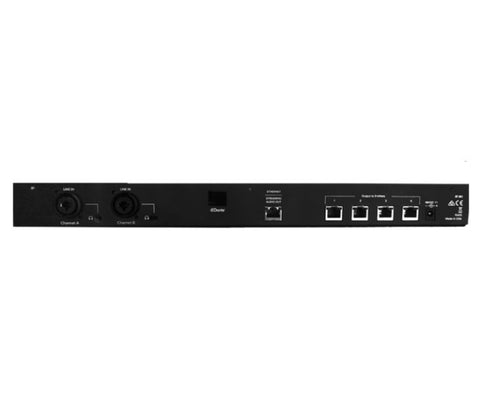

Audio Input:	(2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
Dante:	Optional
Internal Test Tone:	400 Hz internal test tone selectable as audio input source for setup and diagnostics
Remote Configuration:	Available through embedded website
Headphone Output:	(2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs
Emitter Output Jack:	Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
Operating requirements:	0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Approvals:	CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty:	2 years on Modulator, 90 days on accessories
