Chauvet EPIX STRIP TOUR, Control: 4-pin XLR Requires Epix Drive 900, ratio of 1 drive to 18 Strips

Chauvet EPIX STRIP TOUR,  Control: 4-pin XLR Requires Epix Drive 900, ratio of 1 drive to 18 Strips

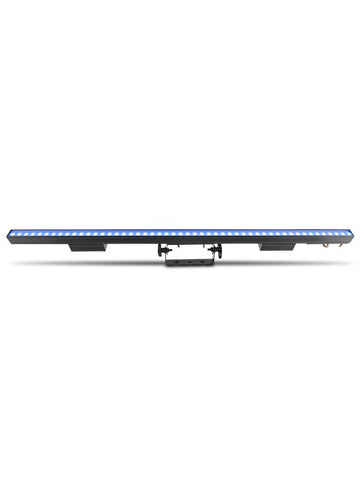

Chauvet EPIX STRIP TOUR is a pixel-mapping 1-meter LED strip, featuring 50 LEDs in a row and a 125º viewing angle. Chauvet EPIX STRIP TOUR has a Power and control it through the ÉPIX Drive 900 on Art-Net, Kling-Net, or sACN (streaming ACN).

Chauvet EPIX STRIP TOUR Product Features

• Pixel-mapping 1-meter 50 x 1 LED strip for showing video and/or motion graphics

• Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output

• Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets

• ÉPIX Drive 900 required for operation

OPTICAL

• Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
• Viewing Angle: 125°
• Illuminance (white frost filter installed): 1,094 NITS
• Illuminance (black stealth filter installed): 267 NITS
• Pixels: 50 x 1
• Pixel Pitch: 20 mm
• Refresh Rate: 4,700 Hz

CONSTRUCTION / PHYSICAL

• Dimensions: 39.37 x 4.72 x 1.18 in (1000 x 120 x 30 mm)
• Weight: 3.44 lb (1.56 kg)
• Exterior Color: Black
• Housing Material: Aluminum

CONNECTIONS

• Data Connectors: 4-pin XLR
• Physical Linking: 18 inline ÉPIX Strip Tour
• Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
• Total max. cable length (shielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 210 ft (64 m)
• Max. cable length (shielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 65 ft (20 m)
• Max. cable length (shielded cables) between ÉPIX Tour fixtures: 60 ft (18 m)
• Total max. cable length (unshielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 300 ft (91 m)
• Max. cable length (unshielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 150 ft (45 m)
• Max. cable length (unshielded cables) between ÉPIX Tour fixtures: 100 ft (30 m)

CONTROL

• Control Protocol: Art-Net, Kling-Net, sACN
• Control Channels: 150

ELECTRICAL

• Power and Current: 17 W, 0.14 A @ 120 V, 60 Hz
• Power and Current: 17 W, 0.08 A @ 208 V, 60 Hz
• Power and Current: 17 W, 0.07 A @ 230 V, 50 Hz

CABLE

• 4PXLREXT16IN
• 4PXLREXT5FT
• 4PXLREXT50FT

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• ÉPIX Strip Tour
• White Frost Filter

REQUIRED ACCESSORIES

• ÉPIX Drive 900

OPTIONAL ACCESSORIES

• ArKaos Media Master Express + KN software
• Clamps
• 4-pin XLR cables
