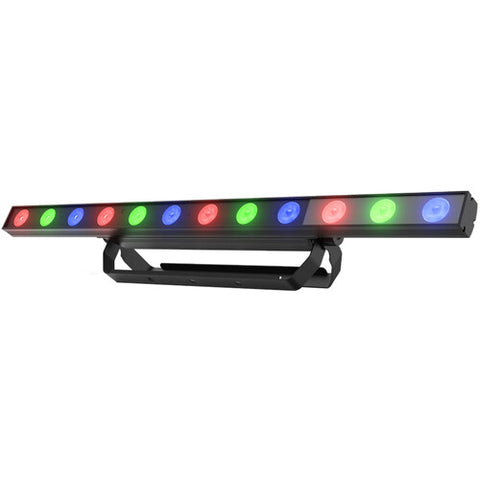

Chauvet COLORband PIX ILS LED Wash Light (RGB)

Chauvet COLORband PIX ILS LED Wash Light (RGB)

Name: Chauvet COLORband PIX ILS LED Wash Light (RGB)
Brand: Chauvet
SKU: COLORband PIX ILS
Price: 339.99 USD
Availability: InStock

Vendor: Chauvet

Chauvet COLORband PIX ILS LED Wash Light (RGB) The Chauvet DJ COLORband Pix ILS is a versatile RGB LED wash strip that functions as a pixel mapping effect, blinder, or wall-wash light, perfect...

$339.99 $453.34

Default Title

Subtotal:

Quantity

Description

Chauvet COLORband PIX ILS LED Wash Light (RGB)

The Chauvet DJ COLORband Pix ILS is a versatile RGB LED wash strip that functions as a pixel mapping effect, blinder, or wall-wash light, perfect for venues and event setups. Equipped with 12 controllable zones, it supports dynamic chase effects and offers a range of prebuilt programs, usable with or without DMX. Its tricolor LED technology enables rich color mixing, and it’s D-Fi USB compatible for wireless control. Quiet and compact, it also supports sound-activated and automated modes, with additional remote options for easy operation.

Features

Integrated Lighting System (ILS)
Full-Sized LED Strip Light
Pixel Mapping Effect, Blinder, Wall Wash
Built-In RF Receiver for Optional Remote
D-Fi USB Compatibility
Silent Operation
Flicker-Free Video Operation
Animations with Individual LED Control
Multiple Pre-Built Programs
Power Linking for Multiple Units

Specifications

Light

Fixture Type	Linear/Bar Light
Light Source	12x Color LED - 3 W / 1 A
Expected Lamp Life	50,000 Hours
Colors	Red, Green, Blue
Pixel Configuration	12x Zone
Photometrics	385 fc / 4142 Lux at 6.56' / 2 m 62 fc / 663 Lux at 16.4' / 5 m
Lumen Output	1402 Lumens
Beam Angle	14°
Field Angle	27°
Shutter / Strobe	Electronic
Dimming	0 to 100%

Performance

Operating Modes	Automatic, Color Change, DMX, Primary/Secondary, Program, Sound-Active
Macros / Programs	Color Macro 23x Auto-Program
Effects	Animated Patterns Color Strobe
Strobe Rate	0 to 20 Hz
Gobos	No

Control

Control Protocols	DMX512
DMX Channel Modes	10 Mode(s): 3 / 4 / 6 / 7 / 8 / 9 / 12 / 18 / 36 / 41-Channel
Display / Controls	LED / 4-Button
Remote Control	D-Fi USB (with Optional Equipment) IR Remote (with Optional Equipment)
Mobile App Compatible	Yes, Adapter Required (Not Included)

Connectivity

Inputs/Outputs

1 x XLR 3-Pin DMX Input
1 x XLR 5-Pin DMX Input
1 x XLR 3-Pin DMX Output
1 x XLR 5-Pin DMX Output

Power

AC Input Power	100 to 240 VAC, 50/60 Hz
AC Power Connector	Input: 1x powerCON Output: 1x powerCON Plug Type: NEMA 5-15 Cord Length: 5' / 1.5 m
Power / Current Consumption	120 VAC, 60 Hz: 49 W / 0.7 A 230 VAC, 50 Hz: 48 W / 0.4 A
Power Linking	19 Units at 120 VAC 35 Units at 230 VAC

Environmental

Environmental Resistance

Physical

Mounting	Mounting Bracket
Included Accessories	1x Power Cable
Duty Cycle	No
Exterior Color	Black
Cooling	Convection
Certifications	CE, MET, UKCA, RoHS
Dimensions	38.9 x 2 x 6.2" / 987 x 49 x 157 mm
Weight	7 lb / 3.2 kg
