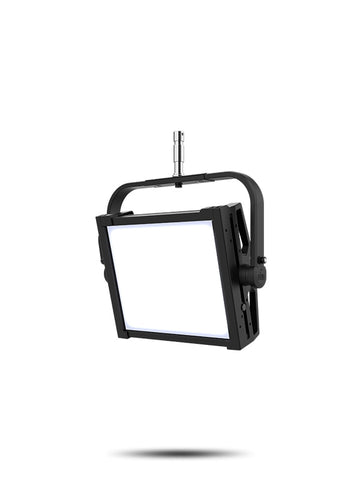

Chauvet OnAir Panel 1 IP

Chauvet OnAir Panel 1 IP

The onAir Panel 1 IP is a robust IP65-rated full-spectrum LED soft light designed for both indoor and outdoor broadcast settings. Its 1×1 format delivers exceptional white light quality with high CRI, TLCI, and TM-30 scores, ensuring accurate color rendering for professional results. Key features include 16-bit dimming, +/- green adjustment, emulated redshift, and vibrant color output, along with customizable effects accessible via an onboard control menu. Versatile mounting options—Jr Pin or Omega Bracket—and a rugged build with a drop-in accessory slot simplify setup and operation. The fixture supports PWM, DMX, RDM, CRMX, Art-Net, and sACN for seamless integration, and an optional 28 VDC input via 3-pin XLR allows battery-powered operation for remote applications. Whether in-studio or on-location, the OnAir Panel 1 IP delivers reliable, camera-ready performance in any environment.

Features

• Full-spectrum LED 1x1 format soft light panel style fixture for broadcast, film, and special events
• IP65 rating for all weather use indoors or out.
• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
• Virtual color wheel with color matched to popular gel colors
• +/- Green adjustment and emulated red-shift via DMX or on-board control
• RDM (Remote Device Management) and CRMX Wireless Control for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio applications
• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
• Easily switch mounting options from Jr Pin to Omega Bracket
• Drop-in slot for diffusers and intensifier filter (sold separately)
• Rugged design for years of rough use in the most extreme conditions.
• Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.
• USB port for fixture software updates
• 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack
