Chauvet Strike Array 1 Heads Only

Chauvet Strike Array 1 Heads Only

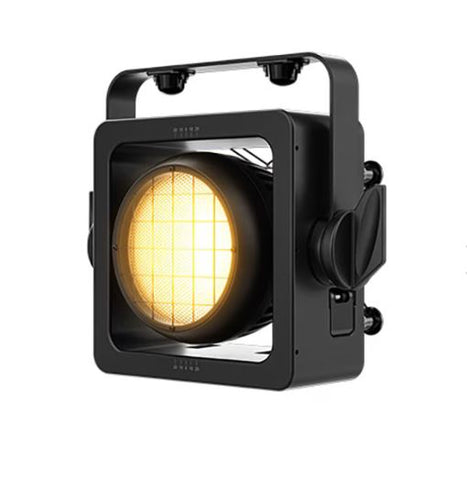

STRIKE Array 1 is an IP65-rated audience blinder powered by intense warm white LEDs housed in an independently focusable pod. Its proprietary tool-free interlocking system enables STRIKE Array 1 to be easily interconnected with multiple units for scalable configurations. For additional rigging versatility, the STRIKE Array 1 pod can be removed from its frame and mounted using the included standard yoke. STRIKE Array 1 delivers superb low end dimming performance and Red Shift that warms the color temperature of the light as it dims to emulate a classic tungsten look. Variable PWM and high CRI make it an ideal blinder for broadcast applications.

Features

• Intense, stacking blinder/strobe rated IP65 for all-weather use
• Heads are removable from the frame and can be mounted in standard (included) yoke for a more traditional look.
• Emulated “red shift” to mimic incandescent fixtures perfectly.
• Manual pan (or tilt, depending on mount orientation) of each head to allow for directional adjustment of light output.
• Innovative interlocking system to connect multiple fixtures together.
• Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme

• Light Source (Single Pod): 48 LED (WW) 1.33 W, (1.1 A), 2700 K, 50,000 hours life expectancy
• Light Source (Single Pod): 5 LED (Amber) 1.92 W, (.770 A), 50,000 hours life expectancy
• Color Temperature (at full): 2657 K
• CRI: 83.9
• Beam Angle: 62.8°
• Field Angle: 104.5°
• Lumens (Single Pod): 4,353 lm @ 5 m
• Illuminance (total) (Single Pod): 153 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
• Dimensions: 8.19 x 8.62 x 4.57 in (208 x 219 x 116 mm) (Single Unit with Bracket)
• Dimensions: 7.48 x 7.48 x 4.57 in (190 x 190 x 116 mm) (Single Unit with Frame)
• Dimensions: 10.87 x 9.06 x 4.57 in (276 x 230 x 116 mm) (Single Unit with Frame and Bracket)
• Dimensions: 7.375 x 4.00 x 7.375 in (186.87 x 101.6 x 186.87 mm) (Control Box)
• Weight: 3.2 lbs (1.5 kg) (Single Unit with Bracket)
• Weight: 6.6 lbs (3.0 kg) (Single Unit with Frame)
• Weight: 7.6 lbs (3.5 kg) (Single Unit with Frame and Bracket)
• Weight: 6.4 lbs (2.9 kg) (Control Box)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
