American DJ 4ST100, DMX Application
Vendor: American DJ
Available
American DJ 4ST100, Pro App to control DMX products through WiFLY wireless DMX or a hardwire connection via 5-pin XLR.

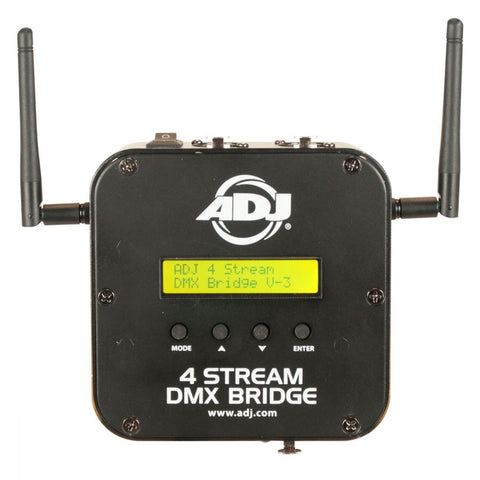

The American DJ 4 STREAM DMX Bridge is a compact 4-universe wireless device which seamlessly bridges WiFi, Art-Net, sACN, and WiFLY (ADJ wireless DMX solution) signals to wirelessly control compatible DMX devices with control from the Airstream DMX Pro App for iPad. The American DJ 4 STREAM DMX BRIDGE can creates a private standalone 2.4 GHz DSSS (Direct Sequence Spread Spectrum) WiFi network, which coexists in busy RF environments alongside other wireless technologies. No existing network infrastructure is required, or it connects to an external network. 4 STREAM DMX BRIDGE sends constant and reliable wireless DMX signals to compatible DMX devices via DMX-512, Art-Net, sACN, or WiFly. Features include separate WiFi and WiFLY wireless antennas, (3) 5-pin DMX outputs, a mini USB port, a 4-button control panel, an LCD system menu display with an LED network activity signal indicator, on/off switch, an external DC 9-12V power supply, a mini omega bracket for easy clamp/truss mounting, a magnetic back for easy attachment to metal surfaces, and easy configuration from a PC connected via USB Mini B port using the 4 STREAM DMX BRIDGE Setup Windows app or over Wi-Fi using the ADJ 4 STREAM DMX BRIDGE Config iOS APP. American DJ 4 STREAM DMX is ideal for small production events, nightclubs, bars or any event or venue which requires hidden data cables, and who are looking for a robust, 4 DMX universe APP based lighting control solution.
American DJ 4 STREAM DMX Main Features
- Seamless wireless bridge to DMX compatible devices
- Supports standard network protocols, Art-Net, sACN, and WiFly
- Private, standalone 2.4 GHz DSSS Wi-Fi network
- No existing network needed or connect to external network
- Supports up to 4 DMX Universes (3 wired and 1 WiFly wireless)
- Control compatible WiFly devices up to 2500' away
- 14 WiFly wireless channels
- Easy clamp/truss mounting
- Magnetic back for easy attachment to metal surfaces
- Easy configuration using iOS App
- Dedicated control App with 4 DMX universes available in the Apple App store
• Seamless Wireless Bridge To DMX Compatible Devices
• Supports Standard Network Protocols, Art-Net, sACN and WiFly
• Private Standalone 2.4 GHz DSSS WiFi Network
• No Existing Network Needed or Connect to External Network
• Supports up to 4 DMX Universes (3 wired and 1 WiFLY wireless)
• Control Compatible WiFly Devices up to 2,500 Feet Away
• 14 WiFly Wireless Channels
• Easy Clamp/Truss Mounting
• Magnetic Back for Easy Attachment to Metal Surfaces
• Easy Configuration using iOS App
• Dedicated control APP with 4 DMX universes available in the Apple APP Store
SIZE / WEIGHT:
• Length: 4.92" (125mm) x Width: 6.88" (175mm) x Vertical Height: 2.44" (62mm)
• Weight: 1.06 lbs. (0.48kg)
ELECTRICAL:
• DC 9-12V 1Amp
APPROVALS:
• CE | cETLus
Apple, the Apple logo, iPad are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.Specifications and documentation subject to change without notice.
