Neumann D-01 equipped with high technology

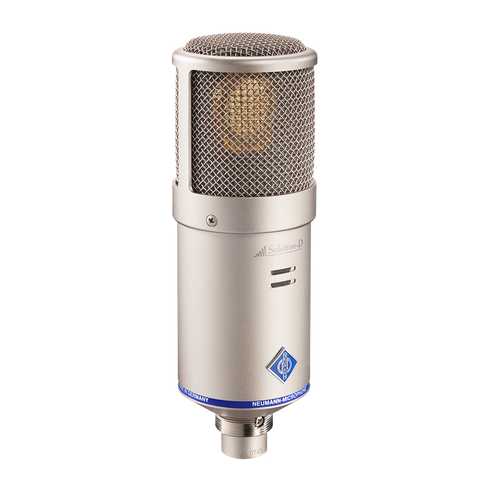

Neumann D-01, Solution-D large diaphragm digital mic with 15-switchable polar patterns using RCS

Name: Neumann D-01, Solution-D large diaphragm digital mic with 15-switchable polar patterns using RCS
Brand: Neumann
SKU: D-01
Price: 6000.00 USD
Availability: InStock

Vendor: Neumann

Descriptions Neumann D-01, Solution-D large diaphragm digital mic with 15-switchable polar patterns using RCS The Neumann D-01 is the top-of-the-line AES 42 digital microphone featuring a newly developed large diaphragm capsule with a linear...

$6,000.00 $7,500.00

Default Title

Subtotal:

Quantity

Descriptions

Neumann D-01, Solution-D large diaphragm digital mic with 15-switchable polar patterns using RCS

The Neumann D-01 is the top-of-the-line AES 42 digital microphone featuring a newly developed large diaphragm capsule with a linear response in all directional patterns. The Neumann D-01 has entire dynamic range of 130 dB is transferred to the digital domain while maintaining the quality. DSP functions include digital gain, low cut, peak limiter, compressor/limiter and de-esser.

Neumann D-01 Main Features

Digital output (AES 42)
DSP functions (e.g. overload protection, compressor/limiter, de-esser)
All parameters may be stored in the microphone
Remote controllable signal LEDs for communication with the artist
Balanced sound in 15 directional patterns
Extremely low self-noise (8 dB-A)
15 directional patterns
A/D-conversion directly at the capsule, AES 42 output
Unprecedented fidelity and detail, 130 dB dynamic range
All microphone parameters remote controlled

Specifications

Acoustical operating principle	Double diaphragm pressure gradient transducer
Directional Pattern	Omni...cardioid...fi gure-8, 15 patterns in total
Frequency Range	20 Hz ... 20 kHz
Sensitivity at 1 kHz, 0 dB gain, and 94 db SPL	–44 dBFS
Equivalent noise level, CCIR ¹	19 dB
Equivalent noise level, A-weighted ²	8 dB-A
Maximum SPL at 0 dBFS (re. 94 dB SPL)	138 dB SPL
Maximum SPL with 18 dB preatt. (RCS) (re. 94 dB SPL)	156 dB SPL
Signal-to-noise ratio, CCIR (re. 94 dB SPL) ³	75 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL) ⁴	86 dB
Dynamic range including capsule ⁵	130 dB
Matching connector	XLR
Weight	approx. 700 g
Diameter	63.5 mm
Length	188 mm
A/D conversion	Neumann process (patented), 28-bit internal word length
Digital signal processing	Fixed-point, variable internal word length 28 bits to 60 bits
Sampling rates	44.1/48/88.2/96/176.4/192 kHz
Output data format	24 bits as per AES/EBU (AES 3)
Latency: 44.1/48 kHz	52 samples
Latency: 88.2/96 kHz	61 samples
Latency: 176.4/192 kHz	121 samples
Synchronization: Free-running (non-synchronous operation), frequency stability	± 25 ppm
Synchronization: Synchronous operation, pulling range	min. ± 100 ppm
Supply voltage range	+7 V to +10.5 V
