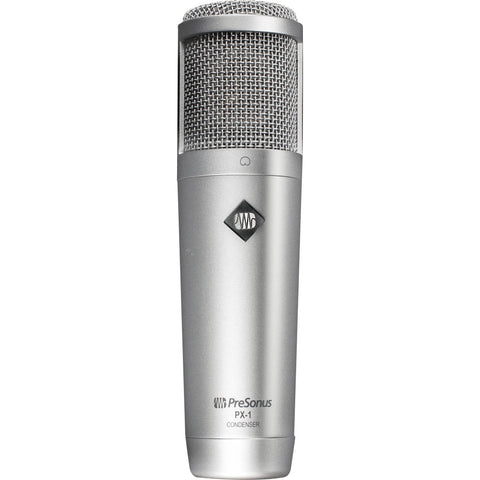

Presonus PX-1 Large Diaphragm Cardioid Condenser Microphone

Presonus PX-1 Large Diaphragm Cardioid Condenser Microphone

The PX-1 designed by PreSonus is a large-diaphragm studio condenser microphone designed for podcasts, recording vocals, and instruments such as guitar and piano. The PX-1 gold-sputtered capsule feeds low-noise circuitry including an internal Class-A FET pre-amp, yielding a 20 Hz to 18 kHz frequency response for wideband clarity.

The cardioid polar pattern minimizes the pickup of ambient, off-axis sound, permitting it to deliver intelligible direct sound in rooms that lack acoustic treatment. Thanks to its rugged construction and balanced XLR output, the PX-1 is ready to be used in homes, project studios, and mobile recording rigs.

• Optimal for recording vocals, podcasts, guitar, and more
• True large-diaphragm condenser microphone
• Traditional side-address orientation
• 1" gold-sputtered capsule with 6-micron Mylar diaphragm
• Low-noise circuitry with internal Class-A FET preamp
• Handles SPLs up to 135 dB
• Includes mic mount and carrying case

PreSonus PX-1 Specs

Microphone

• Sound Field: Mono
• Operating Principle: Pressure Gradient
• Capsule: Condenser
• Diaphragm: 0.98" / 25 mm
• Polar Pattern: Cardioid
• Circuitry: Solid-State
• Pad: None
• High-Pass Filter: None

Performance

• Frequency Range: 20 Hz to 18 kHz
• Maximum SPL: 135 dB SPL
• Load Impedance: 1 Kilohms
• Sensitivity: 25 mV/Pa
• Equivalent Noise Level: 18 dB A-Weighted

Connectivity

• Output Connectors: 1 x XLR 3-Pin

Power

• Operating Voltage: 48 V

Packaging Info

• Package Weight: 1.85 lb
• Box Dimensions (LxWxH): 10.5 x 5 x 3.7"
