Williams Sound DWS COM 6 PRO 400

Williams Sound Digi-Wave 400 Wireless Intercom System INTERCOM & TOUR SYSTEMS DWS COM 6 PRO 400

Vendor: Williams Sound
Descriptions Williams Sound Digi-Wave 400 Wireless Intercom System INTERCOM & TOUR SYSTEMS DWS COM 6 PRO 400 Williams Sound DWS COM 6 PRO 400 Series is a Wireless Intercom System for up to six...
$4,135.00 $4,595.00
Title
Descriptions

Williams Sound Digi-Wave 400 Wireless Intercom System INTERCOM & TOUR SYSTEMS DWS COM 6 PRO 400

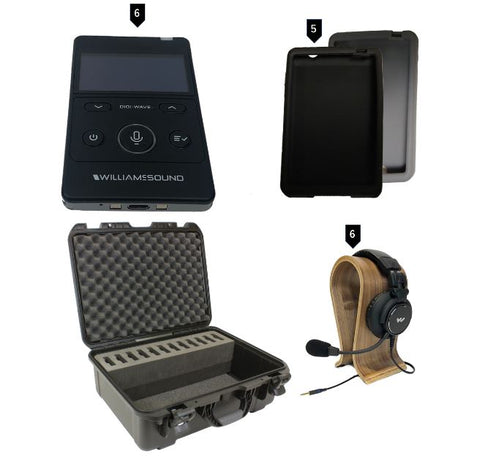

Williams Sound DWS COM 6 PRO 400 Series is a Wireless Intercom System for up to six participants in high-noise environments. Includes: (6) DLT 400 transceivers, (6) MIC 157 headset mics, (1) CCS 042 DW heavy-duty system carry case, (1) CCS 061 GR grey silicone skin, (5) CCS 061 BK black silicone skins. Replaces DWS COM 6 PRO 300.

DWS COM 6 PRO 400 Main Features

  • (6) DLT 400 transceivers
  • (6) MIC 157 headset mics
  • (6) DW ACC PAC4
  • (1) CCS 042 heavy-duty system carry case
  • (1) CCS 061 GR grey silicone skin
  • (5) CCS 061 BK black silicone skins
Specifications
Dimensions 4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm)
Weight 3.3 oz (94 g) including battery
Color Black/Silver (Front/Back)
Case Material Black ABS plastic
Battery type Lithium Polymer with smart charge built into transceiver; 1800 mAH
Battery life Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx
Power Save Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
Charge time 5 hrs. approx.
System Voltages OLED 14VDC; RF 5VDC; Logic 3.3 VDC
Operating frequencies 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
Audio Frequency response (-3dB Level) Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz
SNR 73 dB (A-weighted, default Rx volume with mic input )
THD 0.1 % (Default Volume, 1kHz)
Microphone input Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
Line Input USB-C, Adjustable level
Headphone Output 3.5 mm TRRS headphone jack; 25 mW, R 32 ohms
Audio Output Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level
Range Up to 900 ft (274 m) (depending upon environmental conditions)
Modulation FSK
RF Output 19 dBm Typical
Security 87 bit encryption (300 Series Compatiable), 87+128 bit Encryption, Encrpytion PIN, Lock for settings
Side tone -6 dB below volume, tone variation (Off, Low and High settings available)
Indicators OLED
LEDs Red LED around Talk button when enabled; Bi-color, changing green and red LED at top
Charging Connectors USB-C; Two contacts for use with CHG 412
Compatible Receiver DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations
Operating Tempurature Range 14º to 113ºF (-10º to 45ºC)
Approvals FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
Warranty 2 years parts and labor (90 days on accessories); 6 months on internal battery
