DPA 6066-OC-R-F03, d:fine™ CORE 6066 Omni Headset Mic, Beige, 3 pin LEMO, Headset Over-ear Microphone for Live Production and Churches

DPA 6066-OC-R-F03, d:fine™ CORE 6066 Omni Headset Mic, Beige, 3 pin LEMO, Headset Over-ear Microphone for Live Production and Churches

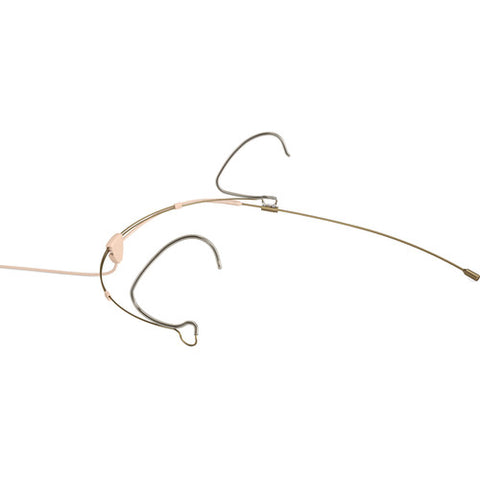

The DPA 6066-OC-R-F03 is a subminiature headset microphone. This DPA 6066-OC-R-F03 has a lightweight and one-size-fits-all headset, minimized size omnidirectional microphone (0.12") and cable that is terminated with a hardwired 3-pin LEMO connector. The unique thing in DPA 6066-OC-R-F03 has a small size but offering to pack the audio power of larger DPA mics. Also, the DPA 6066-OC-R-F03 headset can be used with wireless microphone systems (sold separately) to capture audio for live stage, theater, rehearsal applications and presentation.

In addition, the DPA 6066-OC-R-F03 also offers a maximum comfort when attaches over the ears. The DPA 6066-OC-R-F03 has a 3-point ear grips with spring mechanisms that help grip below the ears and to the side of the head for added security. There is also a 2-way adjustable boom system-length and height-with an anti-rotate mechanism that makes this headset very easy to fit. In addition, a 90° cable management system safeguards the cable and directs it down the wearer's back, where it can't be seen.

DPA 6066-OC-R-F03 Main Features

• Amazing 3 mm CORE by DPA capsules technology
• Renowned DPA sound in a 60% smaller capsule
• One-size-fits-all, headset fits securely and comfortably
• 2-way adjustable, non-reflective boom with locking system
• Unique, comfortable 3-point gripping system above, below and behind the ear
• New 90° cable management constructed to guide the cable and minimize cable breaks

• Connector: 3-pin LEMO
• Color: Beige
• Directional pattern: Omnidirectional
• Principle of operation: Pressure
• Principle of operation: Pre-polarized condenser
• Frequency range: 20 Hz - 20 kHz
• Frequency range, ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
• Total harmonic distortion (THD): < 1% up to 128 dB SPL peak
• Dynamic range: Typ. 102 dB
• Max. SPL, peak before clipping: 144 dB
• Output impedance: From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
• Power supply (for full performance): Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
• Weight: 11 g (0.40 oz)
• Microphone head size (h x w x d): 3.4 / 8.9 mm
• Capsule diameter: 3 mm
• Cable length: 1.3 m (4.3 ft)
