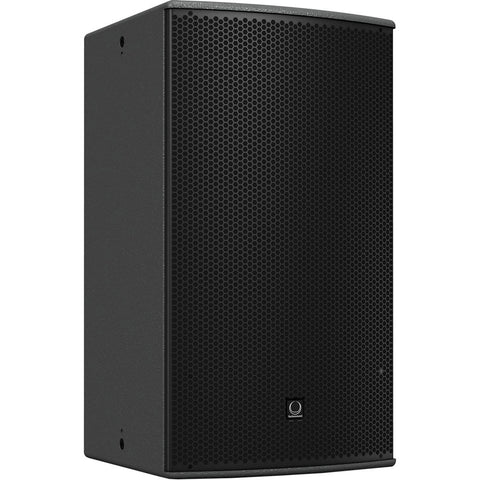

Turbosound TCS115B (Black) / TCS115B-WH (White) 15'' Front Loaded Subwoofer for Installation Applications
Vendor: Turbosound
Available
Turbosound TCS115B (Black) / TCS115B-WH (White) 15'' Front Loaded Subwoofer for Installation Applications
The Athens TCS115B 15" Front-Loaded Subwoofer comes in different color variants: Turbosound TCS115B (Black) / TCS115B-WH (White), it is professionally designed suitable for a wide range of speech and music sound-reinforcement applications. It comes providing a optimal low-frequency reinforcement during the time it is used in conjunction with all TCS-series loudspeakers.
The subwoofer comes featuring an enclosure with a bass-reflex port and a double-suspension 15" low-frequency driver that is capable of utilizing a specialized voice coil wound on both inside and outside of the coil former. This is resulting in higher magnetic density, better heat dissipation, higher power-handling capacity, and improved efficiency. The rear-panel connector plate is made featuring four Neutrik speakON NL4 and barrier-strip connectors intended for input and link connections to additional enclosures. The Athens TCS115B is capable of providing fast and accurate transient response for virtually distortion-free operation even in the most demanding applications.
The subwoofer's cabinet is professionally constructed from 5/8" (15mm) birch plywood and includes a rugged powder-coated perforated-steel mesh grille backed with reticulated foam. Multiple internal rigging points are intended for allowing bracket mount and suspension in many different configurations in permanent installations. An array of two or more cabinets are capable to be configured with the use of Turbosound fly plates and coupler kits (sold separately).
- Front-loaded subwoofer for installation applications
- 500W continuous, 2,000W peak power
- Double-suspension 15" low-frequency driver with inside/outside wound coil
- Low-distortion bass-reflex port design
- 5/8" (15mm) birch-plywood enclosure with durable semi-matte black paint finish
- Architecturally styled powder-coated perforated plated-steel mesh grille with foam backing
- Multiple internal rigging points allow bracket mount and suspension in many different configurations
- Neutrik speakON NL4 and barrier-strip connectors
| Frequency Response | 45 Hz to 150 Hz, ±3 dB 40 Hz to 200 Hz, -10 dB |
| Nominal Dispersion | Half space |
| Power Handling | 500 W continuous, 2,000 W peak |
| Sensitivity | 97 dB (1 W @ 1 m) |
| Maximum SPL | 124 dB continuous, 130 dB peak |
| Impedance | 8 ohms |
| LF Driver Size | 1 x 15" (387 mm) |
| Connectors | 1 x Neutrik speakON NL4 1 x Barrier-strip terminals |
| Wiring | Parallel / No Switch: Pins 1+ / 1- input, pins 2+ / 2- link |
| Construction | 5/8" (15 mm) birch plywood |
| Grille | Powder-coated perforated steel |
| Rigging Points | 8 x M10 |
| Dimensions (H x W x D) | 32.9 x 18.5 x 17.8" (84 x 47 x 45 cm) |
| Weight | 72 lb (32.7 kg) |
