Hollyland Mars 400S ProⅡ SDI/HDMI Wireless Video Transmission System

Hollyland Mars 400S ProⅡ SDI/HDMI Wireless Video Transmission System

Vendor: Hollyland
Hollyland Mars 400S ProⅡ SDI/HDMI Wireless Video Transmission System Add up to 1080p60 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight Mars 400S PRO II SDI/HDMI Wireless...
$299.00
Title
Description

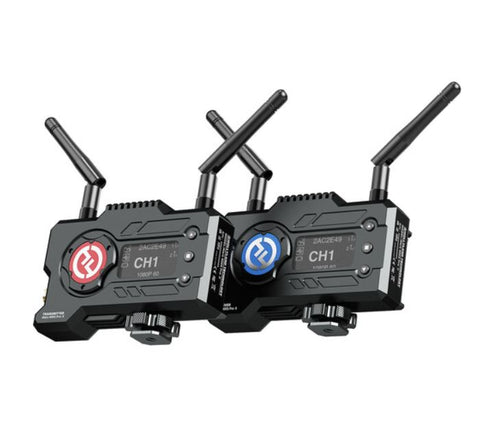

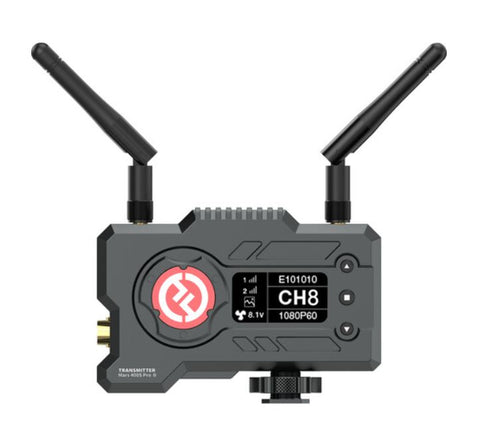

Hollyland Mars 400S ProⅡ SDI/HDMI Wireless Video Transmission System

Add up to 1080p60 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight Mars 400S PRO II SDI/HDMI Wireless Video Transmission System from Hollyland. The transmitter provides HDMI and SDI inputs, and the receiver offers SDI and HDMI outputs. It features an extremely low 70 ms latency and a high 12 Mb/s data rate with line-of-sight transmission up to 500' to the receiver and to the Hollyview Wi-Fi app. For a strong line-of-sight signal, the system includes two external antennas on the transmitter and two on the receiver, and one is included as a spare.

Features

  • Transmitter and Receiver Set
  • Transmit up to 1080p60 Video
  • Transmit up to 500' Line-of-Sight
  • Extremely Low 70 ms Latency
  • SDI and HDMI Inputs and Outputs
  • L-Series Battery/USB-C/DC Power
  • OLED Display, Low-Battery Warning
  • Shoe Adapter and 1/4"-20 Mounting Thread

Package Includes

  • Transmitter*1
  • Receiver*1
  • Antenna *5
  • User Manual*1
  • DC Adapter *1
  • Warranty Card*1
Specifications
Key Specs
Video I/O Transmitter: 1x HDMI (Unspecified Signal) Input
Transmitter: 1x BNC (3G-SDI) Input
Receiver: 1x HDMI (Unspecified Signal) Output
Receiver: 1x BNC (3G-SDI) Output
Embedded Audio HDMI/SDI
Media/Memory Card Slot Not Specified by Manufacturer
Latency 70 ms
Video Format HDMI/SDI
1080p
Battery Receiver/Transmitter: 1x L-Series Mount on Fixed Plate
Power Consumption Transmitter: 11 W
Receiver: 7 W
Inputs/Outputs
Antenna I/O Transmitter/Receiver: 2x RP-SMA
Video I/O Transmitter: 1x HDMI (Unspecified Signal) Input
Transmitter: 1x BNC (3G-SDI) Input
Receiver: 1x HDMI (Unspecified Signal) Output
Receiver: 1x BNC (3G-SDI) Output
Embedded Audio HDMI/SDI
Audio I/O No
Power I/O Transmitter/Receiver: 1x Barrel (5 VDC) Input
Transmitter/Receiver: 1x USB-C (16 VDC) Input
Media/Memory Card Slot Not Specified by Manufacturer
Encryption No,
Wireless
Wireless Range 500' / 152.4 m (Line-of-Sight)
Channel Bandwidth 20 MHz
Frequency Range US: 5 GHz
Latency 70 ms
RF Power < 21 dBm
RF Sensitivity -80 dBm
Wi-Fi Yes
Bluetooth No
Mobile App Compatible Yes: Android & iOS
App Name: Hollyview
Cellular Support No
Format Support
Video Format HDMI/SDI
1080p
Audio Format Not Specified by Manufacturer
Power
Input Power 6 to 16 VDC
Battery Receiver/Transmitter: 1x L-Series Mount on Fixed Plate
Power Consumption Transmitter: 11 W
Receiver: 7 W
Mounting
Tripod/Accessory Mounting Not Specified by Manufacturer
General
Environmental Resistance No
Dimensions Transmitter/Receiver: 4.3 x 2.8 x 1.3" / 110 x 72 x 33.5 mm
Weight Transmitter/Receiver: 7.27 oz / 206.00 g
