American DJ ENC251, Ellipsoidal features a 250W RGBWA
Vendor: American DJ
Available

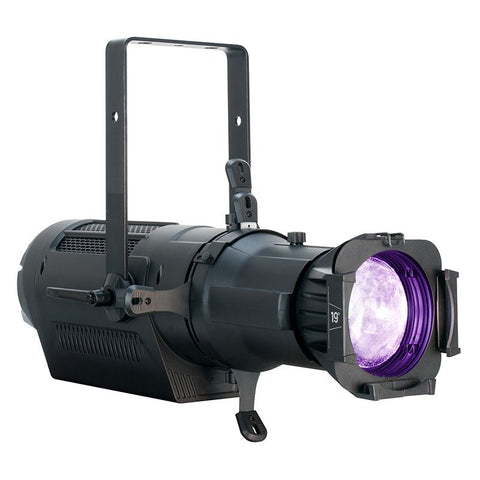

American DJ ENC251, Ellipsoidal features a 250W RGBWAL (Red, Green, Blue, White, Amber, Lime) LED engine.
The American DJ Encore Profile Pro Color is an RGBWAL LED ellipsoidal with manual zoom and focus that is perfectly suited for stage, studio, broadcasting, museums and many more. The American DJ Encore Profile Pro Color is capable of rich saturated colors, the fixture utilizes a bright 250W LED engine that generates red, green, blue, white, amber and lime colors for a wide pallet of color mixing capabilities. Also, the notable features include a 4-blade manual framing shutter, manual focus and DMX-controlled electronic strobe, dimming, dimming curves, and dimming modes. In addition, the Encore Profile Pro Color can provides a flicker-free operation for TV and film with an adjustable refresh rate frequency. The fixture supports B-sized metal HT transparency gobos, and it works with separately sold interchangeable lens options (5, 10, 14, 19, 26, 36, and 50°). The rear panel includes locking 5-pin DMX XLR in/out connectors and power input, as well as a 4-button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal autoswitching power supply (100 to 240V). Up to three fixtures can be power-linked (120V). The Encore Profile Pro Color ships with a locking power cable.
American DJ ENC251 Main Features
- 250W RGBWAL (red, green, blue, white, amber, lime) LED engine
- 4-blade manual framing shutter
- Manual focus
- Supports B-sized metal HT transparency gobos
- DMX control modes: 6, 9, 12
- Electronic strobe
- Dimming, dimming curves, and dimming modes
- Flicker-free operation for TV and film
- Adjustable refresh rate frequency
- Locking 5-pin XLR in/out connectors and locking power input
- 4-button LCD control display panel
- Integrated rigging yoke
- Quiet fan cooling
- Multi-voltage universal autoswitching power supply (100 to 240 VAC)
Optional Accessories
- EP lens 5 (5° lens)
- EP lens 10 (10° lens)
- EP lens 14 (14° lens)
- EP lens 19 (19° lens)
- EP lens 26 (26° lens)
- EP lens 36 (36° lens)
- EP lens 50 (50° lens)
- EP lens 15-30 (adjustable 15 to 30° lens assembly)
- EP lens 25-50 (adjustable 25 to 50° lens assembly)
SOURCE
250W RGBWAL (Red/Green/Blue/White/Amber/Lime) LED Engine 50,000 Hour Average LED Life* *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.PHOTOMETRIC DATA
>90CRI 6,000 Total Lumens* (*with 26° lens) EFFECTS Electronic Strobe and Dimming Variable Dimming Curves and Dimming Modes GOBOS Supports “B” Size Metal, HT Transparency Gobos* *Gobos and Holder not included. CONTROL / CONNECTIONS (3) DMX Channel Modes (6 / 9 / 12) Adjustable Refresh Rate (900-1500, 25,000 Hz) 4 Button Control Panel LED Menu Display Locking 5pin XLR Connector In/Out Locking Power Connector In/Out With Wired Digital Communication Network SIZE / WEIGHT Length: 27.1” (688mm) (Lens In) Width: 111.3” (287mm) Vertical Height: 17.7” (450mm) Weight: 20.0 lbs. (9.1 kg) ELECTRICAL / THERMAL Quiet Fan Cooling AC 100-240V - 47/63Hz 250W Max Power Consumption Power Linking: 3pcs Max @120V / 8pcs Max @240V 14° to 113°F (-10° to 45°C) APPROVALS / RATINGS CE | cETLus (Pending) | IP30 INCLUDED ITEMS (1) Locking Power Cable OPTIONAL ACCESSORIES: EP Lens 5 (5° Lens) EP Lens 10 (10° Lens)
EP Lens 14 (14° Lens)
EP Lens 19 (19° Lens) EP Lens 26 (26° Lens)
EP Lens 36 (36° Lens) EP Lens 50 (50° Lens)
EP Lens 15-30 (Adjustable 15° to 30° Lens Assembly)
EP Lens 25-50 (Adjustable 25° to 50° Lens Assembly)
Specifications and documentation subject to change without notice.
