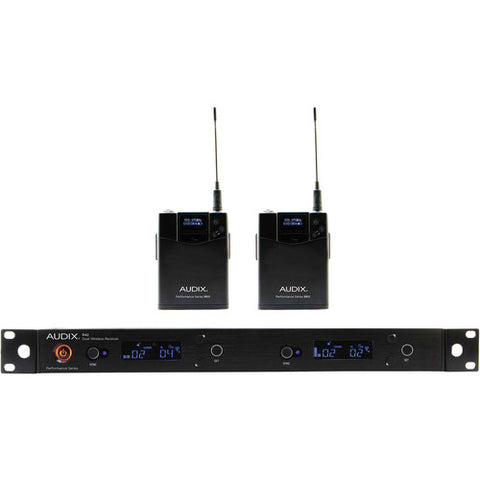

Audix AP42BPB Main View

Audix AP42BPB, R42 Two Channel Diversity Receiver with Two B60 Bodypack Transmitters

Vendor: Audix
Descriptions Audix AP42BPB, WIRELESS,R42, (2) BODY PACK ONLY, R42 Two Channel Diversity Receiver with Two B60 Bodypack Transmitters (554 MHz - 586 MHz) The Audix AP42BPB features its performance series and a dual-channel bodypack wireless...
$1,129.00 $1,359.00
Title
Descriptions

Audix AP42BPB, WIRELESS,R42, (2) BODY PACK ONLY, R42 Two Channel Diversity Receiver with Two B60 Bodypack Transmitters (554 MHz - 586 MHz)

The Audix AP42BPB features its performance series and a dual-channel bodypack wireless system from Audix. The Audix AP42BPB has includes the R42 2-channel diversity receiver and two B60 bodypack transmitters. The R42 in Audix AP42BPB diversity receiver operates on a wide-spectrum frequency range of 522 to 554 MHz and offers one-touch auto scan searches for clear channel. The Audix AP42BPB comes in a 19" rackmount chassis an internal antenna combiner for dual antenna operation. Thanks to the one-touch sync function, this receiver is very easy to links to the B60 bodypack transmitters placed within 300'

The Audix AP42BPB bodypack transmitters can be used with any lavalier, headworn or instrument microphone in the Audix line, as well as electric guitar and bass. The Audix AP42BPB bodypack transmitter has enclosed in a metal housing with modular antenna design, each transmitter comes with AF and RF gain controls and a soft mute switch which alsi serves an on/off switch when is needed. It also feature a high contrast LCD display with group, channel and battery indicator.

Audix AP42BPB Product Features

R42 Two Channel Diversity Receiver
- 32 MHz Wide spectrum tuning receiver
- 106 Pre-coordinated frequencies
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam

B60 Bodypack Transmitter
- 64 MHz Wide spectrum transmitter
- Durable metal housing
- 14 Hour run time - AA batteries

Specifications

Audix R42 Kit-B Performance Series Dual-Channel UHF Diversity Receiver (B: 554 To 586 MHz)<span> </span>Specs

Frequency Band  554 to 586 MHz
Bandwidth  32 MHz
# Of Simultaneous Systems  Up to 8
Switchable Frequencies  106 pre-coordinated frequencies
Wireless Range  Up to 300' / 91 m
Antenna Connector  2 x BNC (8 VDC, 150 mA)
Outputs  2 x XLR 3-pin balanced
 2 x 1/4" TS unbalanced
Audio Output Level  XLR: -12 dBV at 25 kHz deviation, 600-Ohm   load, +6 gain
 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load,   +6 gain
Audio Level Control  -12 to +9 dB in 3 dB steps
Frequency Response  45 Hz to 18 kHz
Compander  2:1
Pilot Tone  32 kHz
Receiving System  Single tuner, antenna diversity
Signal to Noise Ratio  105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion (THD)  ≤0.7% (33 kHz deviation at 1 kHz)
Sensitivity  5 dBµV (S/N 60 dB at 25 kHz deviation, A-   weighted)
Power Requirement  100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
Dimensions (W x D x H)  16.0 x 8.2 x 1.7" / 406 x 209 x 44 mm
Weight  4.8 lb / 2.2 kg



Audix B60 Performance Series Bodypack Transmitter (522 To 586 MHz)<span> </span>Specs
RF Power Output  10/30 mW
Bandwidth  64 MHz
Gain Adjustment  0 dB, -6 dB, -12 dB, -24 dB
Inputs  1 x mini-XLR 3-pin
Input Impedance  Mic: 10 kOhms
 Line: 1 MOhm
Maximum SPL  Approximately 128 to 140 dB (depending on   microphone)
Battery Life  Approximately 14 hours
Current Consumption  110 mA typical
Power Requirement  2 x AA 1.5 V batteries
Dimensions (W x L x D)  2.6 x 3.5 x 0.7" / 67 x 90 x 17 mm
Weight  3 oz / 85 g without batteries
