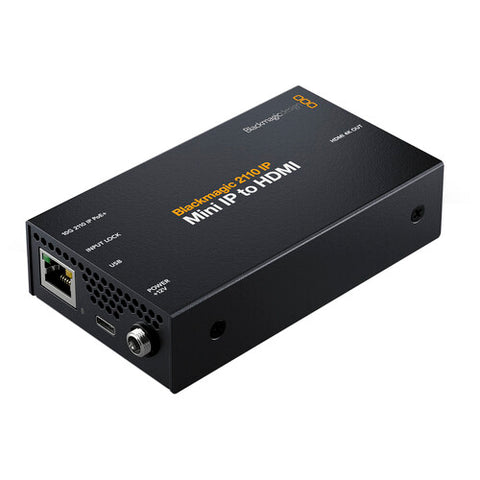

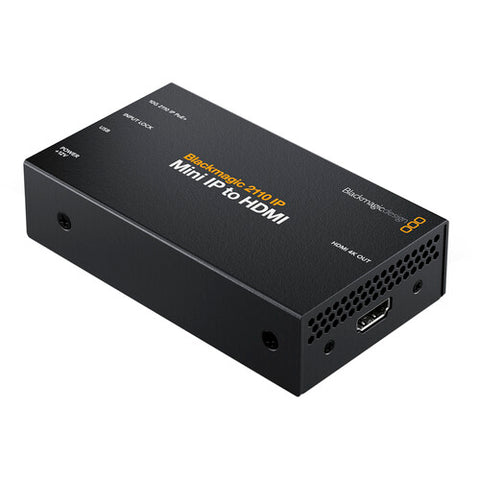

Blackmagic Design 2110 IP Mini IP to HDMI Converter

The Blackmagic Design 2110 IP Mini IP to HDMI Converter provides a simple and reliable way to monitor SMPTE ST 2110 IP video on standard HDMI displays. Designed for broadcast studios, live production, control rooms, and professional AV environments, this ultra-compact converter delivers high-quality IP video monitoring with support for Ultra HD 4K resolution and embedded audio. Equipped with a 10G Ethernet port, the converter receives SMPTE ST 2110 IP video and supports up to 16 channels of embedded audio, allowing you to monitor both video and audio from IP-based production systems on compatible HDMI monitors or televisions. It's an ideal solution for integrating cost-effective HDMI displays into modern broadcast workflows.

Its ultra-compact design allows the converter to be mounted directly behind a monitor, attached to a monitor cage, or discreetly installed wherever space is limited. This makes it perfect for control rooms, flypacks, mobile production units, and on-set monitoring applications. The integrated USB-C port simplifies firmware updates and system configuration when connected to a Windows or macOS computer, ensuring your converter stays current with the latest features and performance enhancements.

For flexible installation, the converter can be powered using the included power supply or via PoE++ (Power over Ethernet++) on compatible network infrastructure. This enables both power and network connectivity through a single Ethernet cable, reducing cable clutter and simplifying deployment. Whether you're monitoring IP camera feeds, building an SMPTE ST 2110 control room, or adding HDMI displays to an IP broadcast network, the Blackmagic Design 2110 IP Mini IP to HDMI Converter delivers dependable performance, professional image quality, and effortless integration.

Features

2110 IP to HDMI Converter
Video Monitoring To/From Studio Cameras
Supports UHD 4K Video via SMPTE 2110 IP
Windows/macOS Software Utility
PoE++ and 10G Ethernet Power

Specifications

Video I/O	Input 1x RJ45 Female Output 1x HDMI Female
Audio I/O	No
Video Resolution	RJ45 Input (4:2:2 YUV) 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 25/29.97/30 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps
Wireless	No
OS Compatibility	macOS 13 or Later Windows 10 to 11

Inputs/Outputs

Video I/O	Input 1x RJ45 Female Output 1x HDMI Female
Audio I/O	No
Other I/O	Input 1x USB-C (Firmware)
Expansion Slots	No

Format Support

Video Resolution

RJ45 Input (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 25/29.97/30 fps
1280 x 720 at 50/59.94/60 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps

Embedded Audio

HDMI/LAN (RJ45)

Standards

Video Standard Compliance	SMPTE: ST 2110-20/ST 2110-21
HDCP Support	No
HDR Support	Yes

Hardware

Wireless	No
OS Compatibility	macOS 13 or Later Windows 10 to 11

Power

Power I/O	1x Barrel (12 to 16 VDC ) Input
PoE Support	Yes: PoE++ 802.3bt
Power Consumption	Device: 12 to 16 VDC (18 W)

General

Operating Conditions	41 to 104°F / 5 to 40°C up to 90% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C up to 90% Humidity
Dimensions	4.7 x 2.6 x 1.1" / 11.9 x 6.6 x 2.8 cm
Weight	7.23 oz / 205 g
