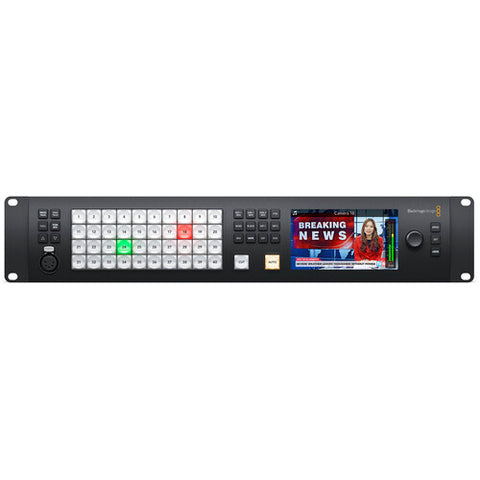

Blackmagic Design ATEM 4 M/E Constellation HD Live Production Switcher (2 RU)

Manage large-scale live productions with the Blackmagic Design ATEM 4 M/E Constellation HD Live Production Switcher. Built into a professional 2 RU rackmount chassis, this high-performance live production switcher supports up to 40 independent 3G/HD-SDI inputs, making it an ideal solution for broadcast studios, sports productions, concerts, live events, corporate productions, and houses of worship.

Supporting both 3G-SDI and HD-SDI video signals, the ATEM 4 M/E Constellation HD connects to a wide range of professional cameras and production equipment. It provides 24 independent 3G-SDI BNC program outputs for flexible signal distribution, along with a USB-C webcam output for direct connection to computers used for live streaming, conferencing, and recording. The switcher features four independent multiview outputs, each capable of displaying up to 16 routable windows. Operators can monitor camera inputs, keyed video, graphics, media pool still images, and the program output simultaneously for complete production awareness.

Every SDI input routes directly into the integrated Fairlight audio mixer, which supports up to 156 audio channels for advanced live audio production. Each input also includes its own frame synchronizer, frame rate converter, and format converter, allowing seamless switching between cameras using different formats, cameras without genlock, and computer video sources. A dedicated reference video input further supports synchronized professional broadcast workflows. Professional production tools such as upstream and downstream keyers and real-time effects processing allow graphics, titles, transitions, and layered effects to be applied instantly without rendering delays. The switcher can be controlled using the integrated front panel, optional Blackmagic ATEM hardware control panels, or the downloadable ATEM Software Control application.

Features

  • Supports 3G/HD-SDI at 10-Bit
  • 40 x 3G-SDI Inputs, 24 x 3G-SDI Outputs
  • Up to 16-Multiview Monitoring Windows
  • Webcam Output via USB-C
  • Frame Rate/Format Converter per Input
  • 156-Channel Audio Mixer
  • 16 x Upstream, 4 x Downstream Keyer
  • Chroma/Luma Keyers
  • Color/Pattern Generators
  • Hardware or Software Mac/Windows Control
Specifications
Mix Effects
Available M/E Layers 4 M/E
Effect Types 16x Chroma Key
21x Luma Key
4x Stinger
12x DVE
Downstream Keys 4x Chroma, Luma, DVE
Generators 2x Color
21x Pattern
Audio Mixing 156-Channel Mixing
Processing
Switching Type Pushbutton, Software
Color Processing 10-Bit 4:2:2
Latency 10 Lines
Input
Number of Video Input Sources 40
Video Inputs 40x BNC (3G-SDI)
Input Video Format SDI (10-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
Audio Inputs 2x 1/4" TRS Stereo Analog Female
1x BNC Stereo MADI
Input Audio Format Analog
Embedded Audio Input SDI: 2-Channel (per Input)
Output
Video Output Channels 24
Video Outputs 24x BNC (3G-SDI)
1x USB-C (USB Video) (Program)
Output Video Format SDI (10-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Outputs 2x 1/4" TRS
2x BNC Stereo MADI
Output Audio Format Analog
Embedded Audio Output SDI
USB-C
Multiview Output 16-Way Multiview via SDI
Connectivity
Other I/O 1x BNC Blackburst, Reference, Tri-Level Sync Input
1x RJ45 Control
1x RJ12 Control
1x RJ45 Talkback Input/Output
1x XLR 5-Pin Talkback Input/Output
Video Standard Compliance SMPTE 292M/296M/424M/425M-A/425M-B
HDCP Support No
IP Encoding/Decoding
IP Video 1280 x 720 to 1920 x 1080 Encoding
Display
Display Size 5"
Hardware
OS Compatibility macOS 11.1 or Later / Windows 10 or Later
Processor Not Specified by Manufacturer
Wireless No
Power
Power I/O 2x IEC C14 Input
Power Consumption Device: 147 W
General
Operating Conditions 32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions -4 to 140°F / -20 to 60°C
Rack Form Factor 2 RU
Dimensions 19 x 9.1 x 3.48" / 48.3 x 23.1 x 8.84 cm
Weight 11.53 lb / 5.23 kg
