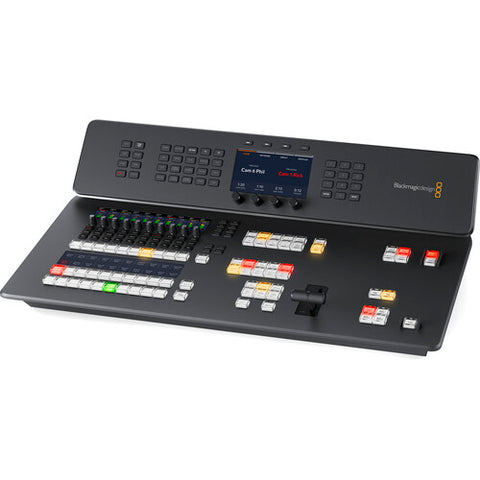

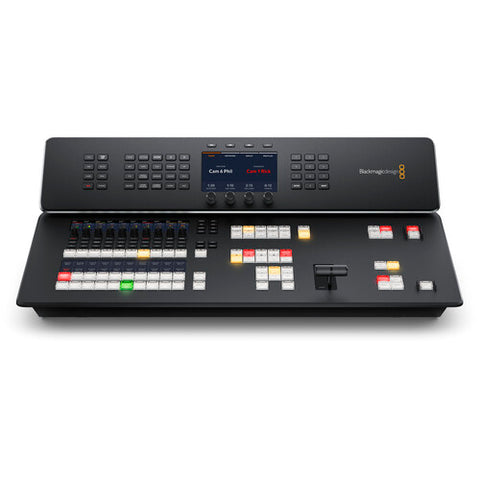

Blackmagic Design ATEM Television Studio HD8

Blackmagic Design ATEM Television Studio HD8

Name: Blackmagic Design ATEM Television Studio HD8
Brand: Blackmagic Design
Price: 2965.00 USD
Availability: OutOfStock

Vendor: Blackmagic Design

Blackmagic Design ATEM Television Studio HD8 The Blackmagic Design ATEM Television Studio HD8 is a professional live production switcher designed for television studios, live streaming, corporate events, houses of worship, sports productions, and...

$2,965.00

Default Title

Subtotal:

Quantity

Description

Blackmagic Design ATEM Television Studio HD8

The Blackmagic Design ATEM Television Studio HD8 is a professional live production switcher designed for television studios, live streaming, corporate events, houses of worship, sports productions, and remote broadcasts. Combining powerful switching, streaming, recording, and audio capabilities in one compact unit, it delivers everything you need to produce high-quality live content with ease. Featuring eight 3G-SDI inputs with support for up to 1080p60, the ATEM Television Studio HD8 lets you connect multiple professional cameras and video sources for seamless live switching. Built-in live streaming and USB webcam output make it easy to broadcast directly to popular streaming platforms or use the switcher with video conferencing software without additional hardware.

Create polished, broadcast-quality productions using advanced features such as a 58-channel Fairlight audio mixer, ATEM Advanced Chroma Keyers, DVE effects, professional transitions, media players, internal recording, and integrated talkback support for smooth communication with camera operators. The switcher also integrates with Blackmagic Cloud, allowing recorded programs to be uploaded automatically for instant access, collaboration, and editing from anywhere in the world.

Redesigned with a lightweight polycarbonate chassis, the ATEM Television Studio HD8 features an improved control layout with professional broadcast buttons, LCD input labels, and intuitive navigation, making live production faster, easier, and more efficient. Whether you're producing live broadcasts, online events, or professional multi-camera productions, the Blackmagic Design ATEM Television Studio HD8 delivers reliable performance, advanced production tools, and professional broadcast quality in one all-in-one solution.

Features

8-Input 3G-SDI 1080p60 Live Switcher
Redesigned Buttons and Layout
Streaming Support, USB & M.2 Recording
Blackmagic Cloud Integration
Webcam Support, Runs Blackmagic OS
Up to 16 Multiview Output Sources
Audio Mixing, Transitions, T-Bar, AUX
Customizable Electronic LCDs
Studio Camera Control
Timecode, MADI, Talkback

Specifications

Mix Effects

Available M/E Layers	8 M/E
Effect Types	1x DVE, Stinger 4x Chroma Key 7x Luma Key
Downstream Keys	2x Chroma, Luma, DVE
Generators	7x Pattern 2x Color
Audio Mixing	58-Channel Mixing

Processing

Switching Type	Pushbutton, Software, T-Bar
Processing Resolution	1080p at 60
Color Processing	10-Bit 4:2:2 RGB

Input

Number of Video Input Sources	8
Video Inputs	8x BNC (3G-SDI) Female
Input Video Format	SDI (10-Bit 4:2:2 RGB) 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Audio Inputs	1x BNC MADI Female 1x 2RCA Stereo Analog Female 2x XLR 3-Pin Analog Female 1x XLR 5-Pin Female
Embedded Audio Input	SDI

Output

Video Output Channels	8
Video Outputs	8x BNC
Output Video Format	SDI (10-Bit 4:2:2 RGB) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Audio Outputs	2x 1/4" TRS Stereo Analog Female
Embedded Audio Output	SDI
Multiview Output	16-Way Multiview
Monitor Output	1x HDMI

Connectivity

Other I/O	1x BNC Reference Input 1x BNC Reference Output 1x BNC Timecode 1x BNC Timecode 4x RJ45 LAN Input/Output 1x RJ45 Talkback Input/Output 1x RJ12 Remote Input/Output 2x USB-C Output
Video Standard Compliance	SMPTE 292M/296M/424M/425M-A/425M-B

IP Encoding/Decoding

IP Video	H.264: 1920 x 1080 at 60p Encoding
Transport Protocols	RTMP, TCP/IP

Hardware

OS Compatibility	macOS 12 or Later / Windows 10 or Later
Processor	Not Specified by Manufacturer
Wireless	No

Power

Power I/O	1x IEC C14 (100 to 240 VAC ) Input 1x XLR 4-Pin (12 VDC ) Input
Power Consumption	Device: 100 W

General

Operating Conditions	32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C up to 90% Humidity
Dimensions	23 x 14.8 x 6.35" / 58.4 x 37.6 x 16.13 cm
Weight	14.9 lb / 6.8 kg
