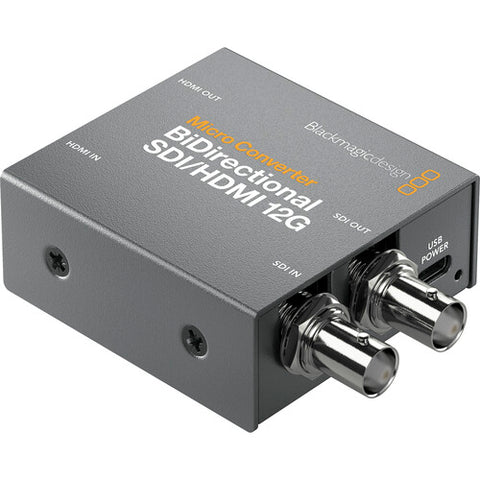

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply

Name: Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply
Brand: Blackmagic Design
Price: 199.00 USD
Availability: OutOfStock

Vendor: Blackmagic Design

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply The Blackmagic Micro Converter BiDirectional SDI/HDMI 12G is a compact, professional-grade converter that makes it easy to connect SDI and HDMI devices within...

$199.00

Default Title

Subtotal:

Quantity

Description

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply

The Blackmagic Micro Converter BiDirectional SDI/HDMI 12G is a compact, professional-grade converter that makes it easy to connect SDI and HDMI devices within the same production workflow. Ideal for broadcasting, live events, filmmaking, AV installations, and streaming, it simultaneously converts SDI to HDMI and HDMI to SDI, allowing each direction to operate with different video standards for maximum flexibility. Supporting SD, HD, and Ultra HD resolutions up to 2160p60, the converter delivers reliable, high-quality signal conversion for modern production environments. Its dual-direction design effectively provides two converters in a single unit, helping simplify equipment setups while reducing the need for additional hardware. The converter also supports camera control conversion for compatible Blackmagic HDMI cameras, including the Blackmagic Pocket Cinema Camera 4K and 6K, enabling remote camera control through SDI-based live production switchers for smoother multicamera workflows. Built for professional performance, it features SDI re-clocking to maintain signal integrity over long cable runs, HDMI timecode support for accurate synchronization, and embedded audio support on both HDMI and SDI connections to ensure audio and video remain perfectly aligned.

Its rugged metal housing is designed to withstand demanding studio and on-location use, while integrated LED indicators provide instant confirmation of power and signal status for quick setup and monitoring. Power is supplied through the convenient USB-C port, allowing the converter to operate from compatible monitors, laptops, desktop computers, projectors, or other USB power sources. For standalone operation, the converter also includes a universal power supply with an international plug adapter set, making it ready for professional use almost anywhere in the world. Whether you're integrating HDMI cameras into SDI broadcast systems, connecting SDI equipment to HDMI displays, or building a flexible hybrid production setup, the Blackmagic Micro Converter BiDirectional SDI/HDMI 12G delivers dependable performance, professional features, and exceptional versatility.

Features

Simultaneous SDI to HDMI & HDMI to SDI
1 x SD/HD/12G-SDI & 1x HDMI Input/Output
Supports up to DCI/UHD 4K60 Video
Blackmagic Camera Control, Tally Support
SDI Re-Clocking/HDMI Timecode
HDMI Copy Protection Support
Automatic Input Signal Detection
Embedded HDMI & SDI Input/Output
LED Video & Power Signal Indicators
A Power Supply Is Included

Specifications

Inputs/Outputs

Video Inputs	1x BNC (12G-SDI) Female 1x HDMI (2.0) Female
Audio Inputs	No
Video Outputs	1x BNC (12G-SDI) Female 1x HDMI (2.0) Female
Audio Outputs	No
Other I/O	1x USB-C Firmware Input (Shared Power)
Expansion Slots	No

Format Support

Input Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Output Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 29.97 fps 576i / 625 lines at 25 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Embedded Audio	HDMI/SDI

Standards

Video Standard Compliance	SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support	Yes: Version 2.2
HDR Support	Not Specified by Manufacturer
HDMI CEC	Yes

Hardware

Tally Light	Yes
Wireless	No
OS Compatibility	macOS 10.15.15 or Later Windows 11.1 or Later

Power

Power I/O	1x USB-C (4.4 to 5.2 VDC ) Input
Power Consumption	Device: 5 W

Environmental

Operating Temperature	32 to 72°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%

General

Dimensions	3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm
Weight	6.13 oz / 174 g
