Clear-Com HLI-2W2, HelixNet 2-wire module

Clear-Com HLI-2W2, HelixNet 2-wire module

Clear-Com HLI-2W2 features a pin-out configuration to connect both Clear-Com and/or RTS analog partyline systems to a HelixNet digital partyline system. Clear-Com HLI-2W2 also has 2-wire Clear-Com/RTS dual party-line interface module. Does not power the party-lines attached to HLI-2W2 modules. These require Encore master station PSUs such as the PS-702 or MS-702 or RTS equivalent power supply.

Clear-Com HLI-2W2 has a 2-wire Clear-Com/RTS dual party-line interface module. Does not power the party-lines attached to HLI-2W2 modules. These require Encore master station PSUs such as the PS-702 or MS-702 or RTS equivalent power supply.

Pin Information
Pin Function
1 Ground
2 Power (Option for RTS mode: power and audio)
3 Audio

Clear-Com HLI-2W2 Product Features

• 2-Wire Interface Module
• Clear-Com/RTS assignment from HMS-4X main station

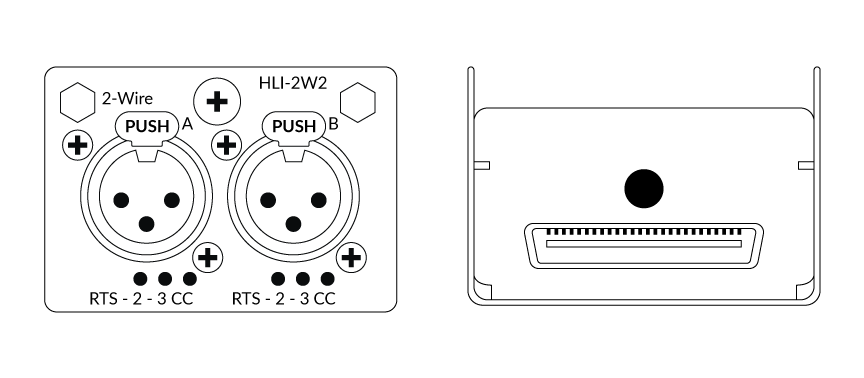

• Two 3-pin XLR-F connectors per module

Connectors
Intercom Line: (2) 3-pin XLR–F

Partyline
Maximum Level Before Clipping: 6dBu

Nominal Input Level: -18dBu (C-C), -12dBu (RTS)

Input Impedance: >= 10KΩ bridging

The following specified for a route to four-wire input at 0dBu in:

Frequency Response: 100 Hz – 10 kHz ±3dB

Distortion: <0.2% THD @ 1kHz

Noise: <-55dBu

The following specified for a route from a four-wire output at 0dBu out:

Frequency Response: 40 Hz – 10 kHz ±3dB

Distortion: <0.2% THD @ 1 kHz

Noise: <-75dBu

Auto-nulling and Echo Cancellation RTS/Clear-Com Selectable

Termination: External

Power: 30V max external

Dimensions
2.24 x 7.36 x 1.54 in (HxWxD)

(57 x 187 x 39 mm)

Weight
13 oz (0.38 kg)
