ControlSpace CC-16 Zone Controller Used with: ControlSpace ESP
Vendor: Bose
Description ControlSpace CC-16 Zone ControllerUsed with: ControlSpace ESP The Bose ControlSpace CC-16 Zone Controller is crafted as an elegant wall-mounted device professionally designed to provide end-user the control they need of ControlSpace systems. Custom...
Available

ControlSpace CC-16 Zone Controller
Used with: ControlSpace ESP
The Bose ControlSpace CC-16 Zone Controller is crafted as an elegant wall-mounted device professionally designed to provide end-user the control they need of ControlSpace systems. Custom programming is allowing the CC-16 to control a range of system elements, from system configurations or switching remote audio sources to selecting "scenes". The Bose® ControlSpace CC-16 features four buttons and a bitmap LCD for controlling and displaying the system settings.
Features
- Elegant styling with intuitive controls for end user operation
- 122 x 32 pixel backlit blue LCD
- Sealed VOLUME +/- and SELECT +/- pushbuttons
- Simplified drag-and-drop setup using ControlSpace® Designer™
- DIP switch addressing on back of unit
- Programmable control of system elements (switching of audio sources, system configurations)
- Supports programming of easy-to-select scenes—allowing multiple room usage scenarios to be recalled from the CC-16 by end users
- Customizable on-screen wording provides easier system operation
- Programmable software lock out
- Fits into a standard 2-gang electrical wall box
Technical Specifications
-
Connectors
Fixed 6-position terminal connector for power (Vin+, GND) and RS-485 (A, B)
-
Maximum Cable Length
2000' (609 m), twisted pair, daisy-chain wired configuration
-
Maximum Number of Units Per System
15 per ControlSpace ESP processor
-
Power Supply Requirement
8 - 18 VDC, 100 mA
Related Product
Prev
Next

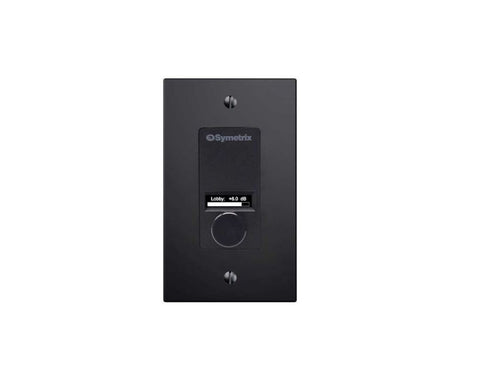

Symetrix W1, Black, Euro IP remote with push-button rotary encoder, OLED display, PoE, Decora single-gang Euro version, black
Symetrix W1, Black, Euro IP remote with push-button rotary encoder, OLED display, PoE, Decora single-gang Euro version, black Features a...
$0.00
Symetrix CS SymVue App CS SymVue App, 5 licenses. Electronic distribution. No media
Symetrix CS SymVue App CS SymVue App, 5 licenses. Electronic distribution. No media Network-based AV Management. Control Server is a...
$181.00
Symetrix CS Mixer App CS Mixer App, 5 licenses. Electronic distribution. No media
Symetrix CS Mixer App CS Mixer App, 5 licenses. Electronic distribution. No media Network-based AV Management. Control Server is a...
$181.00
Symetrix Control Server Browser-based SymVue server with integrated Wi-Fi (802.11a/b/g/n), 5 Mixer App licenses, 5 SymVue App licenses, 1/2 rack width
Symetrix Control Server Browser-based SymVue server with integrated Wi-Fi (802.11a/b/g/n), 5 Mixer App licenses, 5 SymVue App licenses, 1/2...
$2,324.00
Symetrix xControl Control endpoint with 8 GP inputs, 16 GP outputs, 2 RS232, PoE, 1/2 RU
Symetrix xControl Control endpoint with 8 GP inputs, 16 GP outputs, 2 RS232, PoE, 1/2 RU External Control Plus. Designed...
$1,076.00
Symetrix RC-3 Remote Control Black GPI remote with analog potentiometer, Decora single-gang, black
Symetrix RC-3 Remote Control Black GPI remote with analog potentiometer, Decora single-gang, black This basic analog remote control features a...
$115.00
Symetrix RC-3 Remote Control White GPI remote with analog potentiometer, Decora single-gang, white
Symetrix RC-3 Remote Control White GPI remote with analog potentiometer, Decora single-gang, white This basic analog remote control features a...
$115.00
Symetrix ARC-PSe Power supply for ARC remotes, 1/2 rack width, mounting hardware sold separately
Symetrix ARC-PSe Power supply for ARC remotes, 1/2 rack width, mounting hardware sold separately The ARC-PSe provides serial control and...
$635.00
Symetrix ARC-EX4e Control expander for ARC-K1e or ARC-SW4e with 4 buttons, 4 LEDs, Decora single-gang, faceplate not included
Symetrix ARC-EX4e Control expander for ARC-K1e or ARC-SW4e with 4 buttons, 4 LEDs, Decora single-gang, faceplate not included The ARC-EX4e...
$231.00

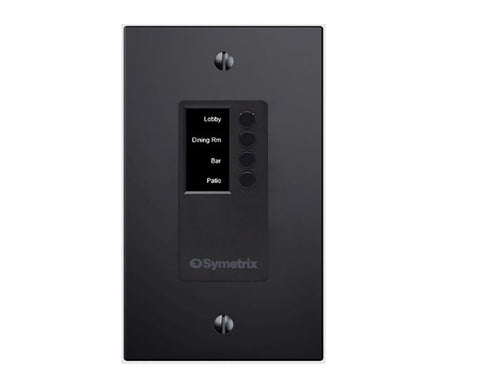

Symetrix ARC-SW4e Black ARC remote with 4 buttons, 4 LEDs, Decora single-gang, black
Symetrix ARC-SW4e Black ARC remote with 4 buttons, 4 LEDs, Decora single-gang, black Four push-button wall panel remote. The ARC-SW4e...
$329.00

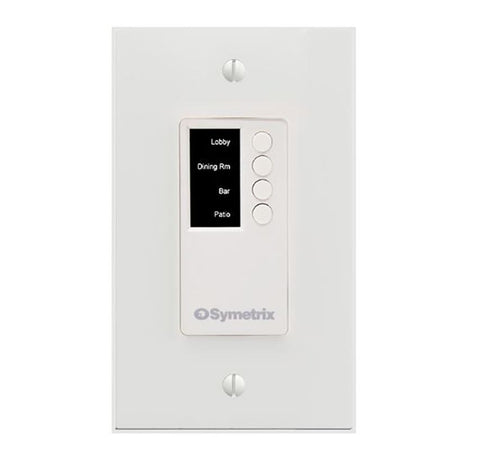

Symetrix ARC-SW4e White ARC remote with 4 buttons, 4 LEDs, Decora single-gang, white
Symetrix ARC-SW4e White ARC remote with 4 buttons, 4 LEDs, Decora single-gang, white Four push-button wall panel remote. The ARC-SW4e...
$329.00

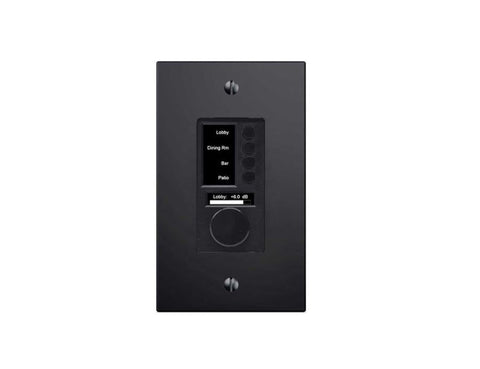

Symetrix ARC-K1e Black ARC remote with rotary encoder, 2 buttons, LED meter, Decora single-gang, black
Symetrix ARC-K1e Black ARC remote with rotary encoder, 2 buttons, LED meter, Decora single-gang, black Rotary encoder remote with two-bank...
$329.00

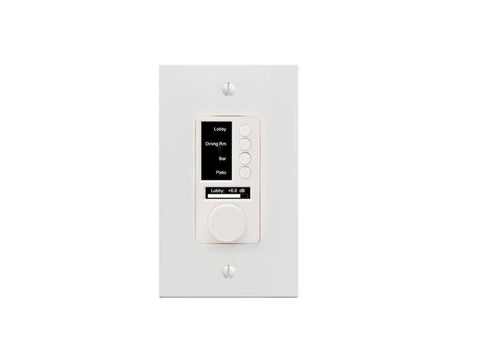

Symetrix ARC-K1e White ARC Remote with rotary encoder, 2 buttons, LED meter, Decora single-gang, white
