DBX DriveRack RTA Mic w/clip RTA-M

DBX DriveRack RTA Mic w/clip RTA-M

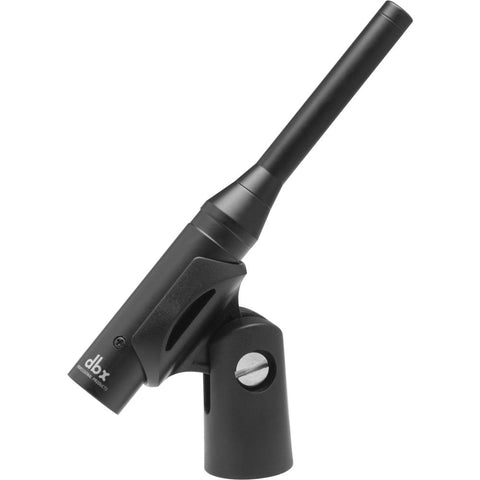

The RTA-M Reference Microphone designed from DBX is an omnidirectional mic designed for using with DBX DriveRack series real-time analyzers (sold separately) for providing an acoustic picture of a room. It can be used for capturing audio and fine-tune your sound system performance to match the response characteristics of the room for live sound and recording applications. Additionally, the RTA-M is built with a metal housing, requires phantom power (9 to 52 VDC), and includes a mic clip along with a hardcover case.

Dbx RTA-M Specs

• Element Type: Back-electret condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20 Hz to 20 kHz
• Impedance: 250 Ohms ± 30% (@ 1 kHz)
• Sensitivity: -63 dB +-3 dB (0 dB = 1 V/microbar @ 1 kHz indicated by open circuit )
• Operating Voltage: 9 to 52 VDC phantom power
• Dimensions (Ø x L): 0.4 x 5.7" / 1.0 x 14.5 cm
• Weight: Not specified by manufacturer

Packaging Info

• Package Weight: 1.535 lb
• Box Dimensions (LxWxH): 12.9 x 10.75 x 4"
