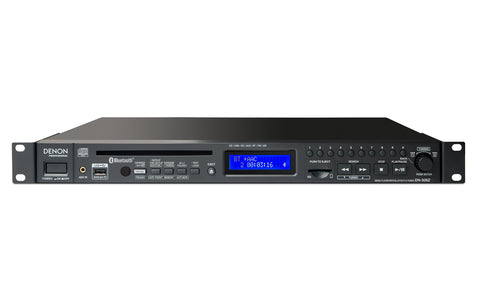

Denon Professional DN-300Z, CD, SD, USB Player with BT and AM/FM Receiver, Single Play, Balanced Outputs

Denon Professional DN-300Z, CD, SD, USB Player with BT and AM/FM Receiver, Single Play, Balanced Outputs

The Denon Professional DN-300Z is unique because it combine the best of disc, and the solid-state media playback. The Denon Professional DN-300Z is all in one audio player that you can count on when the whole room is listening. Denon Professional DN-300Z is best in front-of-house, education, music and rehearsal studios, houses of worship, restaurants and many more, the Denon Professional DN-300Z is the answer to every request-all consolidated into a compact 1RU design. The Denon Professional DN-300Z can plays the media of both today and tomorrow, in formats that are easily accessible to any user by extending Denon Professional's dedication to powerful solutions that are very easy to use.

In Denon Professional DN-300Z you can really expect the unexpected. So go ahead, throw anything you want at it: Front loading media slots (CD w/single-play mode, USB, SD/SDHC) that can deliver intuitive playback of today's familiar mass-storage mediums. Also, the Denon Professional DN-300Z can go wireless with long-range Bluetooth audio connectivity (Up to 100 feet) and instant recall of up to 8 devices such as smartphones and tablets. Another thing in Denon Professional DN-300Z its support for CD-DA, MP3, WAV and AAC file formats, the Denon Professional DN-300Z is the master-of-all-trades player that excels when the unpredictable occurs. The Denon Professional DN-300Z features both RCA audio outputs and balanced XLR outputs. The balanced outputs are much-needed feature in the professional/commercial sector, since they enable long connection cable that runs without any increase in stray noise pickup.

The front panel’s backlit LCD screen of the Denon Professional DN-300Z provides at-a-glance status of playback modes and content, providing clear readouts to even the most novice user. The Denon Professional DN-300Z is designed to adapt to any scenario, switching formats on the fly has never been easier. Media categories and their respective controls are grouped together so users will never have to wrestle with deep menus or use the instruction manual to perform basic functions. Direct access to CD tracks, global transport controls (play/pause/search), and a rotary-push encoder translate to fast, hands-on command when you need to get to your content.

An IEC-weighted AC power port means space-saving connection to power sources—no bulky transformers or “wall warts” required. When installed into a client’s rack, the DN-300Z provides the capability, reliability, and versatility to tackle any playback task, from one-off requests to rehearsed program material, in an intuitive, tidy package. The DN-300Z media player expects the unexpected. But you demand it.

Denon Professional DN-300Z Main Features

• Super-fast loading, slot-in CD player
• Supports removable USB thumb and HDDs, SD/SDHC cards
• Wireless audio playback from tablets and smartphones via Bluetooth
• Selectable Power-On-Play mode automatically plays USB, SD or CD tracks when powered up — simply turn it on
• Up to 100 foot (30m) wireless Bluetooth range
• Plays CD-DA, MP3, WAV, and AAC files
• 3.5mm (1/8-inch) input for audio playback of any audio device with a 3.5mm output
• AM/FM Tuner w/ dedicated audio out for multi-room use
• RCA and balanced XLR audio outputs
• 10-key direct track access
• Random, repeat, and single play playback modes
• Remembers up to 8 Bluetooth devices for simple switching of wireless audio sources
• Folder only and All play modes
• Lockable front-panel keeps program material from being interrupted
• IR controllable with included, compact remote
• 1RU chassis with removable rack ears
• Detachable IEC-weighted AC inlet
• 100-220v switching power supply

Playable formats, file systems
CD: CD-DA (CD-TEXT), CD-ROM (ISO9660), CD-R, MP3-CD
USB: FAT16 / FAT32
SD/SDHC: FAT16 / FAT32
Supported WAV format
Extension: WAV
Bitrate: 16–bit
Samplig Frequency: 44.1 kHz

Supported AAC format
Extension: M4A
Compression method: AAC-LA
Bitrate: 32 to 320 kbps and VBR
Sampling Frequency: 44.1 kHz

Supported MP3 format
Extension: MP3
Bitrate: 32 to 320 kbps and VBR
Sampling Frequency: 44.1 kHz

Number of channels: 2 (stereo), 1 (mono)
Audio frequency characteristics: 20 Hz - 20 kHz (± 1.0dB)
S/N ratio: More than 95 dB (A-Weighted)
Total harmonic distortion: Less than 0.01%
Dynamic Range: More than 85 dB
Channel Separation: More than 80 dB

Bluetooth
Version 3.0
Output Class 2
Range: Up to 100 feet (30m) with included antenna
Supported Codec: SBC, MP3, AAC, aptX
Supported Profiles: A2DP, AVDTP 1.0, AVCTP 1.3, AVRCP 1.0, SSP
Device memory: Recall up to 8 pairings instantly

Input
Aux in: TRS (3.5mm)
Input impedance: Over 10 kΩ
Maximum input level: 1 Vrms
Maximum output level: 3 Vrms

Output
Analog RCA terminals
Load impedance: Over 10 kΩ
Output level: 2 Vrms at 10 kΩ load

Balanced XLR
Output Level: +8 dBu
Load impedance: > 10 kΩ


Tuner
Tuner (Americas)
FM receiving range: 87.5 MHz - 107.9 MHz
AM receiving range: 522 kHz - 1710 kHz

Tuner (EU and Asia Pacific)
FM receiving range: 87.5 MHz - 108.0 MHz
AM receiving range: 522 kHz - 1611 kHz

Tuner (Japan)
FM receiving range: 76.0 MHz - 90.0 MHz
AM receiving range: 522 kHz - 1629 kH

Useable Sensitivity (FM): 30 dBuV/m
Useable Sensitivity (AM): 60 dBuV/m
Tuner channel separation: 20 dB (0 kHz)
Tuner S/N ratio (FM): > 40 dB
Tuner S/N ratio (AM): > 30 dB
THD+N (1 kHz): 3.0%

Operating Environment
Operating temperature: 5-35 degrees Celcius (41-95 degrees Fahrenheit)
Operating humidity: 25-85%, no condensation

General
Power Supply
USA & Canada: AC 120V, 60 Hz
EU, UK, APAC: AC 230V, 50/60 Hz
Japan: AC 100V, 50/60 Hz

Power consumption: 30W
Dimensions: 19” x 13.7” x 1.73” (483 x 347 x 44mm) with rack ears
Weight: 7.94 lbs. / 3.6 kg

Others
Max storage capacity: Up to 2TB
Max file size: 2 GB
Max number of files per folder: 999
Max number of folders: 999
Max folder heirarchies: 8
Max file/folder name length: 255 characters
