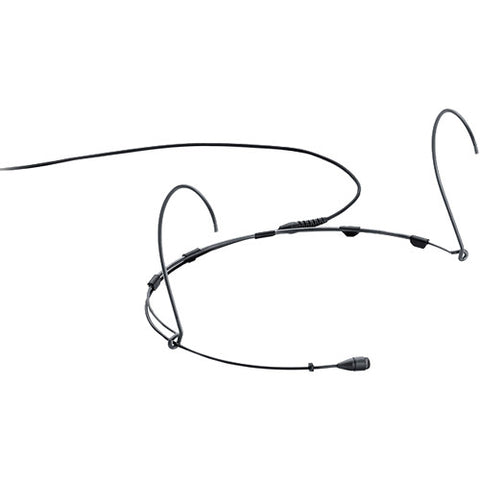

DPA 4066-OL-A-B10-LH (Black)

DPA 4066-OL-A-B10-LH, d:fine™ 4066 Omni Headset Mic, Black, TA4F Mini-XLR, Headset Over-ear Microphone for Live Production and Churches

Vendor: DPA
Descriptions DPA 4066-OL-A-B10-LH, d:fine™ 4066 Omni Headset Mic, Black, TA4F Mini-XLR, Headset Over-ear Microphone for Live Production and Churches The DPA 4066-OL-A-B10-LH is a color black featuring its Omnidirectional Headset Microphone with a Hardwired TA4F...
$769.95
Title
Descriptions

DPA 4066-OL-A-B10-LH, d:fine™ 4066 Omni Headset Mic, Black, TA4F Mini-XLR, Headset Over-ear Microphone for Live Production and Churches

The DPA 4066-OL-A-B10-LH is a color black featuring its Omnidirectional Headset Microphone with a Hardwired TA4F Connector for Shure Wireless Systems from DPA Mics. The DPA 4066-OL-A-B10-LH microphone is designed for theater applications and can be mounted on either right ear or left ear, and it depends on your preference. Also, the DPA 4066-OL-A-B10-LH features a double vent protection system that works in a tandem with a drop stopper and water-resistant materials in the mic that help to maintain the good condition and to prevent damage from humidity. Another best thing in DPA 4066-OL-A-B10-LH it has a high and soft boost grids along with 5 foam windscreens are included.

DPA 4066-OL-A-B10-LH Main Features

  • Left- or Right-Ear Mounting
  • Humidity-Resistant Design
  • Silicone Hose-Covered Earhooks
  • For Theater Applications
Specifications
Polar Pattern  Omnidirectional
Principle of Operation  Pressure
Cartridge Type  Pre-polarized condenser element with vertical   diaphragm
Frequency Range  Soft-Boost Grid: 20 Hz to 20 kHz +/-2 dB, 3 dB   soft boost at 8 to 20 kHz
 High-Boost Grid: 20 Hz to 20 kHz +/-2 dB, 10 dB   boost at 12 kHz
Sensitivity  6 mV/Pa, -44 dB re. 1 V/Pa (nominal, +/-3 dB at 1   kHz)
Equivalent Noise Level  A-Weighted:
 Typical: 26 dBA re. 20 µPa
 Maximum: 28 dBA

 ITU-R BS.468-4:
 Typical: 38 dB
 Maximum: 40 dB
S/N Ratio  68 dBA, 1 kHz at 1 Pa (94 dB SPL):
Total Harmonic Distortion (THD)  <1% THD up to 123 dB SPL peak
 <1% THD up to 120 dB SPL RMS sine
Dynamic Range  Typical 97 dB
Maximum Sound Pressure Level (SPL)  Peak Before Clipping: 144 dB
Output Impedance  30 to 40 Ω
Cable Drive Capability  Up to 984' (300 m)
Connector  Hardwired TA4F
Temperature Range  14 to 113°F (-10 to 45°C)
Relative Humidity  Up to 90%
Cable Length  3.9' (1.2 m)
 Cable Diameter: 0.06" (1.6 mm)
Microphone Diameters  0.21" (5.4 mm)
Weight  0.5 oz (14 g)
