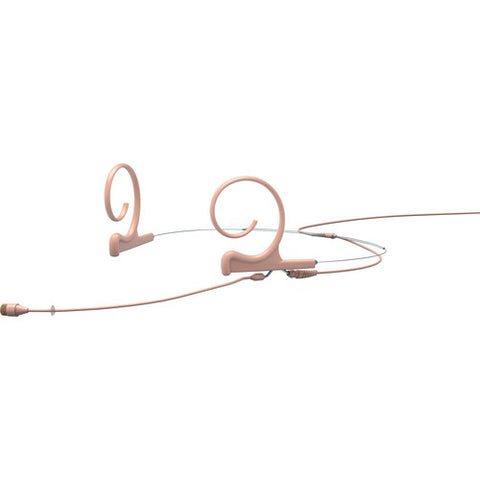

DPA 4266-OC-F-F03-LH. d:fine™ CORE 4266 Omni Flex Headset Mic, 110 mm Boom, Beige, 3-pin LEMO, Headset Over-ear Microphone for Live Production and Churches
Vendor: DPA
Available
DPA 4266-OC-F-F03-LH. d:fine™ CORE 4266 Omni Flex Headset Mic, 110 mm Boom, Beige, 3-pin LEMO, Headset Over-ear Microphone for Live Production and Churches
The DPA 4266-OC-F-F03-LH features its color beige Slim Omnidirectional Flex Headset Microphone, 110mm Boom with 3-pin LEMO from DPA and it combines the sound of the d:fine 4066 omnidirectional capsule and Core amplifier in the lightweight and flexible two-ear headset. The DPA 4266-OC-F-F03-LH can also be used when talent needs to be mic'd quickly and easily. Also, the DPA 4266-OC-F-F03-LH is built in lightweight and comfortable design means the person wearing the microphone will barely notice its presence, making it well suited to conference, speech and active live-performance applications.
In addition, the DPA 4266-OC-F-F03-LH polar patterned can offers a 14 dB decrease in a total harmonic distortion and a 4 dB increase in dynamic range over the Legacy version. The DPA 4266-OC-F-F03-LH is ergonomically designed to fit comfortably; the best thing is it can easily adjusts to fit any ear size and head shape,while at the same time, it mounts securely and is hardly visible. By rotating the boom and the ear hook, the DPA 4266-OC-F-F03-LH can be used on either the left or the right ear. In addition, the connector splits the cable from the mic boom, that allowing you to change broken cables and/or wireless connectors quickly. Also, the boom arm is also interchangeable and three windscreens are included.
IP58 Certified
All CORE by DPA technology microphones are IP58 certified. This durability is achieved through a number of defense mechanisms:
- Water-repellant nano-coating of the cover and housing
- Hermetic sealing of the sensitive amplifier at the core of the mic
- Dual gold plating of the diaphragm
DPA 4266-OC-F-F03-LH Main Features
- Pristine audio quality
- Lightweight and flexible
- Easy mounting to the left or right
- Minimal visual impact
- Resistant to humidity
- Flexible adapter system fits most professional wireless systems
- Two-Ear Wearing Style
- For Stage and Television
- 20 Hz to 20 kHz Frequency Range
- Round Capsule
Sound Field | Mono |
Operating Principle | Pressure Operated |
Capsule | Condenser |
Polar Pattern | Omnidirectional |
Frequency Range | 20 Hz to 20 kHz |
Maximum SPL | 144 dB SPL Peak |
Impedance | 40 Ohms |
Sensitivity | 6 mV/Pa at 1 kHz |
Dynamic Range | 111 dB A-Weighted |
Signal-to-Noise Ratio | 68 dB A-Weighted |
Equivalent Noise Level | 28 dB A-Weighted |
THD | < 1% |
CMRR | 60 dB |
Output Connector | 3-Pin LEMO |
Cable Length | 4.1' / 1.25 m |
Operating Voltage | 5 to 50 V |
Operating Current Consumption | 1.5 mA |
Operating Humidity | 0 to 90% |
Length | 0.5" / 1.27 cm |
Diameter | 0.21" / 5.33 mm |
