Draper 140107CDQU Access V, 100", HDTV, CineFlex White XT700V, 110 V, with Quiet Motor & LVC-IV Low Voltage Controller

Vendor: Draper
Draper 140107CDQU Access V, 100", HDTV, CineFlex White XT700V, 110 V, with Quiet Motor & LVC-IV Low Voltage Controller The Draper 140107CDQU is professionally designed as the perfect choice for use in classrooms, or...
$3,643.00 $4,554.24
Title

Draper 140107CDQU Access V, 100", HDTV, CineFlex White XT700V, 110 V, with Quiet Motor & LVC-IV Low Voltage Controller

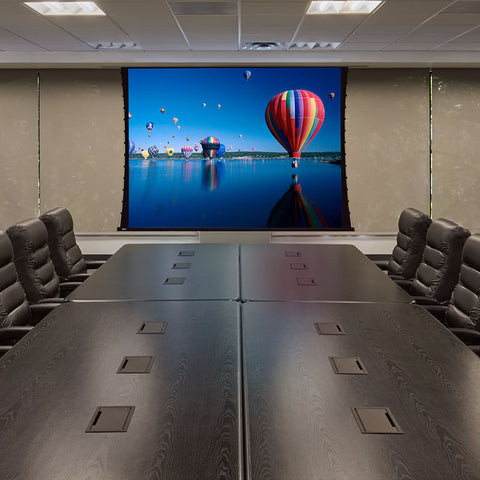

The Draper 140107CDQU is professionally designed as the perfect choice for use in classrooms, or home theaters, boardrooms, or mid-sized training rooms. This Access V comes capable of offering a premium electric projection screen for use in small- to medium-sized spaces. It comes with its tab-tensioned screen that's made for providing a perfectly flat viewing surface that comes along with better image quality. RF welded tabs are intended for the creation of a more durable seal that is eliminating the stickiness and separation. The perfectly created placement of the ceiling-recessed case during the initial phase of construction is intended for the elimination of job site damage and allowing the installation of the screen at a later time. The bottom closure panel is made for providing access to all components for having an easier service and maintenance.

  • Surface Material: CineFlex White XT700V
  • Image Format: HDTV 16:9
  • Diagonal (Image Area): 92" (45" x 80")
  • Voltage: 110V
  • Motor Options: Quiet & Low Voltage LVC-IV
  • Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 16' (488 cm) wide, depending on surface selection.
  • The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top of the case allow for adjustments for mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
  • Low voltage, video interface or other controls can be built into housing for below ceiling access.
  • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
  • White case standard, black available upon request.
  • Custom sizes available
