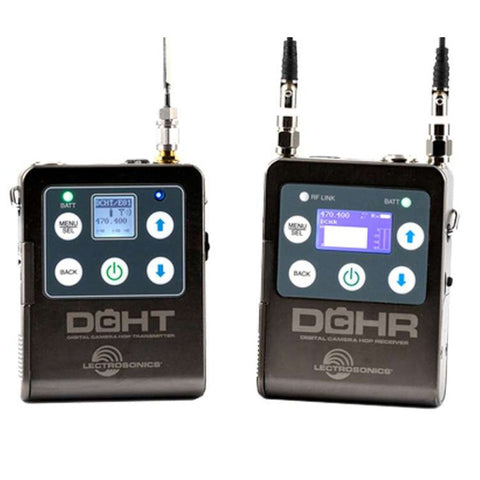

The Lectrosonics DCHR-B1C1 is a compact digital camera hop receiver designed for professional film, television, sports, and reality production. When paired with the DCHT-B1C1 transmitter, it forms a reliable digital stereo camera hop system with secure encrypted transmission. The receiver also works with M2T and M2T-X digital stereo transmitters, as well as D-Squared Series mono digital transmitters such as the DBu, DHu, and DPR. Designed for compact camera setups, the DCHR-B1C1 combines a small, camera-friendly form factor with a wide 537–691 MHz tuning range, advanced antenna diversity, and AES-256-CTR encryption. Its diversity system switches antennas during digital packet headers to maintain reliable reception, minimize dropouts, and extend operating range. A single locking TA5M output connector can be configured for either two independent balanced microphone/line-level analog outputs or a two-channel AES3 digital output. Separate output cables are available to accommodate different camera input configurations. The receiver features a high-resolution LCD, membrane controls, RF scanning, and two-way IR synchronization for fast and accurate system setup. Its headphone monitoring circuit uses a high-quality stereo amplifier capable of driving demanding headphones at useful levels, even in noisy production environments. Powered by two AA batteries, the DCHR-B1C1 provides up to 8 hours of operation, while the optional LRSHOE kit allows convenient mounting to a camera cold shoe.

Features

• Miniature digital camera hop receiver
• Designed for professional film, TV, sports, and reality production
• Forms a stereo camera hop system with the DCHT-B1C1
• Compatible with:
  • DCHT-B1C1
  • M2T digital stereo transmitter
  • M2T-X encrypted digital stereo transmitter
  • D-Squared Series mono transmitters, including DBu, DHu, and DPR
• Wide 144 MHz tuning bandwidth
• Frequency range of 537–691 MHz
• Advanced antenna diversity switching for improved reception reliability
• Designed to reduce dropouts and extend operating range
• AES-256-CTR encryption
• Four selectable encryption key types
• Single locking TA5M audio output
• Configurable for:
  • Two independent balanced mic/line-level outputs
  • Two-channel AES3 digital output
• Optional output cables for different camera input configurations
• High-resolution LCD display
• Membrane-switch controls
• Built-in RF scanning
• Two-way IR synchronization for rapid transmitter setup
• High-quality stereo headphone amplifier
• Powerful headphone output for use in noisy environments
• Up to 8 hours of operation on two AA batteries
• Optional LRSHOE kit for camera cold-shoe mounting
