Lectrosonics L Series ZS-LRLMb Camera-Mount Wireless Omni Lavalier Microphone System

Vendor: Lectrosonics
Lectrosonics L Series ZS-LRLMb Camera-Mount Wireless Omni Lavalier Microphone System The Lectrosonics L Series ZS-LRLMb is a compact, professional wireless microphone system designed for filmmakers, journalists, videographers, and ENG professionals who need broadcast-quality...
$3,448.00 $3,827.00
Frequency Band

Lectrosonics L Series ZS-LRLMb Camera-Mount Wireless Omni Lavalier Microphone System

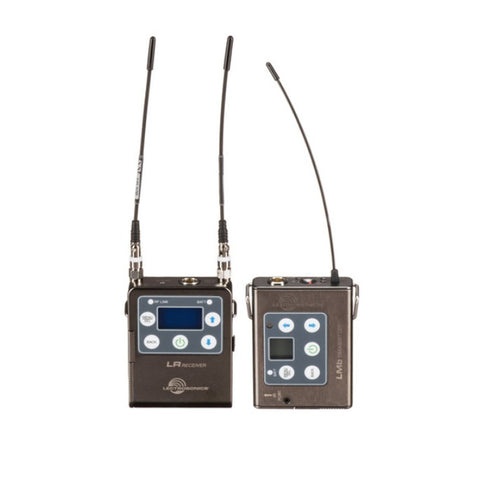

The Lectrosonics L Series ZS-LRLMb is a compact, professional wireless microphone system designed for filmmakers, journalists, videographers, and ENG professionals who need broadcast-quality sound in a portable camera-mounted setup. Featuring a wide 75 MHz tuning bandwidth and Lectrosonics Digital Hybrid Wireless technology, the system provides clean, natural audio and dependable wireless performance in challenging RF environments. Designed for lightweight on-camera operation, the ZS-LRLMb is well suited for DSLR, Micro Four Thirds (4/3), compact 4K, and other small HD cameras. The system includes the M152/5P omnidirectional lavalier microphone, an LMb bodypack transmitter with fixed 50 mW RF output, and the compact LR camera-mount receiver.

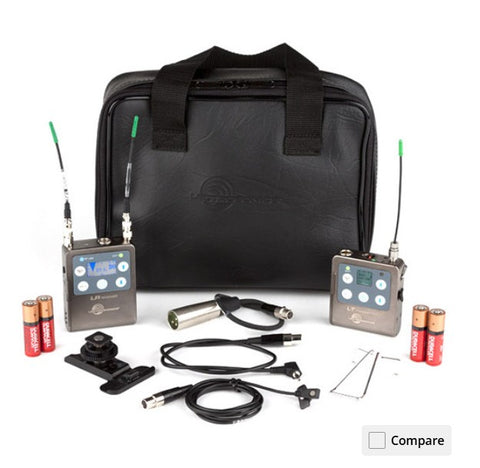

The kit includes the necessary cables and accessories for a complete, ready-to-use wireless solution, providing a practical and cost-effective entry point into Lectrosonics' professional wireless ecosystem. Its compact form factor makes it particularly useful for mobile production, documentary work, ENG, interviews, and other field applications where portability is important. Built in the USA, the system features rugged aluminum housings and straightforward controls for dependable field operation. Compatibility modes allow the ZS-LRLMb to work with older Lectrosonics analog and IFB systems, as well as select third-party wireless systems. It is also fully compatible with Digital Hybrid Wireless systems, providing flexibility for integrating the kit into existing professional audio workflows.

Features

  • For Professional Filmmaker, Videographer
  • M152/5P Omnidirectional Lav Mic
  • Compact LMb Bodypack Transmitter
  • SmartDiversity Camera-Mount Receiver
  • 3072 Auto-Scan Frequencies
  • Fixed 50mW RF Output Power
  • Compander-Free Digital Hybrid Audio
  • Advanced Controls for Flexible Use
  • 4-Hr AA Batteries
  • Up to 30 Mics on Set / 250' Range
Key Specs
Wireless Technology Analog UHF
Diversity Yes
Max Operating Range 250' / 76.2 m (Line of Sight)
Receiver Type 1x Camera-Mount
Number of Audio Channels 1
Included Transmitters 1x Bodypack
Microphone Type 1x Lavalier
Included Charging Case No
System
Wireless Technology Analog UHF
Diversity Yes
RF Frequency Band A1: 470.1 to 537.575 MHz, B1: 537 to 607 MHz
Number of RF Channel Frequencies 3072
Max Operating Range 250' / 76.2 m (Line of Sight)
Max Transmitters per Band 30
Encryption No
Built-In Recorder No
Timecode Support No
Mobile App Compatible No
Receiver
Receiver Type 1x Camera-Mount
Mounting Options Belt Clip, Shoe-Mount (with Included Hardware)
Antenna 2x Removable Flexible Whip (Top-Mount)
Number of Audio Channels 1
Audio I/O 1x TA3M/Mini-XLR 3-Pin Balanced Output
Network I/O No
USB/Lightning Connectivity 1x Micro-USB Female (Host Connection)
Frequency Response 32 Hz to 20 kHz ±1 dB
Display Backlit LCD
Power Requirements Battery, Proprietary Power Adapter
Transmitters
Included Transmitters 1x Bodypack
RF Output Power 50 mW
Antenna Fixed Flexible Whip
Input Level Microphone / Line
Audio I/O 1x TA5M/Mini-XLR 5-Pin Male Input
Bias/Plug-In & Phantom Power 5 V Bias/Plug-In Power
0 to 4 V Servo Bias
No Phantom Support
USB I/O 1x Micro-USB (Host Connection)
Muting Programmable Mute Switch
Gain Range 44 dB
Auto-Level/Gain No
Frequency Response 90 Hz to 20 kHz ±1 dB
Sync Method IR
Display Backlit LCD
Microphones
Microphone Type 1x Lavalier
Polar Pattern Omnidirectional
Frequency Response 20 Hz to 20 kHz
Sensitivity 10 mV/Pa
Output Connector 1x TA5F/Mini-XLR 5-Pin Female
Color Black
Power
Receiver Battery Type 2x AA (Included)
Receiver Battery Life 4 Hours (Alkaline)
Transmitter Battery Type 2x AA (Included)
Transmitter Battery Life 4 Hours (Alkaline)
Included Charging Case No
Charging Case
AC/DC Power Adapter No
Physical
Environmental Resistance No
Housing Aluminum
Dimensions Receiver:
3.2 x 2.4 x 0.8" / 81.3 x 61 x 20.3 mm

Transmitter:
3.2 x 2.4 x 0.8" / 81 x 61 x 20 mm
Weight Receiver:
7.8 oz / 221 g (with Antenna, Batteries)

Transmitter:
5 oz / 141 g (with Antenna, Batteries)
