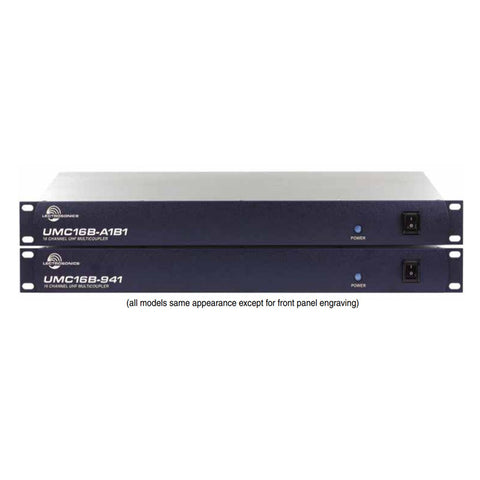

The Lectrosonics UMC16B is a professional RF multi-coupler designed to distribute signals from two antennas to multiple diversity receivers, significantly reducing the number of antennas and RF cables required in multi-channel wireless systems. Its advanced RF architecture combines high-quality ceramic filtering, low-noise amplification, and high-intercept-point circuitry to maintain excellent receiver performance while minimizing interference and intermodulation. The UMC16B can support up to eight diversity receivers or 16 non-diversity receivers across its operating passband. Its precision Wilkinson strip-line splitter provides isolated RF outputs, helping prevent unwanted RF coupling between connected receivers. The unit offers flexible power options for both mobile and fixed installations and features a rugged 19-inch rack-mount design with secure locking connectors. Individual auto-reset fuses provide protected power distribution to connected receivers while the architecture helps eliminate ground loops and AC hum.

Features

• Professional RF multi-coupler for multi-channel wireless systems
• Distributes signals from two antennas to multiple receivers
• Supports up to 8 diversity receivers
• Supports up to 16 non-diversity receivers
• Reduces the number of antennas and RF cables required
• High-quality ceramic RF filtering suppresses unwanted signals above and below the passband
• Low-noise RF amplifier maintains receiver sensitivity and performance
• High IP3 (third-order intercept point) minimizes intermodulation products
• Precision Wilkinson strip-line RF splitter/isolator provides isolated receiver outputs
• Termination-independent splitter prevents unused or disconnected outputs from significantly affecting other channels
• Unused RF outputs can be terminated with 50-ohm dummy loads for optimum performance
• Unused outputs may remain unterminated with only a small effect on other output levels
• Individual auto-reset fuses provide protection for connected receivers
• RF and power distribution architecture helps eliminate ground loops and AC hum
• Flexible power options for mobile and fixed installations
• Locking rear-panel power connector provides a secure power connection
• Rugged 19-inch rack-mount chassis
• Designed for professional wireless microphone and multi-channel RF systems
