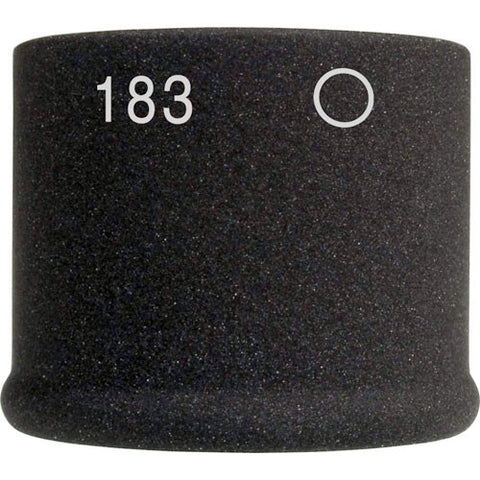

Neumann KK 183 NX, Omnidirectional capsule head, diffuse field equalized, capsule woodbox, nextel.

Vendor: Neumann
Descriptions Neumann KK 183 NX, Omnidirectional capsule head, diffuse field equalized, capsule woodbox, nextel. Compatible with KM A (analog) or KM D (digital) output stages. The Neumann KK 183 NX with Nickel Color...
$699.00
Title

Neumann KK 183 NX, Omnidirectional capsule head, diffuse field equalized, capsule woodbox, nextel. Compatible with KM A (analog) or KM D (digital) output stages.

The Neumann KK 183 NX with Nickel Color feature its omnidirectional capsule for the KM series digital microphone. The Neumann KK 183 NX omnidirectional polar pattern features a uniform frequency response and pick up area at the frontal and off-axis sections of the capsule. The Neumann KK 183 NX is user installable and features a non-reflective finish.

Neumann KK 183 NX Main Features

  • Directional characteristic: omni (diffuse-field equalized)
  • Part of the modular microphone system KM A/D
  • Comprehensive range of accessories
Acoustical operating principle Pressure transducer
Directional Pattern Omni diffuse-field equalized
Frequency Range 20 Hz...20 kHz
Sensitivity at 1 kHz, 0 dB gain, and 94 db SPL -41 dB FS
Equivalent noise level, CCIR 1 25 dB
Equivalent noise level, A-weighted 2 13 dB-A
Maximum SPL at 0 dBFS (re. 94 dB SPL) 135 dB SPL
Maximum SPL with 18 dB preatt. (RCS) (re. 94 dB SPL) 153 dB SPL
Signal-to-noise ratio, CCIR (re. 94 dB SPL) 3 69 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 4 81 dB
Matching connector XLR 3 F
Weight (output stage) 70 g
Weight (capsule only) 11 g
Diameter 22 mm
Length (capsule only) 18 mm
Length (microphone) 108 mm
A/D conversion Neumann process (patented), 28-bit internal word length
Digital signal processing Fixed-point, variable internal word length 28 bits to 60 bits
Sampling rates 44.1/48/88.2/96/176.4/192 kHz
Output data format 24 bits as per AES/EBU (AES 3)
Latency: 44.1/48 kHz 41 samples
Latency: 88.2/96 kHz 49 samples
Latency: 176.4/192 kHz 99 samples
Synchronization: Free-running (non-synchronous operation), frequency stability ± 25 ppm
Synchronization: Synchronous operation, pulling range min. ± 100 ppm
Supply voltage range +7 V to +10.5 V
Current consumption max. 150 mA (DDP)
