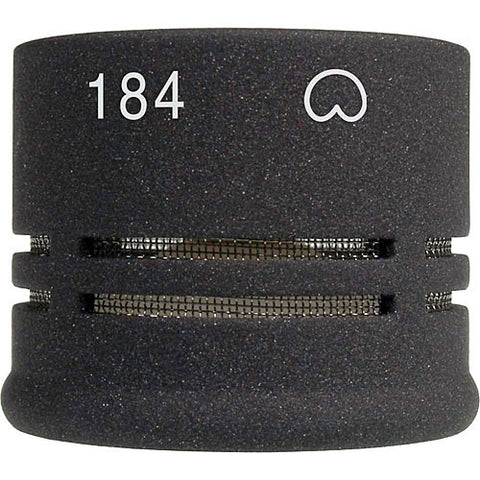

Neumann KK 184 NX, Cardioid capsule head, capsule woodbox, nextel. Compatible with KM A (analog) or KM D (digital) output stages.

Name: Neumann KK 184 NX, Cardioid capsule head, capsule woodbox, nextel. Compatible with KM A (analog) or KM D (digital) output stages.
Brand: Neumann
SKU: KK 184 NX
Price: 599.00 USD
Availability: InStock

Vendor: Neumann

Descriptions Neumann KK 184 NX, Cardioid capsule head, capsule woodbox, nextel. Compatible with KM A (analog) or KM D (digital) output stages. The Neumann KK 184 NX with a Nickel color is a...

or Call for pricing: 1-877-477-6432

Descriptions

Neumann KK 184 NX, Cardioid capsule head, capsule woodbox, nextel. Compatible with KM A (analog) or KM D (digital) output stages.

The Neumann KK 184 NX with a Nickel color is a cardioid capsule and a pressure gradient transducer with cardioid characteristic. The frequency curves of the Neumann KK 184 NX are very even and paralled to 0° sound incidence. In typical usage, there is no coloration of sound over a wide pickup angle.

Neumann KK 184 NX Main Features

Directional characteristic: cardioid
Part of the modular microphone system KM A/D
Comprehensive range of accessories

Specifications

Acoustical operating principle	Pressure gradient transducer
Directional Pattern	Cardioid
Frequency Range	20 Hz...20 kHz
Sensitivity at 1 kHz into 1 kohm	15 mV/Pa
Rated Impedance	50 ohms
Rated load impedance	1000 ohms
Equivalent noise level, CCIR ¹	22 dB
Equivalent noise level, A-weighted ²	13 dB-A
Maximum SPL for THD 0.5% ³	138 dB
Maximum SPL for THD 0.5% with preattenuation ⁴	148 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL) ⁵	70 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL) ⁶	81 dB
Supply voltage (P48, IEC 61938)	48 V
Current consumption (P48, IEC 61938)	max. 3.5 mA
Matching connector	XLR 3 F
Weight (output stage)	70 g
Weight (capsule only)	15 g
Diameter	22 mm
Length (capsule only)	18 mm
Length (microphone)	108 mm
