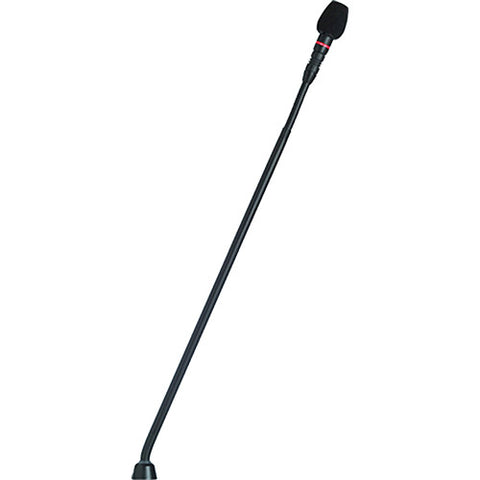

Shure MX405/C 5" Shock-Mounted Gooseneck, Cardioid, includes surface mount preamplifier

Vendor: Shure
Shure MX405/C 5" Shock-Mounted Gooseneck, Cardioid, includes surface mount preamplifier The MX415LP/C Microflex Modular Cardioid 15" Gooseneck Microphone by Shure is suitable to be used in boardrooms, conference rooms, and classrooms. This microphone...
$288.00 $374.00
Title

Shure MX405/C 5" Shock-Mounted Gooseneck, Cardioid, includes surface mount preamplifier

The MX415LP/C Microflex Modular Cardioid 15" Gooseneck Microphone by Shure is suitable to be used in boardrooms, conference rooms, and classrooms. This microphone can be easily mounted on desktops, conference tables, or lecterns by using optional surface or desktop mounts, and it is completely compatible with the SLX Wireless Systems when used with the MX890 Wireless Desktop Base which is sold separately.

  • 15" (38.1 cm) long gooseneck design
  • Cardioid polar pattern cartridge
  • Bi-color status indicator
  • Programmable mute switch (desktop models only)
  • Snap-fit foam windscreen to reduce interference from wind noise
  • Logic input/output for remote LED and mute control
  • Surface-mount and wired or wireless desktop base options
  • CommShield Technology for improved RF filtering
  • CE certified, EMC Directive 2004/108/EC conformant, and meets applicable tests and performance criteria in European Standard EN55103 (1996) parts 1 and 2, for residential (E1) and light industrial (E2) environments.

Shure MX415

  • Type: Condenser (electret bias)
  • Frequency Response: 50 to 17000 Hz
  • Polar Pattern: Cardioid polar pattern (at 1 kHz)
  • Output Impedance: EIA Rated at 150 Ω (170 Ω actual)
  • Configuration: Output: Active balanced
  • Sensitivity: -35 dBV/Pa (18 mV) / at 1 kHz, open circuit voltage
  • Maximum SPL: 121 dB (1 kHz at 1% THD, 1 kW load)
  • Output Noise: 28 dB SPL (A-weighted)
  • Signal-to-Noise Ratio: 66 dB (referenced at 94 dB SPL at 1 kHz)
  • Dynamic Range: 93 dB (1 kΩ load at 1 kHz)
  • Common Mode Rejection: 45 dB minimum (10 Hz to 100 kHz)
  • Polarity: 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
  • Attenuation: Mute Switch: -50 dB minimum
  • Connections: LED IN: Active low (≤1.0 V); TTL compatible; Absolute maximum voltage: -0.7 V to 50 V
    LOGIC OUT: Active low (≤1.0 V), sinks up to 20 mA; TTL compatible; Absolute maximum voltage: -0.7 V to 50 V (up to 50 V through 3 kΩ)
  • Power Requirements: 48 to 52 VDC phantom, 8.0 mA
  • Operating Temperature: 0 to 135°F (-18 to 57°C)
  • Storage Temperature: -20 to 165°F (-29 to 74°C)
  • Relative Humidity: 0 to 95%
  • Weight: 0.154 lb (0.069 kg)
  • Dimensions (L x W): 14.8 x 0.7 (37.6 x 1.9 cm)

Packaging Info

  • Package Weight: 0.95 lb
  • Box Dimensions (LxWxH): 24.9 x 5.4 x 2.8"
