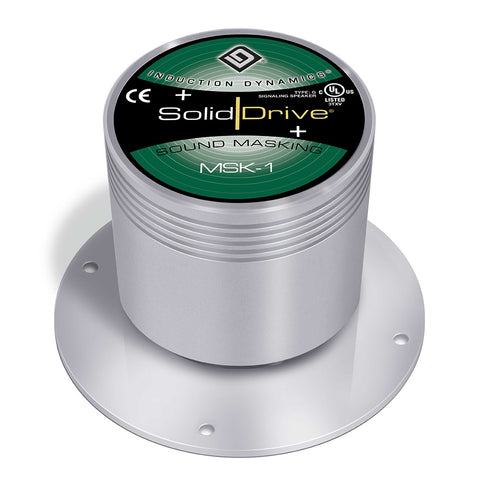

Soundtube MSK-1, SolidDrive MSK-1 Surface Mount Actuator for Drywall

Soundtube MSK-1, SolidDrive MSK-1 Surface Mount Actuator for Drywall

The Soundtube MSK-1 by SolidDrive is an economical hidden planar-source sound transducer which is designed for sound masking in drywall applications. The Soundtube MSK-1 features a rugged aluminum enclosure with neodymium magnets. Also, the Soundtube MSK-1 uses technology similar to our patented SD1 transducers to transfer acoustic energy to the substrate. The result is extremely wide and even audio converage and acoustical uniformly in the listening space. The Soundtube MSK-1 must be installed using the SD1 mounting bracket, and it sold separately. Different bracket widths are available to accommodate in-wall stud spacing.

Soundtube MSK-1 Main Features

• Hidden planar-source audio technology evenly distributes sound masking signals throughout the listening space.
• Broad and even coverage of up to 15 feet per unit in a drywall installation means a few units cover a large area.
• Proprietary behind-surface mounting technologies ensure maximum visual appeal.
• 86 Max SPL (drywall) and 120° dispersion pattern across the upper registers of the frequency spectrum.
• Drywall optional accessories: self-leveling, constant tension pre-construction bracket to ensure proper alignment & wall contact.
• Optional accessories include passive EQ module for drywall, glass and wood; 20 Watt metal junction box for 25, 70.7 & 100 Volt applications (AC-JB20- XFMR) and Heat Sink Fins.
• SolidDrives operate in a virtually friction-free environment and are engineered for infinite life. SolidDrives come with an industry-leading 7-year warranty.
• UL 1480 and 2043 pending.
