Tascam DR-701D Professional 6 track audio recorder for Video/ Pro DSLR

Vendor: Tascam
Description Tascam DR-701D Professional 6 track audio recorder for Video/ Pro DSLR The Tascam DR-701D is professionally designed for filmmaking, television, audio-for-VR, and web broadcast applications where you desire to record direct sound, ambience, and your your...
$499.99 $799.99

Tascam DR-701D Professional 6 track audio recorder for Video/ Pro DSLR

The Tascam DR-701D is professionally designed for filmmaking, television, audio-for-VR, and web broadcast applications where you desire to record direct sound, ambience, and your your real-time mix, it is a multitrack field recorder that is built as an ideal companion for your DSLR. With this, you are given with the capability to capture up to four tracks of high-resolution audio from external sources and the onboard omnidirectional microphone with the additional stereo mix, route audio to and from your camera, and conveniently monitor through headphones. It also comes with versatile mounting possibilities, timecode support, and tight camera sync with the use of HDMI I/O, the DR-701D is built integrating seamlessly into your video production setup.

Versatile powering methods and remote-control options are all making the DR-701D ideal for location recording and extended video shoots. It comes with four balanced XLR-1/4" combo inputs and all of it are capable of handling the mic- or line-level signals (even +4 dBu from high-end sound mixers) and it is capable to independently supply phantom power. A 3.5mm mic/line input that comes along with selectable plug-in power is provided for situations that are requiring you to record a lavalier microphone or the output of a wireless receiver. It is also built utilizing the settings such as stereo safety track recording, automatic level control, limiting, and low-cut filtering for achieving a clean, undistorted recording. Thanks to its available Ambisonics A-/B-format recording with real-time stereo monitoring, the DR-701D is ready to produce audio for your next AR or VR project.

For a full list of tested cameras and the most current firmware, please visit manufacturer's website.

Simultaneous 6-Track Recording

Using the built-in mixer, four tracks and their stereo mix can be simultaneously recorded at up to 24-bit / 96 kHz resolution. Alternatively, record two channels at 192 kHz for truly detailed stereo capture.

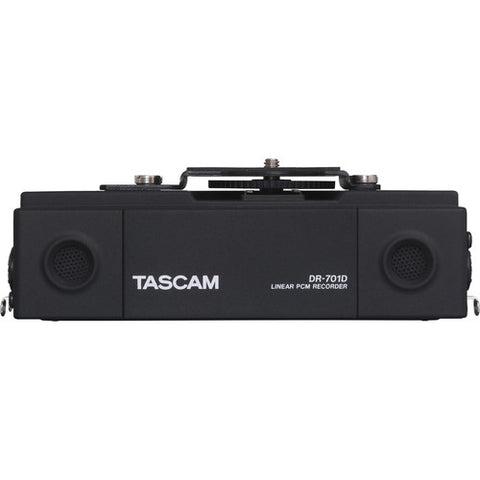

Onboard Omnidirectional Microphones

The DR-701D's two onboard condenser microphones empower you to capture stereo sound without external mics. The omnidirectional mics respond to sound from all directions and are permanently spaced apart in an A/B configuration, yielding a broad, sphere-like pickup pattern. Use them in combination with a shotgun, handheld, or lav mic to record direct sound and ambience at the same time.

Four XLR-1/4" Mic/Line Inputs with Independent Phantom Power

Four locking XLR-1/4" TRS combo jacks support mic level and +4 dBu line level, allowing you to record external microphones or balanced outputs from a professional multichannel mixer. With individually switchable phantom power (24V or 48V) and up to 64 dB of gain, the low-noise HDDA (High Definition Discrete Architecture) mic preamps can serve a variety of microphones such as dynamic, ribbon, or condenser types.

3.5mm Mic/Line Input with Plug-In Power

For maximum intelligibility and optimal vocal tone, recordists often prefer to use lavalier microphones that can be attached to their subject's clothing. The DR-701D's 3.5mm mini-jack input is designed for precisely that situation; clip a lav mic (available separately) to the talent, then plug it into the 3.5mm input on the DR-701D. Knowing that many lav mics require a small amount of voltage called plug-in power, Tascam offers a selectable setting to supply plug-in power to the 3.5mm input. If you need to record the output of a wireless microphone receiver or an audio mixer, the 3.5mm input can accommodate it because it supports line-level signal and handles a maximum input level of +10 dBV.

3.5mm Camera, Line, and Headphone Outputs

The DR-701D boasts three 3.5mm outputs for simultaneous hookup to your camera, a secondary recorder, and headphones. The headphone output offers a dedicated volume control next to the jack, while levels for the camera and line outputs can be changed in the menu system. Plus, the side-panel 3.5mm camera input is ideal for simple monitoring of playback from your camera.

Supports SDXC Cards up to 128GB

To maximize compactness and portability, the DR-701D records directly to media cards (available separately). It supports SD, SDHC, and SDXC cards (up to 128GB capacity) for long recording times in standard or high resolution. With an 8GB card, the DR-701D can record in stereo for over 12.5 hours at 16-bit / 44.1 kHz using the uncompressed, BWF-compliant WAV format.

Ambisonics Support for VR Audio

Version 2.00 firmware brings support for Ambisonics recording by enabling encoding both A and B formats and providing a real-time stereo monitor mix of B-format content. Additional features specialized for Ambisonics audio production include AmbiX and FuMa B formats, simultaneous 4-channel gain control, and selectable

Ambisonics mic positioning.

HDMI I/O for Tight Camera Synchronization
The HDMI I/O ports allow the DR-701D's internal clock and your camera to be digitally synchronized. Even when shooting long events, the video files recorded by the camera and audio files recorded by the DR-701D will not drift out of sync.

Simply pressing the record button on your compatible camera sends a trigger to the DR-701D to start audio recording. Unlike other systems that force you to press record on both devices, the HDMI start system prevents missed takes, syncs the two recording starts together, and makes single-operator shoots much easier.

Timecode Generator and Input

The built-in SMPTE generator allows your camera and DR-701D to store the same location reference. Several options are available to integrate SMPTE timecode into your camera system. The BNC timecode input can follow a source signal, or can be jam-synced a few times per day for independent freewheel operation.

Cameras that send timecode through their HDMI output can be followed by the DR-701D's timecode input. Alternatively, the internal generator can be started without an external reference for a simple time-of-day stamp on recorded BWF files.

Powered via AA Batteries, USB, or AC Adapter

Using four AA alkaline batteries (available separately), you can power the DR-701D for up to 3.75 hours of stereo recording time at 16-bit / 48 kHz resolution with the onboard mics. For long-duration sessions that require extended recording time, the DR-701D may be powered via a USB connection to a computer, mobile battery, or optional BP-6AA battery pack, or through the Tascam PS-P515U AC adapter (available separately).

Ideal for Tripod- or Camera-Mounted Use

With a lightweight and solid magnesium alloy chassis, the DR-701D can be placed between a DSLR camera and a tripod, or mounted to a cage or follow-focus rig. A tripod socket is on the bottom of the unit, and a removable tripod bracket is mounted on the top. Remove the tripod bracket to access the integrated hot shoe. Also, handles on the front left and right sides protect the screen, and permit the attachment of a shoulder belt. All batteries can be replaced without removing the DR-701D from the camera or tripod/rig.

Soft-Touch Controls

In the likely event that you need to use the transport and slate buttons while shooting, you don't need to worry about picking up clicks in the recording. The DR-701D's soft-touch rubber keys are designed for quiet operation to eliminate handling noise.

Stereo Safety Track Recording

Filmmakers and videographers often experience sudden audio volume spikes during filming. An actor could suddenly scream, or a documentary subject could do almost anything. The DR-701D has a dual-recording mode that captures a copy of your take (from a selectable mono or stereo input) up to 12 dB lower (adjustable in -1 dB increments) as a safety track in case of sudden distortion.

Built-In Mixer

Enhance the sonic impact of your audio with the DR-701D's built-in mixer. Each input features adjustable panning, level, limiting, polarity, and up to 300ms of delay. A multiband limiter is employed to affect only the frequency ranges that have excessive input signal levels. Mitigate wind noise and low-frequency rumble by selecting the low-cut filter, which can be set at 50, 80, 120, 180, or 220 Hz.

Tone Generator for Synchronizing Files

An internal tone generator makes it easy to synchronize files recorded on the DR-701D and your camera. When the DR-701D is connected to a camera, the adjustable slate tone may be sent to the camera and recorded to the DR-701D. The resulting tones can be used as guides when synchronizing the files in video editing software. Generate slate tones automatically at the head (or head and tail) of each clip, or manually via the slate button. Playback can be skipped to the slate tone insert position using the data dial.

Supports External Remote Control

Hand- or foot-operated remote control is possible via the RC-3F footswitch or RC-10 wired remote (both available separately); start/stop recording, make marks, increment tracks, and more without having to touch the DR-701D.

Additional Features

  • Angled 128 x 64 pixel graphic LCD with backlight for easy viewing
  • Simple, efficient file transfer via USB 2.0 connection to a computer
  • Asahi Kasei A/D converters and low-noise Texas Instruments OPA1652 opamps
  • High-precision TCXO (temperature-compensated crystal oscillator) and PLL (phase-locked loop) with a discrete filter reduce jitter and clock errors
  • Adjustable delay function eliminates time lags caused by differences in the distances of two sets of inputs from the sound source
  • Hold switch prevents accidental operation
  • MS decoding function allows proper stereo monitoring of a mid-side mic configuration
  • Cascade multiple DR-701D recorders via HDMI for unified record start/stop control from one master unit
  • Automatically creates a new file when the maximum file size is reached
  • Resume function retains the last stop point even when the DR-701D is powered off/on
  • Up to 99 marks (locate points) per track
  • Track incrementing function allows a recording to be split by creating a new file when desired
  • File name format can be set to use a user-defined word or the date
  • The first six characters of the file name for recording can be set freely
Portable Recorder
Number of Tracks 6 (4 Inputs + Stereo Mix)
Max Sample Rate/Resolution 192 kHz / 24-Bit
Microphone Built-In Omnidirectional Electret Condenser Stereo Pair, A/B Configuration
Built-In Speaker No
Display Monochrome LCD (Backlit)
Memory Card Support SD (64 MB to 2 GB)
SDHC (4 GB to 32 GB)
SDXC (48 GB to 128 GB)
Internal Storage None
Audio File Formats BWF, WAV
Sample Rates WAV:
44.1 / 48 / 96 / 192 kHz
Bit Depth 16 / 24-Bit
Signal Processing Delay, Limiter, Low-Cut Filter
Timecode Yes
Clock Accuracy 2 ppm
Recording Time WAV 44.1 kHz/16-Bit:
1 Hr 34 Mins per GB (Stereo)
WAV 48 kHz/16-Bit:
1 Hr 27 Mins per GB (Stereo)
WAV 96 kHz/16-Bit:
43 Mins per GB (Stereo)
WAV 192 kHz/16-Bit:
22 Mins per GB (Stereo)
WAV 44.1 kHz/24-Bit:
1 Hr 3 Mins per GB (Stereo)
WAV 48 kHz/24-Bit:
58 Mins per GB (Stereo)
WAV 96 kHz/24-Bit:
29 Mins per GB (Stereo)
WAV 192 kHz/24-Bit:
14 Mins per GB (Stereo)
Analog I/O 4 x Combo XLR-1/4" TRS Female Balanced Line/Mic Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
1 x 2.5 mm TRS Female Remote Input
Digital I/O 1 x HDMI Type-A Input
1 x HDMI Type-A Cascade/Timecode/Video Output
Phantom Power +24 / 48 V ± 4 V (Selectable on Individual Inputs)
Phantom Power Current 10 mA per Channel
Plug-In Power Yes
Host Connection 1 x Micro-USB (USB 2.0)
Frequency Response Line Inputs, Line Outputs:
20 Hz to 20 kHz +0.5/-1 dB (At 48 kHz, JEITA)
20 Hz to 40 kHz +0.5/-1 dB (At 96 kHz, JEITA)
20 Hz to 80 kHz +0.5/-5 dB (At 192 kHz, JEITA)
Gain Range Balanced Inputs:
+20 dB to +64 dB
Unbalanced Inputs:
+3 dB to +38 dB
Max Input Level Mic Inputs:
+4 dBu
Line Inputs:
+24 dBu
1/8" Inputs:
+10 dBV
Camera Inputs:
+6 dBV
Max Output Level Camera Outputs, Line Outputs:
+6 dBV
Headphone Output Power 50 mW per Channel
Impedance Mic Inputs:
2 kOhms
Line Inputs:
≥10 kOhms
1/8" / 3.5 mm Inputs:
10 kOhms
Camera Outputs:
200 Ohms
Line Outputs:
200 Ohms
SNR ≥100 dB
THD ≤0.007%
EIN -124 dBu
Power Options Batteries, USB Bus Power, AC/DC Power Adapter
Battery Type 4 x AA (Not Included)
Approximate Battery Life WAV 48 kHz/16-Bit:
3.75 Hours (AA Alkaline, Phantom Off, Recording, Built-In Mic)
2 Hours (AA Alkaline, 2 Channels, Phantom On, Recording)
4 Hours (AA NiMH, Phantom Off, Recording, Built-In Mic)
2.5 Hours (AA NiMH, 2 Channels, Phantom On, Recording)
7.5 Hours (AA Lithium, Phantom Off, Recording, Built-In Mic)
6.5 Hours (AA Lithium, 2 Channels, Phantom On, Recording)
AC/DC Power Adapter 5 VDC at 1.3 A (Not Included)
Mounting Options 1/4"-20 Female, Shoe Mount
Operating Temperature 32 to 140°F / 0 to 40°C
Dimensions 6.7 x 2.3 x 4.5" / 169 x 57.3 x 113.5 mm (With Adapter Attached)
Weight 1.2 lb / 561 g (Without Batteries)
1.4 lb / 654 g (With Batteries)
