Williams Sound IR M1 D IR+ Control Center with Dante

Williams Sound IR M1 D IR+ Control Center with Dante

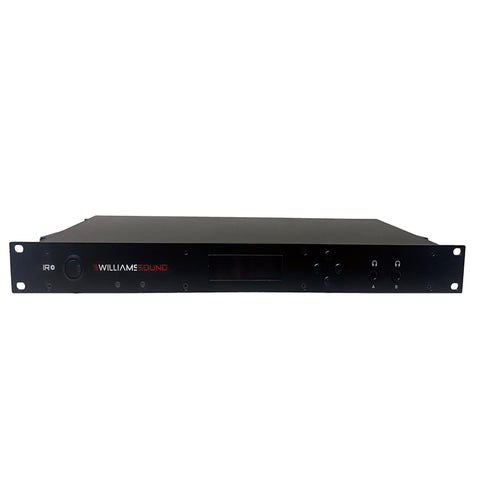

Name: Williams Sound IR M1 D IR+ Control Center with Dante
Brand: Williams Sound
SKU: IR M1 D
Price: 3300.00 USD
Availability: InStock

Vendor: Williams Sound

Williams Sound IR M1 D IR+ Control Center with Dante The IR+ Control Center provides audio transmission over Wi-Fi and Infrared. Infrared is particularly effective for assistive audio in large spaces or for...

$3,300.00

Default Title

Subtotal:

Quantity

Description

Williams Sound IR M1 D IR+ Control Center with Dante

The IR+ Control Center provides audio transmission over Wi-Fi and Infrared. Infrared is particularly effective for assistive audio in large spaces or for secure audio transmission within a room. To stream audio over Wi-Fi, connect the IR M1 to a Wi-Fi multicast router or your in-house network. You can then use the Williams AV WaveCAST app, available on the iOS App Store and Google Play Store. The IR+ Control Center features a distributed infrared emitter array architecture, allowing for the use of up to four emitters. These emitters can be stacked together for large room arrays or distributed throughout a space to accommodate design elements such as wings, balconies, or other obscured areas in the venue. The rack-mounted or remotely located IR M1 Control Center supports up to four IR emitters as standard. Each emitter connects to the modulator via a CAT5e cable, providing both audio and power to support remote emitters. Each emitter has a coverage area of 18,000 square feet. This version of the product includes Dante support.

*Note: Firmware updates are currently not supported on Mac computers.

Specifications

Dimensions:	19” (W) x 1.75” (H) x 8.2” (D) (48.3 cm x 4.5 cm x 20.8 cm)
Weight:	5.2lb. (2.4 kg)
Color:	Black
Rack Mount:	Single Rack Unit
Power Supply:	International Desktop Supply Input: 36 W, 110-240 VAC 50-60 Hz Output: +48VDC, 0.75A center-positive
Power Switch:	Rocker switch with LED
Signal to Noise Ratio:	67 dB (typical)
Modulation:	FM Wideband, +50kHz deviation, 50uS pre-emphasis
Carrier Frequency:	Selectable, 2.3/2.8 or 3.3/3.8MHz
Frequency Response:	40 to 16,000Hz, +1 dB, -3dB, electrical response
Total Harmonic Distortion:	Less than 2%, electrical response
Audio Processor Functions:	DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
Auto Carrier Shut-Off:	Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
Infrared Test LED:	Dual IR LED for receiver testing, monitoring, and audio signal testing.
Audio Input:	(2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
Dante:	Included
Internal Test Tone:	400 Hz internal test tone selectable as audio input source for setup and diagnostics
Remote Configuration:	Available through embedded website
Headphone Output:	(2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs
Emitter Output Jack:	Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
Operating requirements:	0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Approvals:	CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty:	2 years on Modulator, 90 days on accessories
