Williams Sound WF SYS2C-00 Assistive Listening System with 12x Receivers and Headphones

Williams Sound WF SYS2C-00 Assistive Listening System with 12x Receivers and Headphones

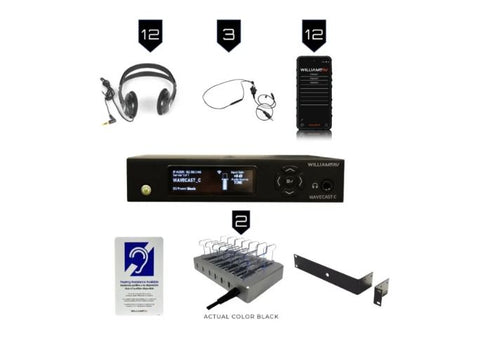

Enhance your venue's accessibility with the WF-SYS3C WaveCAST Wi-Fi system, which provides real-time audio streaming over Wi-Fi. This comprehensive package includes a WaveCAST transmitter, twelve WAV Pro receivers, three neck loops, and twelve pairs of folding stereo headphones, creating a welcoming and inclusive environment for all guests. The system also comes with a rack mount kit, an ADA wall plaque, and two six-bay USB charging docks, offering a complete solution for up to twelve users that can expand as your needs grow. The WF R2-N assistive listening receiver features a user-friendly smartphone-style interface and a generous display, making it ideal for seminars, tours, presentations, gyms, and more. Simply connect to your WaveCAST transmitter, and listeners can enjoy real-time audio streams via Wi-Fi. Users can easily scroll through the screen to select their desired channel and language, listening through the provided headphones or their personal headphones, hearing aids, or neck loops. The initial setup is quick and easy, thanks to an integrated app. Each receiver is housed in a durable case with a screen protector to safeguard your investment. Each device supports connection to any of the sixty-four available WaveCAST channels and offers up to forty hours of continuous use on a full charge. Additionally, you can personalize the experience for your guests by adding your logo and customized channel names.

Features

• Complete twelve-user turnkey assistive listening solution
• Can be expanded
• Familiar smartphone-style interface
• Bluetooth® compatibility
• Large Full HD+ display screen
• Supports headphones, hearing aids, and neckloops
• 40 hours continuous receiver runtime on a full charge
• Two six-bay chargers included
• Display supports custom logo and channel naming
• Rack kit included
• ADA wall plaque included

• HED 024 Headphones
  • Style: Stereo Headphones
  • Plug: 3.5mm stereo
  • Cord: 39"
  • Driver Size: 30 mm
  • Nominal Impedance: 16Ω
  • Freq. Response: 20 - 20kHz
  • Weight: 60g
  • Max Power Input: 100 mW
  • Sensitivity: 108 dB @ 1kHz
  • Replacement Pads: HED 023 (one pair)
  • IDP 008 Wall Plaque
  • 10-3/8" (L) x 6-¼" (W) x 1/8" (H)
• WF R2-03 Receiver
  • Dimensions: 168 x 76.5 x 8.9 mm (6.61 x 3.01 x 0.35 in)
  • Weight: 7.12 oz (202g) without case
  • Display: 6.8” Full HD+ Infinity Dot 1080 x 2460 Resolution | 396ppi
  • Receiver Jack: 3.5mm (1/8”) stereo headphone jack
  • Battery Life: Lithium Polymer (Li-Po) 6000 mAh, non-removable
  • Battery Life: Up to 40 hours of continuous audio streaming
  • USB Connection: USB Type C for power and charging
  • Approvals: CE, FCC, WEEE, CB Scheme, UK CA, RoHS3. RCM and IC- Pending
  • Warranty: Williams AV warrants the WAV Pro Wi-Fi Receiver against defects in materials and workmanship under normal use and conditions for two years from the purchase. The WAV Pro Receiver’s rechargeable battery is warranted for one year from the date of purchase.
• NKL 001-S
  • Color: Black
  • Weight: 1.5 oz
  • Length: 18.5” cord
  • Connector: NKL 001: 3.5 mm mono plug NKL 001-S: 3.5 mm stereo plug with ring disconnected
  • Impedance: 8-16 Ohms
  • Input Power: 500 mW max
  • Magnetic Field Strength: 25 mW input at 1000 Hz produces 1.7 A/m 6” above the center of loop 85μW input produces 0.1 A/m (IEC Standard)
  • Approvals: RoHS, WEEE
  • Warranty: One Year
• WF T5C Transmitter
  • Dimensions: 8.45" W x 8.25" D x 1.72"H (21.5 cm x 21 cm x 4.4 cm)
  • Weight: 3.2 lbs (1.45 kg)
  • Color: Black
  • Rack Mount: Standard 19” Rack, one EIA rack space high, 1/2 space wide 1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
  • Power Supply: Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
  • Power ON Indicator: Push On/Push Off latching power button with backlight. Green backlight indicates power ON, backlight off indicates power OFF.
  • Temperature Range: Operating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C)
  • User Interface: 1. 3.12” High Resolution OLED display with selections via buttons. 2. Hosted Web page. 3. Telnet commands over ethernet (see our WaveCAST and FM+ Programmers Guide" for available commands and protocol).
  • Dante: (1x) RJ-45 jack. Only available on WF T5CD
  • Ethernet: RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address. RJ-45 jack used for web page and streaming audio out. An external Router/DHCP Server is required to stream audio to receiving devices.
• Audio Section
  • Audio Inputs: (1x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power. Optional RJ-45 Dante Input (“D” models only).
  • Audio Processor Functions: DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control, Music, Voice, and Hearing Assistance Audio Presets
  • Frequency Response: 31-16000 Hz, ±3 dB (re: 1 kHz) (“Music” Audio Preset)
  • Signal-to-Noise Ratio: 64 dB (typical) Transmitted RF @ 1kHz
  • Total Harmonic Distortion: Less than 0.25% @ 1 kHz (RF output)
  • Common Mode Rejection: Greater than 57 dB @ 1 kHz, Mic or Line mode
  • Audio Input Gain Adjust: Adjustable from +24dB to -60 dB, in 1dB steps from front screen or web page
  • Phantom Power: 14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack
  • Audio Level Display: Front screen bar graph display, each segment representing 3dB. It ranges from -18 (1 segment lit) to +12dB (10 segments lit). Over-range warning is indicated by 'OLVD' and flashing empty bar.
  • Headphone Output: 1/4" TRS stereo jack, mono signal, 7.8 mW total power with 33 Ω.
  • Dante Output: (1x) RJ-45 jack, only available on WF T5CD
  • Input Level (Bal or Unbal) (at Audio Input Gain = 0dB): Nominal (@7th Segment Lit) Overload Warning (Displayed on Screen) Absolute Max. Rating*
  • Microphone: -45 dBV (5.6 mV RMS), -20 dBV (100 mV RMS), +20 dBV (10.0 V RMS)
  • Line: -8.4 dBV (380 mV RMS), +16 dBV (6.5 V RMS), +20 dBV (10.0 V RMS)
  • Approvals: FCC, RoHS3, WEEE, Industry Canada, CE, UK CA, RCM
  • Warranty: 2-year parts and labor
