Williams Sound WF T5C-00 WaveCAST C Single-Channel Wi-Fi Audio Streaming System

Williams Sound WF T5C-00 WaveCAST C Single-Channel Wi-Fi Audio Streaming System

Name: Williams Sound WF T5C-00 WaveCAST C Single-Channel Wi-Fi Audio Streaming System
Brand: Williams Sound
SKU: WF T5C-00
Price: 1210.00 USD
Availability: InStock

Vendor: Williams Sound

Williams Sound WF T5C-00 WaveCAST C Single-Channel Wi-Fi Audio Streaming System The WaveCAST C Single-Channel Wi-Fi Audio Streaming System from Williams Sound is a hardware-based DSP (Digital Signal Processing) audio system that streams...

$1,210.00

Default Title

Subtotal:

Quantity

Description

Williams Sound WF T5C-00 WaveCAST C Single-Channel Wi-Fi Audio Streaming System

The WaveCAST C Single-Channel Wi-Fi Audio Streaming System from Williams Sound is a hardware-based DSP (Digital Signal Processing) audio system that streams high-quality, real-time audio over Wi-Fi. This system is ideal for professional audio applications, including assistive listening. Audio can be streamed to a free mobile app compatible with both iOS and Android devices, or to personal devices equipped with Wi-Fi receivers. The WaveCAST C is designed for easy integration with third-party room systems and can be controlled via Telnet commands over Ethernet.

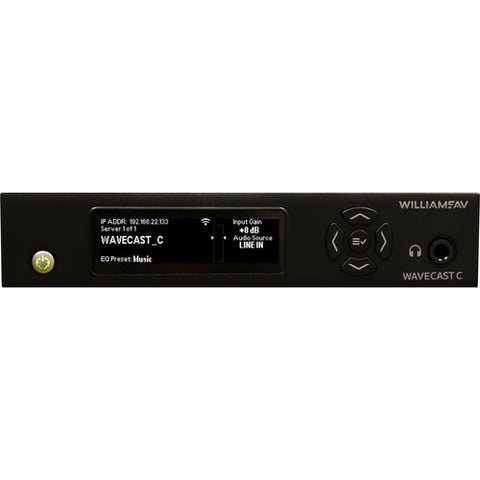

The device includes a 3-pin XLR/1/4" TRS combo connector with selectable phantom power and a line-level output jack. Its DSP features consist of automatic gain control (AGC), custom audio presets, high- and low-pass filters, limiters, and compressor gain control. The WaveCAST C supports both unicast and multicast network configurations. Most settings can be adjusted using the integrated OLED display on the front panel or through a hosted web interface, allowing users to select channels and adjust volume levels while connected to the Wi-Fi network with their personal devices.

Features

Hardware-Based DSP Audio System
Real-Time Audio over Wi-Fi
1 x 3-Pin XLR-1/4" TRS Combo Input
Selectable Phantom Power
Integrated OLED Display

Specifications

Audio	Audio Inputs: 1 x Combination 3-pin XLR, 1/4" (TRS) Jack for Balanced or Unbalanced Line Level, or Balanced or Unbalanced Microphone with Selectable Phantom Power Audio Processor Functions: DSP-Based; Compression: 1:1, 1.5:1 or 2:1; High-Pass and Low-Pass Filter Frequency Control, Music, Voice, and Hearing Assistance Audio Presets Frequency Response: 31 to 16,000 Hz, ±3 dB (Re: 1 kHz) for Music Audio Preset Signal-to-Noise Ratio: 64 dB (Typical) Transmitted RF at 1 kHz Total Harmonic Distortion: Less than 0.25% at 1 kHz (RF Output) Common Mode Rejection: >57 dB at 1 kHz, Mic or Line Mode Audio Input Gain Adjust: From 24 dB to -60 dB, in 1 dB Steps from Front Screen or Web Interface Phantom Power: 14.4 VDC via 2.2 Kilohms Resistors to Analog Combo Jack: Pin 2 and Pin 3 on XLR jack, or Tip and Ring on 1/4" TRS Jack Audio Level Display: Bar Graph Display, 3 dB per Segment, -18 to 12 dB Headphone Output: 1/4" TRS Stereo Jack, Mono Signal, 7.8 mW Total Power with 33 Ohms
Interfaces	3.12" High Resolution OLED Display, Hosted Web Page, Telnet Commands over Ethernet
Ethernet	RJ-45 with Support for Cat 5e up to 328' / 100 m
Operating Temperature	32 to 122° F / 0 to 50°C
Storage Temperature	-4 to 158°F / -20 to 70°C
Power Supply	Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz, IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID Center Positive Barrel Connector
Color	Black
Dimensions (W x D x H)	8.45 x 8.25 x 1.72" / 21.5 x 21 x 4.4 cm
Weight	3.2 lb / 1.45 kg
