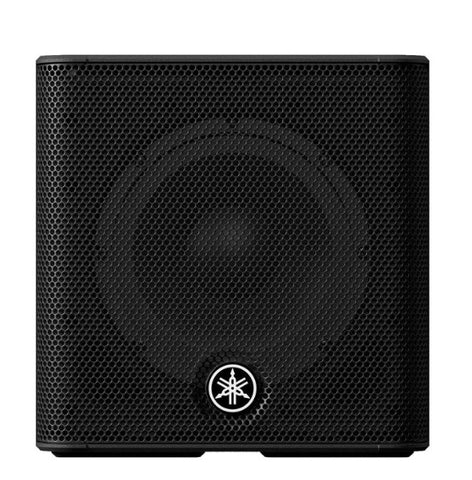

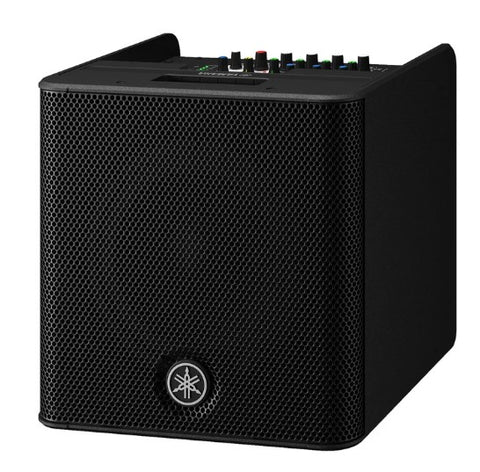

Yamaha STAGEPAS200, Portable 8 Powered PA with 5-Input Mixer
Vendor: Yamaha
Available
Yamaha STAGEPAS200, Portable 8 Powered PA with 5-Input Mixer
The Yamaha STAGEPAS200 is a portable powered PA speaker system designed to deliver professional-quality sound wherever your performance takes you. Combining powerful audio performance with convenient portability, it provides a flexible solution for musicians, performers, presenters, and event professionals who need a dependable sound system without the complexity of a full-size PA setup. Built with live sound applications in mind, the STAGEPAS200 provides mixing capability that makes it well suited for gigging musicians, duos, trios, touring performers, public speakers, and other mobile users. Its versatile design makes it easy to create a polished sound setup for both planned events and temporary installations. Whether you're performing at a special event, outdoor venue, private function, or temporary installation, the STAGEPAS200 gives you the flexibility to position your speaker system according to the needs of the space. It is an ideal choice for professionals and performers who need high-quality sound, straightforward operation, and flexible setup options in a portable package.
Note: This model does not come with a battery. For a battery-included model, see the STAGEPAS200BTR, which includes a high-capacity lithium-ion battery.
Features
- Portable Powered PA Speaker System for live sound
- Ideal for setting up a temporary sound setup that requires professional polish
- Great for special events, outdoor performances, or venues that need versatile speaker positioning
- For gigging musicians, duo or trio groups, touring performers, public speakers, and more
- 180W (HF: 30W + LF: 150W) Class-D amplifier
- 1.4” HF + 8” LF high-quality coaxial compression driver
- 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
- Main output multi-band compressor “MODE”
- 1-knob EQ/preset for each channel
- High-grade SPX digital reverb (4 program, parameter control), delay, chorus
- Hi-Z input
- Equipped with link-out/monitor out
- Supplied rubber stand allows inclining at 30 or 60 degrees
- Compatible with audio streaming via Bluetooth
- Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
Dimensions (WxHxD) 11.8x12.1x11.9" (300x308x301mm)
Electrical
Power Consumption 10 W (Idle), 20 W (1/8 power)
Power Requirements 100-240 V 50/60 Hz, or 29.6 Vdc *2
Audio
Speaker Type Coaxial speaker with compression driver
Crossover 2.0 kHz
Connectivity
Input Channel Functions Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
Output Channel Functions MODE (SPEECH/MUSIC/CLUB)
Inputs Mono x3 (mic/line) + Stereo/Mono x1 (line)
Outputs Monitor/Link out x1
Bluetooth Ver.5.0, A2DP (SBC, AAC), Class 1
Maximum Output Level (1m; on axis) 125 dB SPL *1
Pole Socket Φ35 mm x1 (Side)
Construction
Amplifier Class Class-D
Cabinet Material Plastic (ABS)
Shipping
Weight 26.5 lbs (12kg)
General
Type 2-way Bi-amp Powered Speaker with mixer
Mixing Channels 5 (Mono x3 + Stereo x1)
Control and Others STAGEPAS Controller (iOS/Android app)
Onboard Processors (DSP) SPX digital reverb (4 program, parameter control), delay, chorus
Frequency Range (-10dB) 60 Hz – 20 kHz
LF 8" Cone, 2.0" voice coil
HF 1" throat compression driver, 1.4" voice coil
Power Rating (Dynamic) 180 W (LF: 150 W, HF: 30 W)
Cooling Natural convection (no fan)
Handle Top x1
Floor Monitor Angle 30° or 60°
IR
Coverage Area H90° x V90°
