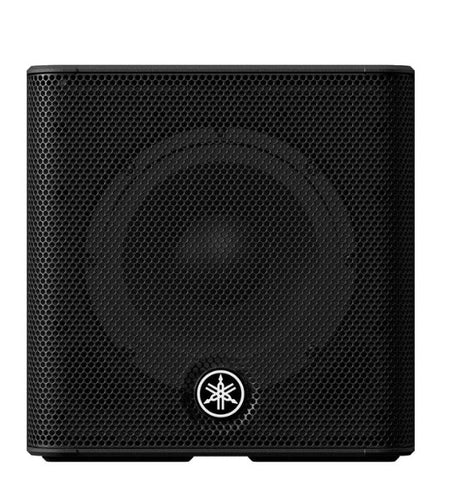

Yamaha STAGEPAS200BTR, Portable 8 Battery Powered PA with 5-Input Mixer
Vendor: Yamaha
Available
Yamaha STAGEPAS200BTR, Portable 8 Battery Powered PA with 5-Input Mixer
The Yamaha STAGEPAS200BTR is a portable, battery-powered PA speaker system designed to deliver professional-quality sound wherever you need it. Combining high-caliber audio performance, built-in mixing capability, and battery-powered portability, it provides a flexible solution for performers and presenters who need reliable sound without being tied to a fixed setup. Designed for gigging musicians, duo and trio groups, touring performers, public speakers, and mobile entertainers, the STAGEPAS200BTR makes it easy to create a polished live sound system in a variety of environments. Its integrated mixing capability provides convenient control for temporary and mobile productions without requiring a complicated collection of external equipment. From special events and outdoor performances to venues requiring flexible speaker positioning, the STAGEPAS200BTR gives users the freedom to build a professional sound setup wherever the event takes place. Its battery-powered design adds another level of mobility, making it particularly well suited for applications where convenient, cable-free operation is important.
PLEASE NOTE: This model includes a high-capacity lithium-ion battery. If you’re looking for the standard model (without a battery), see the STAGEPAS200.
Features
- Portable Battery Powered PA Speaker System for live sound
- Great for special events, outdoor performances, or venues that need versatile speaker positioning
- Ideal for setting up a temporary sound setup that requires professional polish
- For gigging musicians, duo or trio groups, touring performers, public speakers, and more
- 180W (HF: 30W + LF: 150W) Class-D amplifier
- 1.4” HF + 8” LF high-quality coaxial compression driver
- 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
- Main output multi-band compressor “MODE”
- 1-knob EQ/preset for each channel
- High-grade SPX digital reverb (4 program, parameter control), delay, chorus
- Hi-Z input
- Equipped with link-out/monitor out
- Supplied rubber stand allows inclining at 30 or 60 degrees
- Compatible with audio streaming via Bluetooth
- Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
- Optional BTR-STP200 battery included
Dimensions (WxHxD) 11.8x12.1x11.9" (300x308x301mm)
Electrical
Power Consumption 10 W (Idle), 20 W (1/8 power)
Power Requirements 100-240 V 50/60 Hz, or 29.6 Vdc *2
Audio
Speaker Type Coaxial speaker with compression driver
Crossover 2.0 kHz
Connectivity
Input Channel Functions Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
Output Channel Functions MODE (SPEECH/MUSIC/CLUB)
Inputs Mono x3 (mic/line) + Stereo/Mono x1 (line)
Outputs Monitor/Link out x1
Bluetooth Ver.5.0, A2DP (SBC, AAC), Class 1
Maximum Output Level (1m; on axis) 125 dB SPL *1
Pole Socket Φ35 mm x1 (Side)
Construction
Amplifier Class Class-D
Cabinet Material Plastic (ABS)
Shipping
Weight 27.6 lbs (12.5 kg), including battery
General
Type 2-way Bi-amp Powered Speaker with mixer
Mixing Channels 5 (Mono x3 + Stereo x1)
Control and Others STAGEPAS Controller (iOS/Android app)
Onboard Processors (DSP) SPX digital reverb (4 program, parameter control), delay, chorus
Frequency Range (-10dB) 60 Hz – 20 kHz
LF 8" Cone, 2.0" voice coil
HF 1" throat compression driver, 1.4" voice coil
Power Rating (Dynamic) 180 W (LF: 150 W, HF: 30 W)
Cooling Natural convection (no fan)
Handle Top x1
Floor Monitor Angle 30° or 60°
Capacity 79.92 Wh (2700 mAh, 29.6 V)
Operating Time Maximum 10 hours, 1/16 power continuous 8 hours
IR
Coverage Area H90° x V90°
Power
Charging Time Approx. 4 hrs
