SM590I-II-BK SoundTube 5.25" 2-way Outdoor Surface Mount Speaker in Black
Vendor: SoundTube
Available

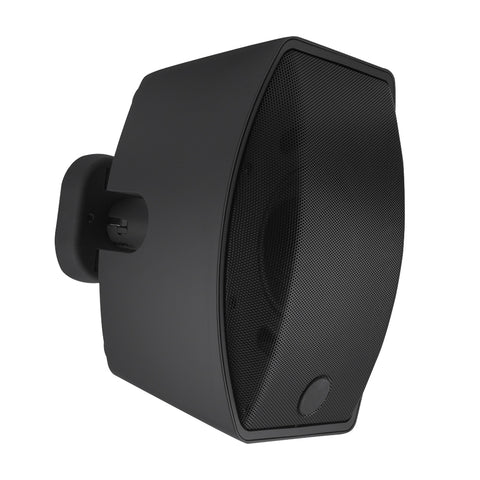

SM590I-II-BK SoundTube 5.25" 2-way Outdoor Surface Mount Speaker in Black
The SoundTube SM590I-II-BK speaker in black comes including a higher power output designed for long throw and high SPL requirements as well as one 5.25-inch polypropylene woofer and one 1.0 inch, tractrix horn-loaded, convex aluminum dome tweeter all in a ported enclosure. The SM590I-II-WX comes with a 87.0 dB average sensitivity which is capable of offering high output capabilities and reduced amplification costs. The speaker comes with an easy access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications that comes along with transformer bypass position and is utilizing patented ZeroReflection™ enclosure technology built for optimal sound reproduction and cabinet rigidity. Utilizing the new SM590I-II Stealth™ bracket mounting systems as well as vertical and horizontal pivoting which are all allowing the SM590I-II-WX to be aimed anywhere within the installation space and the low profile enclosure design that is keeping the speaker close to the wall. Safety cable with speaker mounting bolt, Euroblock connector, and wall mount bracket are included.
Color | Black |
UPC | 6.44E+11 |
Manufacturer | SoundTube |
Manufacturer's Category | SMi Surface Mounts |
Height | 11.4 in / 289.6 mm |
Width/Diameter | 8.36 in / 212.3 mm |
Shipping Weight | 10.4 lbs / 4.72 kg |
Carton Height | 12.25 in / 311.15 mm |
Carton Length | 13.5 in / 342.9 mm |
Carton Width | 10.5 in / 266.7 mm |
Certifications | CE, IP55, RoHS |
Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
Enclosure Volume | 349.6 cu in / 5728.92 cu cm |
Included Accessories | Euroblock, Mounting Hardware, Safety Cable, Terminal Weather Boot |
Optional Accessories | Black Grille (GRL-SM500-II-BK)|10" Safety Cable (AC-SM-SC10)|Black Mounting Bracket (AC-SM5-II-WP-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-S-BK) |
Source Inputs | 4 Pin 5.08mm Euroblock |
Crossover Frequency | 3.0 kHz |
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.7 and 9.3 |
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.0dB and 9.7dB |
Frequency Response (± 10 dB) | 69 Hz - 22 kHz |
Frequency Response (± 3 dB) | 100 Hz - 22 kHz |
Grille Properties | Aluminum, Powder-Coated |
Low Frequency Voice Coil | 1 in / 25.4 mm |
Magnetically Boosted | No |
Max. Continuous Power RMS | 80W |
Max. Program Power | 160 W |
Minimum Impedance (Ω Ohms) | 7 Ω |
Mounting Depth | 10.48 in / 266.2 mm |
Network Type: High Pass | 12 dB per octave 2nd order |
Nominal Impedance (Ω Ohms) | 8 Ω |
Tweeter Driver | 1" Convex Titanium Horn-Loaded |
Woofer Driver | 5.25" Polypropylene |
Sensitivity dB @ 1W/1M | 87 dB |
Sensitivity dB @ 2.83V/1M | 87 dB |
Tap Selector | Rotary Switch |
Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
Transformer Taps (25V/70.0V/100V) | 8W/64W/64W |
