Turbosound TCI52-T (Black) / TCI52-T-WH (White) Pair of 2 Way 5'' Full Range Loudspeaker with Line Transformer for Installation Applications

Turbosound TCI52-T (Black) / TCI52-T-WH (White) Pair of 2 Way 5'' Full Range Loudspeaker with Line Transformer for Installation Applications

Name: Turbosound TCI52-T (Black) / TCI52-T-WH (White) Pair of 2 Way 5'' Full Range Loudspeaker with Line Transformer for Installation Applications
Brand: Turbosound
SKU: TCI52-T
Price: 329.00 USD
Availability: InStock

Vendor: Turbosound

Description Turbosound TCI52-T (Black) / TCI52-T-WH (White) Pair of 2 Way 5'' Full Range Loudspeaker with Line Transformer for Installation Applications The Turbosound Impact TCI52-T 2-Way 5" Full Range Loudspeaker comes in different color...

$280.00 $329.00

Subtotal:

Quantity

Description

Turbosound TCI52-T (Black) / TCI52-T-WH (White) Pair of 2 Way 5'' Full Range Loudspeaker with Line Transformer for Installation Applications

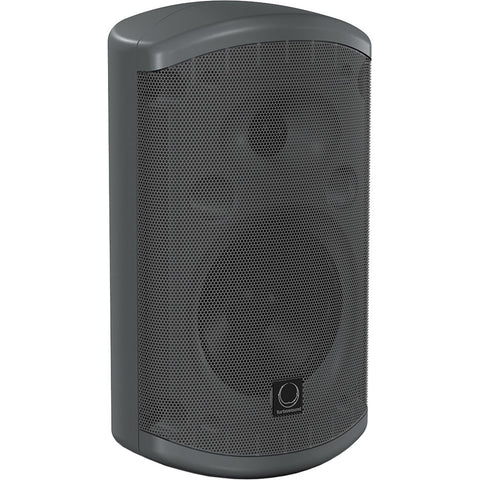

The Turbosound Impact TCI52-T 2-Way 5" Full Range Loudspeaker comes in different color variants: Turbosound TCI52-T (Black) and TCI52-T-WH (White), it is a compact passive 240W two-way surface-mount loudspeaker. It is professionally designed consisting of a high excursion 5" low frequency driver that comes with a high temperature voice coil, partnered to a 1" ferrofluid cooled neodymium high frequency driver, on a proprietary elliptical waveguide which provides a wide 100º horizontal by 70º vertical dispersion.

The TCI52-T comes including with an internal line transformer that comes along with multiple taps designed for use in 70V and 100V line distributed systems, and also comes providing a 16-ohm low impedance direct input. The TCI52-T is supplied with an adjustable wall mounting bracket which is capable of providing the loudspeaker connections as an integral part of the bracket assembly, this allows the brackets to be sited, installed and wired independently.

The glass filled impact resistant enclosure is finished in semi matte blacke or white designed for fitting unobtrusively in any environment. M6 threaded fixings are provided on the rear intended for use with TURBOSOUND wall and ceiling brackets, and OmniMount brackets (sold separately), and a 3/8" threaded insert is provided behind an EPDM rubber cover on the bottom of the cabinet for use along with microphone stands as a spot monitor.

Compact 2-way full range surface-mount loudspeaker for installation applications
60 W continuous, 240 W peak power
High excursion 3.5" low frequency driver with high temperature voice coil
1" ferrofluid cooled neodymium high frequency driver
Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
Proprietary elliptical waveguide provides wide 100º H x 70º V dispersion
Architecturally styled glass filled impact resistant enclosure
Semi matte white finish fits unobtrusively in any environment
2 x M6 rigging points compatible with TURBOSOUND and OmniMount brackets
3/8" mic stand fitting for spot monitor applications
Wall-mount bracket with integral loudspeaker connections included
Designed and engineered in England

Specifications

Components	1 x 5" (127 mm) LF driver 1 x 1" (25 mm) Ferrofluid cooled neodymium HF driver
Frequency Response	89 Hz to 20 kHz ±3 dB 64 Hz to 20 kHz ±10 dB
Dispersion	100° H x 70° V @ -6 dB points
Sensitivity	90 dB SPL 1 W/3.3' (1 m)
Power Handling	60 W continuous, 240 W peak Transformer taps at 60 W, 30 W, 15 W, (100 V line) 60 W, 30 W, 15 W, 7.5 W (70 V line), and low impedance setting
Maximum Sound Pressure Level (SPL)	109 dB continuous, 115 dB peak
Nominal Impedance	16 ohms
Crossover	Internal passive crossover at 2.5 kHz, 12 dB / Octave
Connectors	Color coded binding posts
Construction	Gas injected glass filled molded ABS enclosure
Grille	Powder-coated galvanized perforated steel
Standards	Fire retardant UL 94 V-0 ABS
Rigging	2 x M6 fixing points for TCI-WB wall bracket (supplied) Compatible with TURBOSOUND wall brackets and ceiling brackets, and OmniMount brackets (sold separately)
Dimensions	11.8 x 6.5 x 6.2" (300 x 164 x 158 mm)
Weight	7.7 lb (3.5 kg)
