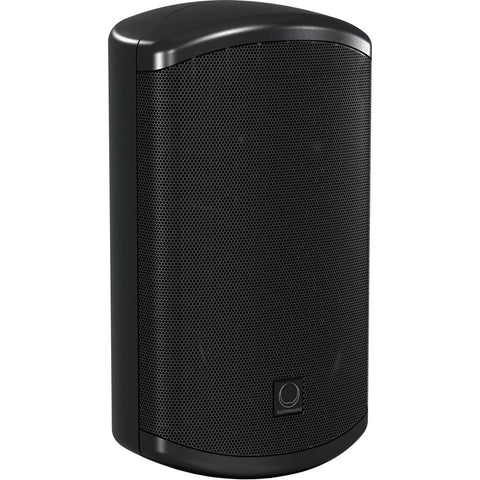

Turbosound TCI52-TR Turbosound Pair of 2 Way 5'' Full Range Loudspeaker with Line Transformer for Installation
Vendor: Turbosound
Available
Turbosound TCI52-TR (Black) / TCI52-TR-WH (White) Pair of 2 Way 5'' Full Range Loudspeaker with Line Transformer for Installation
The Impact TCI52-TR comes in different color variants: TCI52-TR (Black) / TCI52-TR-WH (White) it is a 2-Way Weather-Resistant 5" Full Range Loudspeaker that comes with Line Transformer that's professionally designed by Turbosound is a compact passive 240W two-way surface-mount loudspeaker. It comes consisting of a high excursion 5" low frequency driver that comes along with a high temperature voice coil, partnered to a 1" ferrofluid cooled neodymium high frequency driver, on a proprietary elliptical waveguide that capable to provide wide 100º horizontal by 70º vertical dispersion.
The loudspeaker come including an internal line transformer that comes with multiple taps intended for use in 70V and 100V line distributed systems, and also comes providing a 16 Ohms low impedance direct input. The speaker is being supplied with an adjustable wall mounting bracket which is capable of providing the loudspeaker connections as an integral part of the bracket assembly, this is allowing the brackets to be sited, installed and wired independently.
The glass filled impact resistant enclosure is made finished in semi matte white or black designed capable of fitting an unobtrusively in any environment. The weatherized paint, zinc plated grill along with outdoor powder coat, and weather resistant coated drivers for delivering an IP34 rated package that is suitable for outdoor use. M6 threaded fixings are provided on the rear for use along with Turbosound wall and ceiling brackets, and OmniMount brackets (sold separately), and a 3/8" threaded insert is provided behind an EPDM rubber cover on the bottom of the cabinet designed for use with microphone stands as a spot monitor.
- Compact 2-way full range surface-mount loudspeaker for installation applications
- 60 W continuous, 240 W peak power
- High excursion 5" low frequency driver with high temperature voice coil
- 1" ferrofluid cooled neodymium high frequency driver
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohms direct input
- Weather-resistant plated perforated grille with powder coating for outdoor use
- Proprietary elliptical waveguide provides wide 100º H x 70º V dispersion
- Architecturally styled glass filled impact resistant enclosure
- Semi matte white finish fits unobtrusively in any environment
- 2 x M6 rigging points compatible with Turbosound and OmniMount brackets
- 3/8" mic stand fitting for spot monitor applications
- Wall-mount bracket with integral loudspeaker connections included
| Components | 1 x 5" (127 mm) LF driver 1 x 1" (25 mm) Ferrofluid cooled neodymium HF driver |
| Frequency Response | 74 Hz to 20 kHz ±3 dB 43 Hz to 20 kHz ±10 dB |
| Dispersion | 100° H x 70° V @ -6 dB points |
| Sensitivity | 90 dB SPL (1 W @ 3.3' / 1 m) |
| Power Handling | IEC Passive: 60 W continuous, 240 W peak 100 V Line: 60 W, 30 W, 15 W 70 V Line: 60 W, 30 W, 15 W, 7.5 W |
| Maximum Sound Pressure Level (SPL) | Passive: 108 dB continuous, 114 dB peak 100 V Line: 114, 111, 108 dB peak 70 V Line: 114, 111, 108, 105 dB peak |
| Nominal Impedance | 16 Ohms |
| Connectors | Screw terminal block |
| Wiring | Input positive and negative |
| Construction | Gas injected glass filled molded ABS enclosure |
| Weather Resistant | IP34 |
| Grille | Powder coated perforated zinc plated steel |
| Mounting Interface | M6 x 2 points |
| Dimensions | 11.8 x 6.5 x 6.2" (30.0 x 16.4 x 15.8 cm) |
| Weight | 7.7 lb (3.5 kg) |
