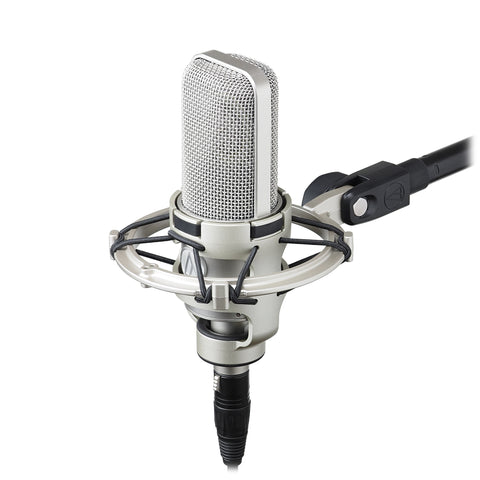

Audio Technica AT4047/SV, Cardioid Condenser Microphone
Vendor: Audio Technica
Descriptions Audio Technica AT4047/SV, Cardioid Condenser Microphone The Audio Technica AT4047/SV is a cardioid condenser microphone with warm sound that takes you back to the classic F.E.T. studio microphones. But there's nothing remotely...
Available
Audio Technica AT4047/SV, Cardioid Condenser Microphone
The Audio Technica AT4047/SV is a cardioid condenser microphone with warm sound that takes you back to the classic F.E.T. studio microphones. But there's nothing remotely old-fashioned about the technology behind that vintage sound. The Audio Technica AT4047/SV a studio condenser's with dual-diaphragm capsule and design maintains precise polar pattern definition across the full frequency range. With a wide dynamic range, incredibly low self-noise and high SPL capability, this Audio Technica AT4047/SV is a versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups voiceovers.
Product Highlights of the Audio Technica AT4047/SV
- Designed for critical studio, live sound and broadcast applications
- Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
- Exceptionally low self-noise, wide dynamic range and high SPL capability
- Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
- Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
- Vintage silver-matte finish on microphone and shock mount
- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
- State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
- Switchable 80 Hz hi-pass filter and 10 dB pad
ELEMENT | Externally-polarized (DC bias) condenser |
POLAR PATTERN | Cardioid |
FREQUENCY RESPONSE | 20-18,000 Hz |
LOW FREQUENCY ROLL-OFF | 80 Hz, 12 dB/octave |
OPEN CIRCUIT SENSITIVITY | -35 dB (17.7 mV) dB re 1V at 1 Pa |
IMPEDANCE | 250 ohms |
MAXIMUM INPUT SOUND LEVEL | 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal) |
NOISE | 9 dB SPL |
DYNAMIC RANGE (typical) | 140 dB, 1 kHz at Max SPL |
SIGNAL-TO-NOISE RATIO | 85 dB, 1 kHz at 1 Pa |
PHANTOM POWER REQUIREMENTS | 48V DC, 3.0 mA typical |
SWITCHES | Flat, roll-off; 10 dB pad (nominal) |
WEIGHT | 14.5 oz (410 g) |
DIMENSIONS | 6.69" (170.0 mm) long, 2.10" (53.4 mm) maximum body diameter |
OUTPUT CONNECTOR | Integral 3-pin XLRM-type |
ACCESSORIES FURNISHED | AT8449a/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case |
AUDIO-TECHNICA CASE STYLE | R1 |
