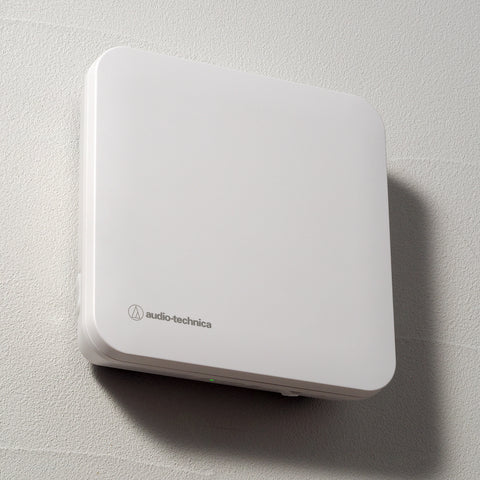

Audio Technica ATW-A410P, UHF Powered Wide-Band Antenna

Audio Technica ATW-A410P, UHF Powered Wide-Band Antenna

Audio Technica ATW-A410P is designed in a low-profile UHF (470-990 MHz) antenna that mounts to a wall or ceiling. Audio Technica ATW-A410P features a 4-position with a switchable amplifier (-10 dB/0 dB/+6 dB/+12 dB) to compensate for cable loss, along with an LED indicator to display the current gain setting. To accommodate various installation environments, the Audio Technica ATW-A410P antenna’s BNC cable can be configured to exit from the top, side or rear of the antenna. Includes mounting bracket and screws.

Audio Technica ATW-A410P Product Features

• Low-profile UHF antenna mounts to wall or ceiling

• 470-990 MHz operating range

• 4-position gain selector (-10 dB/0 dB/+6 dB/+12 dB)

• LED gain setting indicator

• BNC cable may be routed to the side, top or rear of the antenna
• Includes mounting bracket and screws

Frequency range: 470 to 990 MHz
Connector: BNC-J
Impedance: 50 ohms
Power requirement: +12V DC, 60 mA or less
OIP3: >30 dBm typical (within specified bandwidth)
Gain: -10 dB/0 dB/+6 dB/+12 dB
Operating temperature range: -10° C to 50° C (14° F to 122° F)
Dimensions: 175 mm (6.9") W × 175 mm (6.9") D × 50 mm (2.0") H (without bracket)
Weight: 390 g (13.8 oz) (without bracket)
Accessories: Mounting bracket, screws
