Audix AP42OM2A, WIRELESS,R42,HANDHELD, W/ (2) OM2 CAP, R42 Two Channel Diversity Receiver
Vendor: Audix
Available

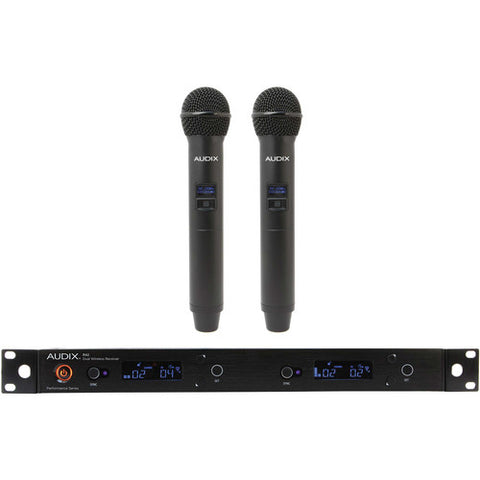

Audix AP42OM2A, WIRELESS,R42,HANDHELD, W/ (2) OM2 CAP, R42 Two Channel Diversity Receiver with Two H60/OM2 Handheld Transmitters (522 MHz - 554 MHz)
The Audix AP42OM2A feature its performance series dual-channel handheld wireless system from Audix. The Audix AP42OM2A has includes R42 2 channel diversity receiver and two H60/OM2 handheld transmitters. The R42 receiver operates on a frequency range of 522 to 554 MHz and offers one-touch auto scan searches for clear channel. The Audix AP42OM2A unit features an internal antenna combiner for dual antenna operation. The Audix AP42OM2A comes in a 19" rackmount chassis and includes BNC cables for front mounting antennas. A big thanks to the one-touch sync function, this receiver easily links to the H60 handheld transmitters via infrared beam.
Each handheld transmitter of the Audix AP42OM2A comes with the OM2 dynamic vocal microphone capsule. These transmitters of the Audix AP42OM2A features a slim-line body design and durable metal housing and are compact, well-balanced and comfortable to hold. They come with a soft mute switch which also serves as an on and off switch when needed. The transmitter units of the Audix AP42OM2A also feature a high-contrast LCD display with group, channel and battery indicator.
The Audix AP42OM2A is built and designed a slight bass proximity and a tailored mid-range, each OM2 microphone has a full-bodied sound on small to mid-sized PA systems. This Audix AP42OM2A has a clear and accurate sound reproduction, resistance to feedback and the ability to handle high SPLs without distortion. These microphones employ a VLM diaphragm for a clear, precise sound with remarkable voice response.
Audix AP42OM2A Product Features
R42 Two Channel Diversity Receiver
- 32 MHz Wide spectrum tuning receiver
- 106 Pre-coordinated frequencies
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam
H60 OM2 Handheld Transmitter
- 64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
- Durable metal housing
- 14 Hour run time - AA batteries
Audix R42 Kit-A Performance Series Dual-Channel UHF Diversity Receiver (A: 522 To 554 MHz)<span> </span>Specs
Frequency Band | 522 to 554 MHz |
Bandwidth | 32 MHz |
# Of Simultaneous Systems | Up to 8 |
Switchable Frequencies | 106 pre-coordinated frequencies |
Wireless Range | Up to 300' / 91 m |
Antenna Connector | 2 x BNC (8 VDC, 150 mA) |
Outputs | 2 x XLR 3-pin balanced 2 x 1/4" TS unbalanced |
Audio Output Level | XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain |
Audio Level Control | -12 to +9 dB in 3 dB steps |
Frequency Response | 45 Hz to 18 kHz |
Compander | 2:1 |
Pilot Tone | 32 kHz |
Receiving System | Single tuner, antenna diversity |
Signal to Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
Total Harmonic Distortion (THD) | ≤0.7% (33 kHz deviation at 1 kHz) |
Sensitivity | 5 dBµV (S/N 60 dB at 25 kHz deviation, A- weighted) |
Power Requirement | 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A |
Dimensions (W x D x H) | 16.0 x 8.2 x 1.7" / 406 x 209 x 44 mm |
Weight | 4.8 lb / 2.2 kg |
Audix H60 OM2 64 MHz Handheld Microphone Transmitter With OM2 Hypercardioid Dynamic Capsule (522 To 586 MHz)<span> </span>Specs
Type | Dynamic |
Polar Pattern | Hypercardioid |
Capsule | VLM Type B |
Frequency Response | 50 Hz to 16 kHz |
Maximum SPL | ≥140 dB |
Impedance | 290 Ohms |
Sensitivity | 1.6 mV/Pa at 1 kHz |
Off-Axis Performance | Rejection >25 dB |
RF Power Output | 10/30 mW |
Bandwidth | 64 MHz |
Gain Adjustment | 0 dB, -6 dB, -12 dB |
Battery Life | Approximately 14 hours |
Current Consumption | 110 mA typical |
Power Requirement | 2 x AA 1.5 V batteries |
Dimensions (Diam. x L) | 2.1 x 10.4" / 53 x 265 mm |
Weight | 11 oz / 312 g without batteries |
