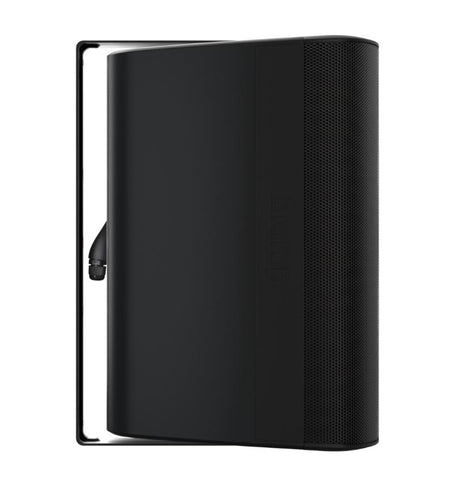

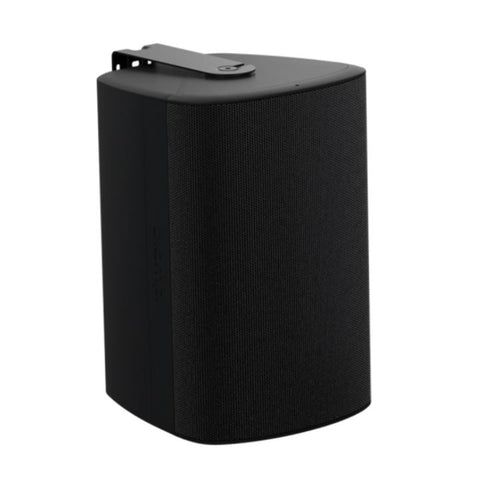

Biamp Systems Desono DX-S8-UB-B Black | (920-00334-10000)

Vendor: Biamp Systems
Biamp Systems Desono DX-S8-UB-B Black | (920-00334-10000) The Desono DX-S8 Surface Mount Loudspeaker is engineered to deliver powerful, high-efficiency audio with exceptional clarity and low distortion in a sleek, modern enclosure. Designed with...
$410.00
Title

Biamp Systems Desono DX-S8-UB-B Black | (920-00334-10000)

The Desono DX-S8 Surface Mount Loudspeaker is engineered to deliver powerful, high-efficiency audio with exceptional clarity and low distortion in a sleek, modern enclosure. Designed with the same premium components and acoustic voicing as the Desono DX ceiling loudspeaker series, it provides consistent sound quality across mixed commercial audio installations while offering fast and straightforward installation. Featuring a large 8-inch coaxial driver, the DX-S8 produces higher sound pressure levels, greater sensitivity, and deeper bass response than smaller models, making it an excellent choice for larger spaces that demand wider coverage and more impactful sound. Its impressive performance also exceeds many competing loudspeakers in the same size class, delivering clear speech reproduction and rich, balanced music for a wide range of commercial applications.

Built for both indoor and outdoor environments, the DX-S8 combines a contemporary design with weather-resistant construction suitable for direct outdoor installation. It is ideal for hospitality venues, retail spaces, educational facilities, corporate environments, and other applications requiring reliable speech reinforcement and background or foreground music. Installation is quick and highly flexible with Biamp's patented ClickMount™ pan-tilt bracket, which allows low-profile vertical or horizontal mounting without repositioning the bracket. The power tap selector can be configured before the loudspeaker is attached, simplifying the installation process. For applications requiring an alternative mounting option, models equipped with the low-profile U-Bracket are also available and include the ClickPlug with an integrated gland nut to provide weather-resistant cable connections. Both mounting systems feature theft- and tamper-resistant designs for enhanced security in commercial and public installations.

Features

  • Zoom Certified
  • High efficiency, high output, high intelligibility, low distortion
  • Uniform coverage from coaxially mounted HF/LF drivers
  • Choice of models with ClickMount™ pan-tilt bracket or the U-Bracket makes installation and aiming easy
  • Uniform voicing with DX ceiling loudspeakers
  • ETL listed, certified to UL 1480A and CSA 62368-1, CE marked, and RoHS compliant
  • 5-year warranty
GENERAL
Height 15.24 inches (387 mm)
Width 10.04 inches (255 mm)
Depth 11.57 inches (294 mm)
Weight 17 lbs (7.71 kg)
Finish RAL Color: Black RAL 9017
Material Grille:
Powder-coated perforated Marine Grade aluminum backed with woven fabric. Black (RAL 9017) or White (RAL 9016) finish.
Enclosure:
High-impact ABS plastic, painted UV resistant matte Black or White finish
Bracket:
Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover Color: Black (RAL 9017) or White (RAL 9016)
Mounting U-Bracket
Included Accessories (Included):
ClickMount pan-tilt bracket or U-Bracket - dependent on models
Optional:
SPA-UBDX200 [-B/-W] U-Bracket with ClickPlug
CMX-SM [-B/-W] ClickMount pan-tilt bracket
Required Accessories 60 Hz, 12 dB/oct. electronic high pass filter
Recommended Amplifiers Passive 175 W - 350 W into 8 Ω, (37 V - 53 V)
ENVIRONMENTAL
Operating Environment Indoor / Outdoor Direct Exposure
POWER
Power 175W Cont.
700W Peak
Power Output 116 dB
126 dB Peak
LOUDSPEAKER
Loudspeaker Type 2-way, 8-inch surface mount loudspeaker
Operating Mode Single Amplified with DSP
Operating Range 62 Hz - 18 kHz
Beamwidth (H x V) 110° x 110°
Transducers LF 1 x 8 inches (203 mm) HF 1 x 1.25 inches (32 mm) exit compression driver
Crossover Frequency: 1.4 kHz
Autoformer 70 V: 120 W, 60 W, 30 W, 15 W
100 V: 120 W, 60 W, 30 W
Sensitivity 95 dB (2.83 V)
94 dB (1 W at rated impedance)
Dispersion 110° x 110°
Drivers LF 1 x 8 inches
HF 1 x 1.25 inches
AUDIO
Impedance
SPL Nominal Maximum SPL
Passive:
Peak: 122 dB
Continuous: 116 dB
CERTIFIED SOLUTIONS
Zoom Zoom Certified
COMPLIANCE
Certifications CSA 62368-1
Environmental Ratings IP54 per IEC 60529
IEC 60068-2-5 (Solar Radiation)
IEC 60068-2-11 (Salt Mist)
IEC 60068-2-42
(SO2), IEC 60068-2-60 (Chlorine)
