Biamp Systems DX-IC10-W In-Ceiling High Output Loudspeaker | (910-00100)
Vendor: Biamp Systems
Available
Biamp Systems DX-IC10-W In-Ceiling High Output Loudspeaker | (910-00100)

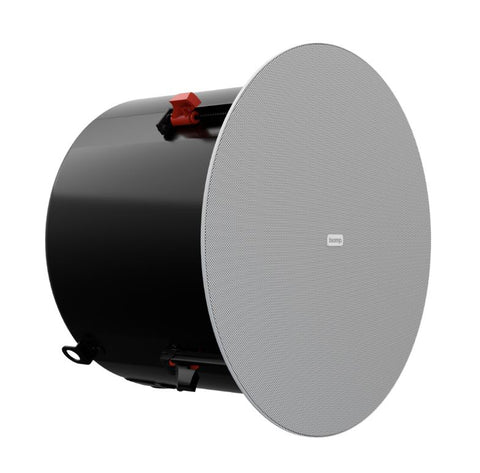

The Desono DX-IC10 is a 10-inch high-output coaxial in-ceiling loudspeaker engineered to deliver powerful, full-range audio with exceptional clarity for demanding commercial installations. Equipped with a high-frequency compression driver, it provides outstanding speech intelligibility, high sound pressure levels, and detailed music reproduction, making it ideal for hospitality venues, retail stores, corporate spaces, educational facilities, and houses of worship. Designed for maximum installation flexibility, the DX-IC10 supports both 8-ohm low-impedance and 70V/100V distributed audio systems, allowing it to integrate seamlessly into a wide variety of professional sound installations. Its high-efficiency design delivers impressive output while maintaining clear, low-distortion performance across both speech and music applications. Finished in white to blend discreetly into most ceiling environments, the DX-IC10 offers a clean, professional appearance without compromising acoustic performance. It is priced individually and sold in pairs, making it a practical solution for medium to large commercial audio projects requiring consistent, high-quality sound.
Features
- Zoom Certified
- High intelligibility with exceptional uniform coverage
- Fast installation with SpringLock™ mounting clamps
- High output similar to typical 12" large format ceiling speakers
- Attractive edgeless magnetic grille design
- Conduit knock-outs on the input cover meet Chicago plenum air space requirements
- 5 year warranty
| GENERAL | |
| Depth | 10.37 inches (263 mm |
| Diameter | 15.51 inches (394 m) Cutout Diameter: 14.17 inches (360 mm) |
| Weight | 23.66 lbs (10.73 kg) |
| Finish | RAL Color: White RAL 9016 |
| ENVIRONMENTAL | |
| Operating Environment | Indoor |
| POWER | |
| Power | 240W Cont. 960W Peak |
| LOUDSPEAKER | |
| Loudspeaker Type | Two-way 10-inch ceiling loudspeaker |
| Operating Range | 65 Hz - 20 kHz |
| Transformer | 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W |
| Sensitivity | (1W/1m) 96 dB |
| Dispersion | 115° conical |
| Drivers | LF 1 x 10" HF 1 x 1.25 |
| AUDIO | |
| Impedance | 6.5Ω |
| Maximum Output | Max Output @1m: 119 dB 131 dB Peak |
| COMPLIANCE | |
| Certifications | UL1480, UL2043, CSA62368-1, NFPA70, NFPA90 |
