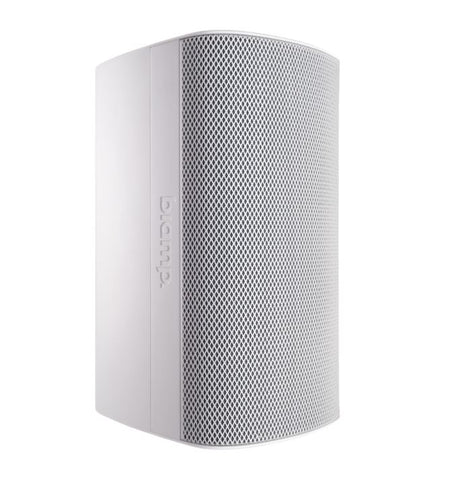

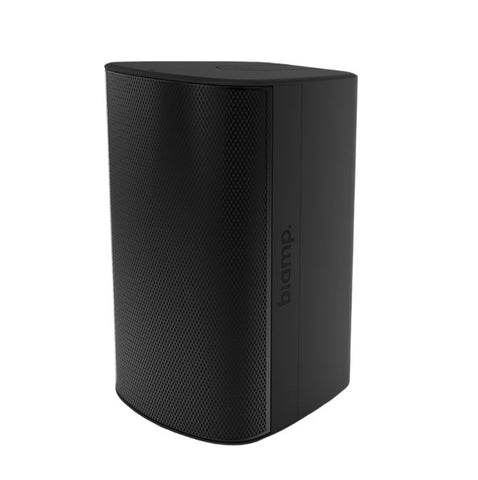

Biamp Systems EX-S6-UB 6.5-inch, 2-way, coaxial, surface mount, indoor/outdoor loudspeaker | Black, White

Vendor: Biamp Systems
Biamp Systems EX-S6-UB 6.5-inch, 2-way, coaxial, surface mount, indoor/outdoor loudspeaker | Black, White The Desono EX-S6 is the smallest model in the EX Series, featuring a compact 6.5-inch, two-way surface-mount design that delivers...
$540.00
Color
Black
White

Biamp Systems EX-S6-UB 6.5-inch, 2-way, coaxial, surface mount, indoor/outdoor loudspeaker | Black, White

The Desono EX-S6 is the smallest model in the EX Series, featuring a compact 6.5-inch, two-way surface-mount design that delivers clear, high-quality audio while maintaining a discreet visual profile. With 110° wide dispersion and a smooth frequency response extending below 80Hz, the EX-S6 is ideal for near-field listening and distributed sound applications. Designed for quick and straightforward installation, the patented ClickMount™ bracket system offers two versatile mounting options. The ClickMount pan-tilt bracket provides indexed aiming control and enables the EX-S6 to be mounted vertically or horizontally without repositioning the bracket. For low-profile installations or exterior applications, the ClickMount U-Bracket includes a ClickPlug with an integrated gland nut for weather-resistant installation. Both mounting options feature theft- and tamper-resistant construction.

KEY FEATURES

  • Certified for use with Zoom software
  • Exceptional audio clarity with small footprint and attractive styling
  • Uniform coverage from coaxially mounted HF/LF drivers
  • 6-position switch selects 70 V/100 V taps or low impedance bypass
  • ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
  • EN54-24 and ISO 7240-24 certification
  • Included indexing u-bracket and weather cover
  • 5-year warranty

GENERAL
Height 14.37 inches (349 mm)
Width 8.55 inches (217 mm)
Depth 9.96 inches (253 mm)
Weight 14.4 lbs (6.5 kg)
Finish RAL Color: White RAL 9016
Material Grille:
Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth.
Enclosure:
High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish
Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover
Mounting ClickMount pan-tilt bracket or ClickMount U-Bracket
Included Accessories CMX-SM [-B,-W] - Small ClickMount pan-tilt bracket kit
EXUB-S6 [-B,-W] - EX-S6 ClickMount U-Bracket kit
Required Accessories 50 Hz, 12 dB / oct. Butterworth high pass filter; DSP preset
Recommended Amplifiers 200 W - 400 W, 8 Ω (40 V - 57 V)
ENVIRONMENTAL
Operating Environment Indoor/Outdoor
POWER
Power 200W Cont.
800W Peak
LOUDSPEAKER
Loudspeaker Type 2-way, 6.5-inch, indoor/outdoor, coaxial, surface mount, white loudspeaker.
Operating Mode Passive with selectable low-impedance or 70V/100V operation
Operating Range 58 Hz - 20 kHz
Transducers LF 1 x 6.5 inches (165 mm) treated paper cone
HF 1 x 1 inch (25 mm) treated soft dome tweeter w/ waveguide
Crossover 1.58 kHz crossover, driver protection circuitry
Transformer 70V: 80W, 40W, 20W, 10W
100V: 80W, 40W, 20W
Sensitivity (1W/1m) 89 dB
Dispersion 120° x 120°
Drivers LF 1 x 6.5 inches
HF 1 x 1 inch
AUDIO
Impedance
SPL Nominal Maximum SPL
Continuous: 112 dB
Peak: 118 dB

Rated Maximum SPL:
Continuous: 109 dB
Peak: 121 dB
CERTIFIED SOLUTIONS
Zoom Zoom Certified
COMPLIANCE
Certifications ETL listed to comply with UL 1480A
CSA STD C22.2# 62368-1
EN54-24
ISO 7240-24
IEC 62368-1
Environmental Ratings IP54 per IEC 60529
IEC 60068-2-5 (Solar Radiation)
IEC 60068-2-11 (Salt Mist)
IEC 60068-2-42 (SO2)
IEC 60068-2-60 (Chlorine)
