Clear-Com LQ-R2W4 features a Linking 2-wire Intercom Systems, this LQ-R2W4 is designed for general purpose of the Clear-Com LQ interfaces is to connect and route signals from multiple intercom systems and audio devices from point-to-point or point-to-multi-point, virtually anywhere over the secure IP network. 2-wire partyline devices such as Clear-Com’s or any industry-standard intercom system break away from traditional cabling and take advantage of available IP infrastructure for connecting to other 2-wire systems. The Clear-Com LQ-R2W4 has an Extending Existing Intercom Systems. If you need to add an intercom user position across campus and in the next town? Just interface your existing 2-wire partyline system, regardless of brand, with Clear-Com LQ-R2W4 devices. Place the same LQ device at the desired position, then connect the 2-wire beltpack directly into the LQ device. Once devices are networked together with the Core Configuration Manager, the open communication link between these devices will allow everyone on the intercom network to talk or listen, depend on the configuration.

Clear-Com LQ-R2W4 Product Features

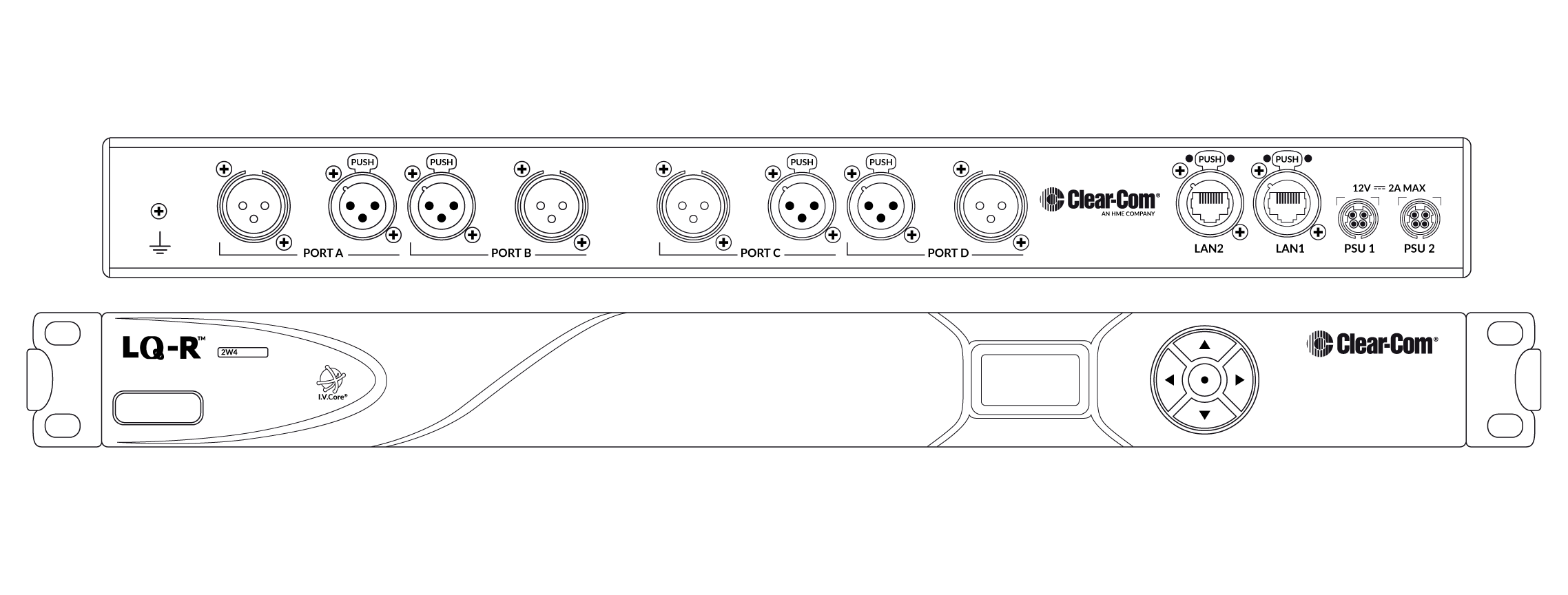

• 4-Port 1RU Panel for 2-Wire Interfacing
• Intercom-over-IP: routing intercom and audio signals over IP networks
• Up to 6 LQ devices can be networked to create standalone partyline intercom group
• Supports up to 8 SIP client connections per LQ device (license required)
• Supports up to 8 Agent-IC clients per LQ device (license required)
• Connects to HelixNet via HLI-ET2 over LAN or WAN
• Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
• Adjustable bandwidth on a per port basis
• 2-wire powering, termination and auto-nulling
• Compatible with Clear-Com and RTS systems
• Female and Male XLR connectors at each port
• Network-friendly OPUS Codec
• Browser-based Core Configuration Manager application
• Networked Control Events for multi-unicast one-to-many routing

Audio
Resolution: 12 bit
Sample Rate: 24KHz
Frequency Response: 100 – 12KHz
CODEC: OPUS

Partyline Audio
Input Gain: -3dB to +3dB
Output Gain: -3dB to +3dB

Network Setting
Bit Rates: 16, 32, 48, 64, 128Kbps
Packet Size: 5, 10, 20, 40, 60ms
Jitter Buffers: 0 – 1000ms

Connectors
Network/LAN: EtherCON/RJ45 (female)
Partyline Audio I/O: 3 Pin XLR (female)

Partyline Output Current
Type: Clear-Com & RTS TW
Local DC Powered: 250mA per pair of PL ports (500mA total)

Power Supply
In-line supply with sleeve locking connector
Input: 100-240V, 50-60Hz, 1.4A MAX
Output: DC 12V, 5A, 60W MAX

Environmental
Operating Temperature: +32°F – +104°F
(0°C – +40°C)
Storage Temperature: -67°F – +158°F
(-55°C – +70°C)
Humidity: 90%, non-condensing

Dimensions
19in W x 1.79in H x 8.8in D
(483mm x 46mm x 224mm)

Weight
4.29lbs (1.95kg)
