Clear-Com MT-701, Isolator for PL interface

Clear-Com MT-701, Isolator for PL interface

The Clear-Com MT-701 is used to reduce hum in Clear-Com analog party line equipment when multiple grounds are present. The Clear-Com MT-701 unit can be used to bridge two Clear-Com analog party-line systems.

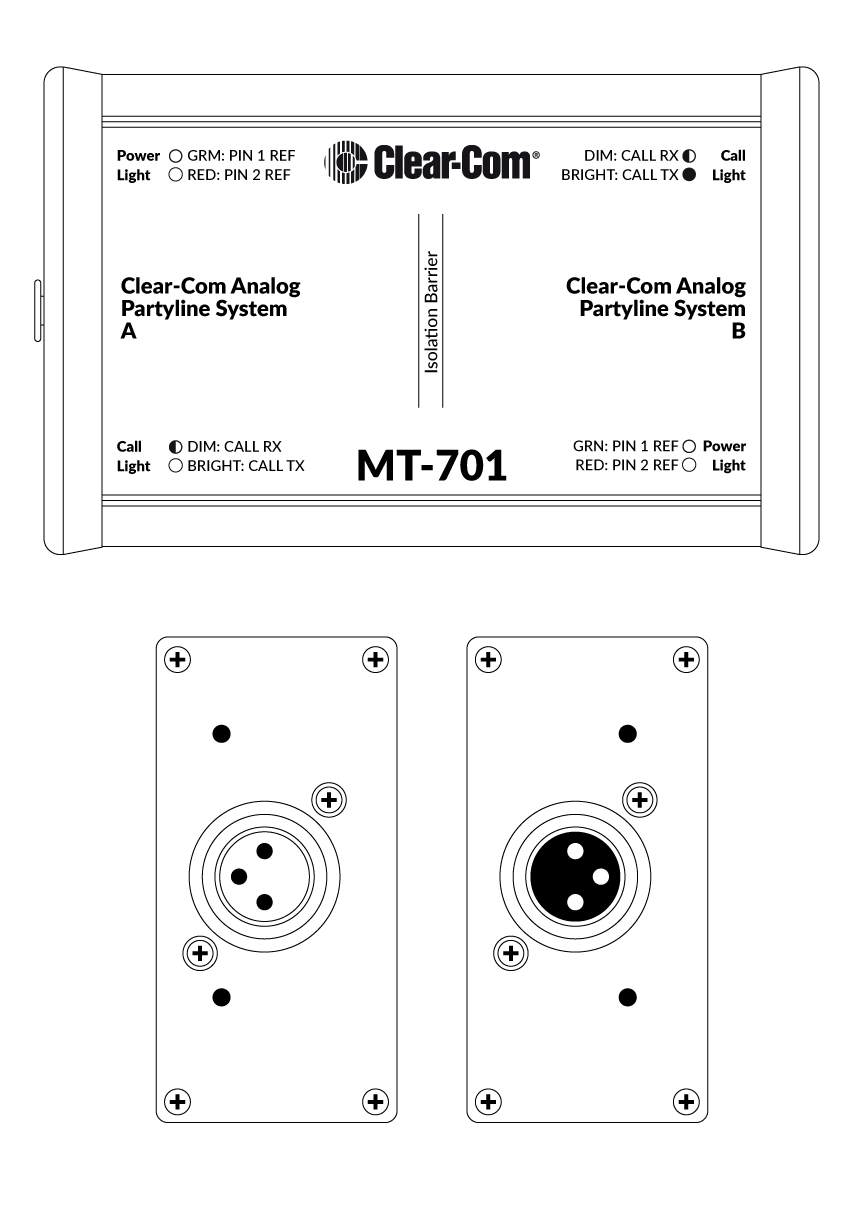

Clear-Com MT-701 Isolator box for party-line intercom systems. Electrically isolates ground, power and signaling between two systems.

Clear-Com MT-701 Product Features

• Isolation Box
• One termination required between connected systems
• Status information LEDs
• Easy installation with standard XLR cables
• High-quality enclosure for professional use

Audio
Pin 2 Impedance: >5000 Ohms

Max Level: +2 dBu

Distortion: <0.2% THD (200Hz – 10 KHz, -10 dBu)

Frequency Response: 100 KHz – 10 KHz, +2 dBu

Nominal Input Level: -18 dBu (Clear-Com)

Power
Power Consumption: <5 mA

Environmental
32°F – +122°F (0°C – +50°C)

Dimensions
1.8 x 3.2 x 5 in (HxWxD)

(46 x 81 x 126 mm)

Weight
9.6 oz (0.27 kg)
